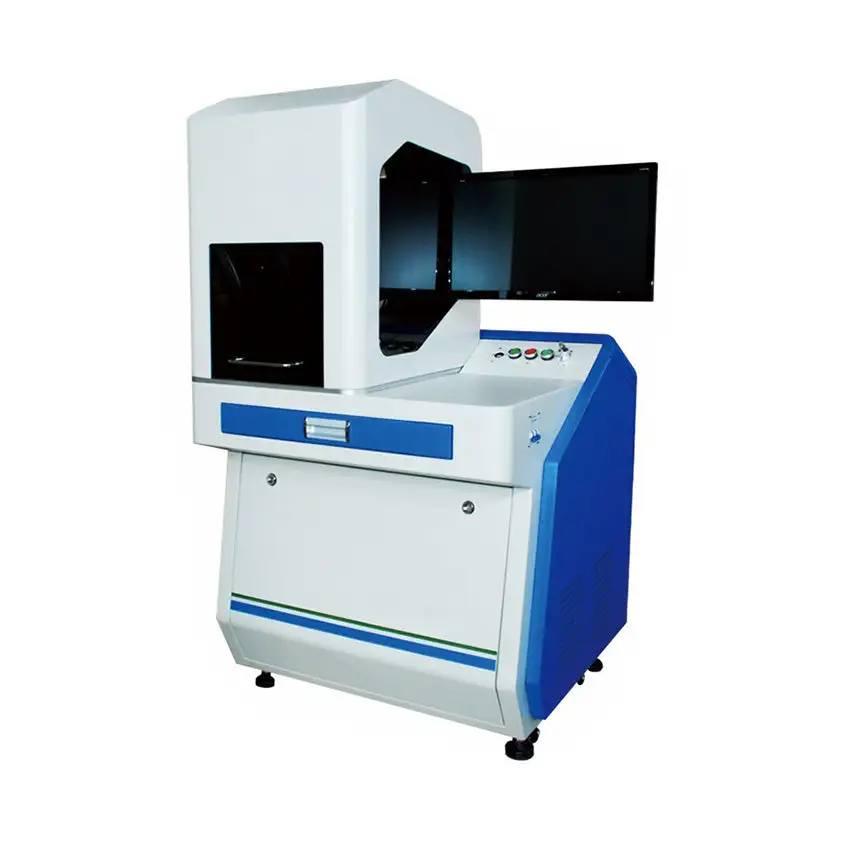

All-In-One Design 30W Fiber Laser Marking Machine, Free Computer with Pre-installed EZCAD Software

All-In-One Design 30W Fiber Laser Marking Machine, Free Computer with Pre-installed EZCAD Software

Includes computer with Pre-install software

The ED-F30 has an all-in-one design, with fiber laser, galvanometer, Accessory axis, control system, industrial PC included and integrated, and provides a working table for users. With this design, the ED-F30 achieves low failure rate, low maintenance cost, and ease of use and maximum productivity.

Plug and Play

We provide ready to use machine package with all necessary parts, include exhaust blower, etc. Just setup and do some job!

High Performance Galvos and Lens

With galvos and lens from world's leading supplier, the ED-F30 can do marking extremely fast with high precision, much faster than X-Y engraving system. By using our high performance galvos, you can engrave small character as little as 0.15mm with no distortion. High quality lens ensure same size of focal point on all corner of working area, help you achieve best processing quality.

Z-Axis and Rotary Unit (optional)

With a mechanical adjustable Z-axis using a hand wheel, you can do marking on work piece of different thickness, abnormal shape, or the one holding on a rotary unit. The rotary unit is included in our standard configuration, no additional cost for it.

Precise Fiber Laser

The ED-F30 is equipped with a maintenance free, air-cooled high-speed fiber laser, with average lifetime of 100,000 hrs. It's available with 30W, for general-purpose use, and 50W, for high demanding conditions. The output window of fiber laser is sealed in metal box assembled with galvo scanner, no maintenance required even in most demanding environments.

Positioning Laser

By using the built-in coaxial positioning laser to pinpoints the border of marking, you can align work piece quickly and easily, reduce the time spent on preparatory work and the number of defective products.

Industrial PC

The ED-F30 is equipped with an optimized and robust industrial PC, to guarantee long-term stable and reliable operation.

Intelligent Marking Software

You can import or make a design, make a hatch, finish layout and sorting, and control machine directly in our software.

Foot Switch

With foot switch, you can keep your hands free, especially in case of processing same marking repeatedly, to improve productivity.

Safety and Reliability

The ED-F30 is designed, engineered and built with safety and reliability considerations in mind. We use electronic parts from world’s leading supplier and build system accommodate to international standards.

Specification

Model

LMM-ED-F30-US

Fiber Laser Source

JPT

Output Power

30W

Laser wavelength

1064nm

Modulation frequency range

20-100kHz

Speed

≤8000mm/s

Precision

±0.003m

Minimum line width

≤1.0mm

Minimum height of characters

0.15mm

Cooling way

Air cooling

Marking range

110x110mm

Software

EZCAD

Rotary device

Yes

Computer System Requirements

Win Seal XP/ Win7/Win8/Win10
