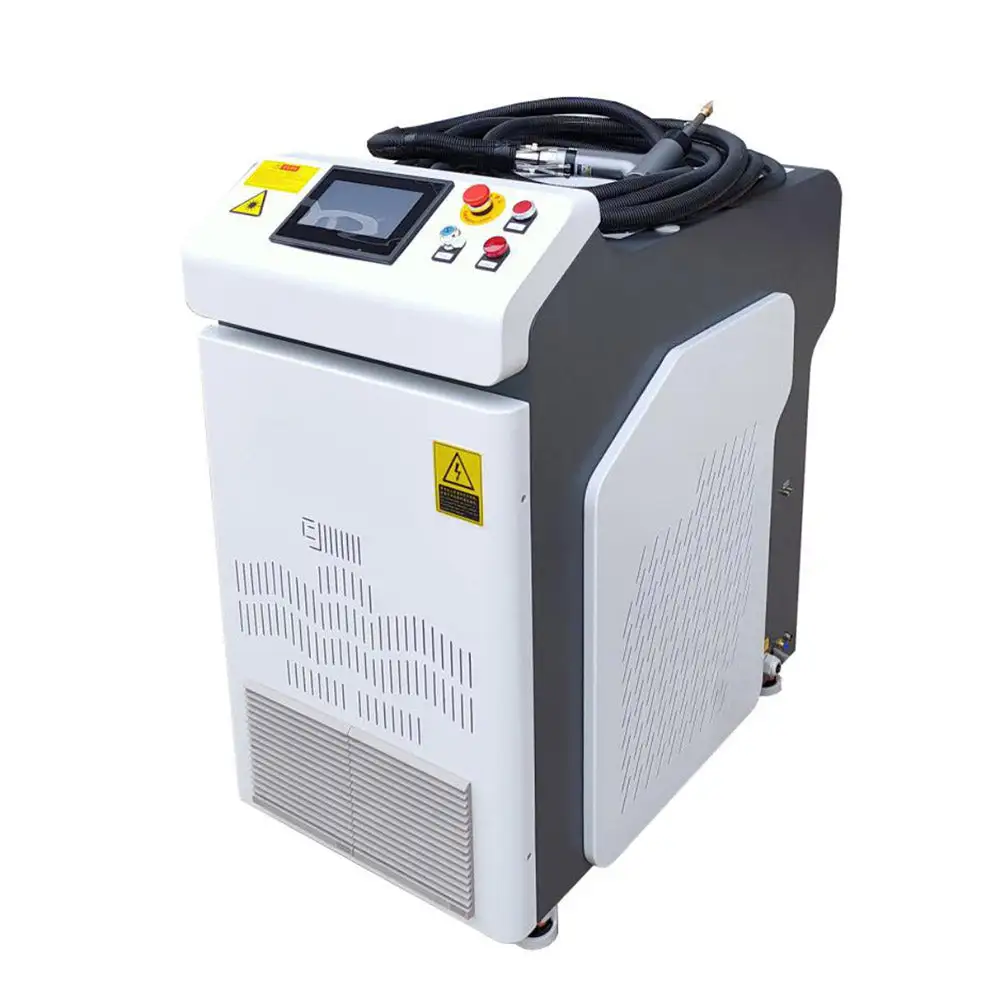

1500W Fiber Laser Pen Welder FDA

Features

￭ Long life fiber laser adopted, high photo-electronic conversion efficiency, low maintenance，easy operation

￭ Compact design and built-in water cooling technology save its footprint and ensure greatest mobility

￭ 1000W and 1500W both available to meet different demand for welding depth and work efficiency

￭ Able to weld 3mm S/S with full penetration or 1mm S/S at high speed

￭ Standard water-cooled welding gun support shield gas; Optional wobble welding gun can realize 4mm large beads welding, which allows wider seam or rough edge of material

￭ Nice and smooth finishing,repeat welding acceptable,slight polishing after welding is suggested but not necessary if Argon gas used when welding S/S

￭ Classic nozzle kit for 3 to more different application scenery

￭ Standard welding head and wobble head both available per application demand

￭ Optional auto wire feeder can build up a better and stronger finishing with not leakage

Specifications

Model No.

LWM-CY-WF1500S

Laser Power

1500W

Power Stability

±1.5%

Laser Wavelength

1080nm fiber laser

Laser Mode

Continuous Mode & Pulsed Mode

Pulse Width

0.2~50ms

Pulse Frequency

1~5000Hz

Welding Spot Diameter

0.2~4.0mm adjustable

Power Consumption

8KW

Power Supply

3-phase 380V ±10%

Locating System

red laser beam

Flexible Worktable

support co-work with robot arm

Fiber Cable Length

10 meters

Welding Gun

Wobble laser gun with QBH fiber connector

Cooling System

Built-in Water Chiller

Host Dimensions

1030*600*1230mm

Net Weight

260KG

Ambient Environment

Temperature 5~35℃,Humidity 5%~85%
