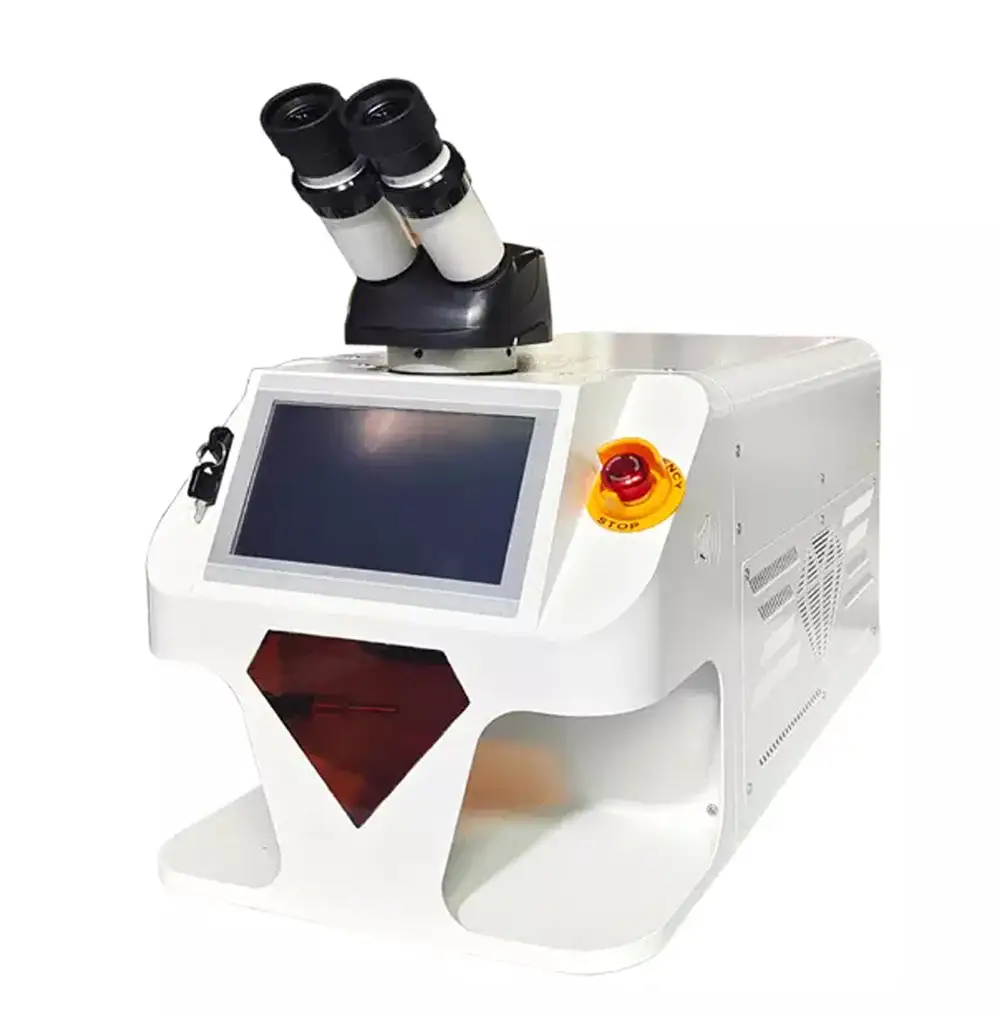

CALCA Portable 100W desktop jewelry laser welding machine

Features:

1.Energy, pulse width, frequency and focus can be adjusted within a wide range to achieve different welding effects

2.Ceramic reflector used in the laser pump chamber is imported, which is corrosion resistant, high temperature resistant, high electrical/optical conversion.

3.World-leading automatic light shielding system is employed to remove harmful lighting on eyes during operation

4.24-hour continuous operation, with stable operating performance

5.Free of maintenance within 10000 hours

6.Personalized design in compliance with ergonomics principles

7.The machine is small and delicate, portable and convenient.

Application:

This machine mainly used to weld gold, silver, platinum, stainless steel material, and other all kinds of jewelries. Also can be used to weld glasses, repair artifical tooth, etc.

Specifications

Machine model

LWM-CY-W100ZM

Laser wavelength

1064nm

Maximum laser power

100W

Maximum laser pulse energy

60J

Pump source

Single lamp

Pulse Width

0.1-15ms

Pulse frequency

1-10Hz Adjustable

Aiming and positioning

Microscope + camera system

Adapt to welding

Welding and repairing all kinds of jewelry

Host power consumption

≤2KW

Electricity demand

110V±5% , 60HZ

Cooling method

Air cooled

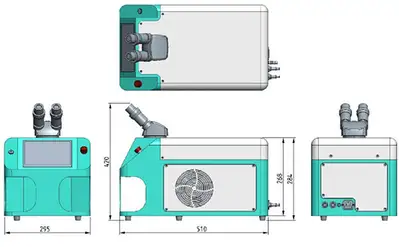

Mainframe Dimensions (length * width* height)

510×295×420mm
