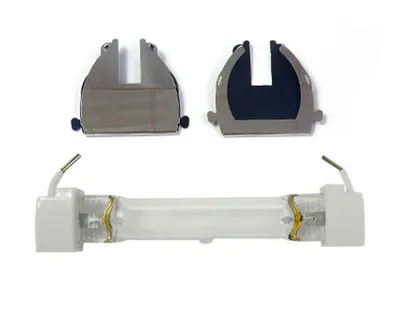

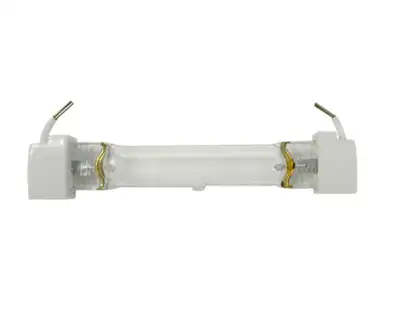

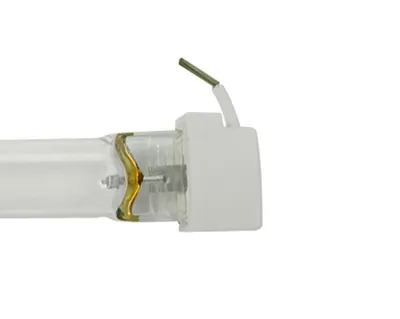

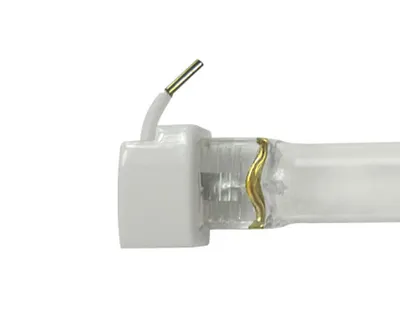

UV Bulb SubZero 085D kit for Dyss Printers

Description

This original manufactured UV Bulb SubZero 085D kit is suitable for Dyss printers. This is the original Dyss bulb kit including the . This UV lamp is also available in a cassette for easy installation.

Designed specifically for inkjet curing applications, the world leading miniature SubZero UV curing system is specifically designed for moving head inkjet printers, the shutter allows the UV exposure to be closed off as the lamp unit moves the media, greatly reducing the risk of reflected UV light causing damage to the expensive printheads.

Detailed research and lengthy cycle testing has enabled a design which offers exceptional service life, eliminating unnecessary downtime and the replacement of worn components. With a total length of 135.73mm, an arc length of 85mm (3.4ins) and power of 100 W/cm2, the SubZero 085H system is ideally suited to medium sized printer applications using 20mm inkjet head. This advanced lamp system represents the most effective, lightweight, high output, miniature UV emitter on the market today.

SubZero Standard Features

• Ultra compact “footprint”

• Ultra light weight

• High intensity reflector system

• Quartz Filter

• Quick change Cassette

• Rapid Warm up and Cool down

• Integrated air-cooling

• High Flex cable up to 15m

• 500 hours Warranty

• 6 months shelf life

SubZero 055 / 085 Compliances

CE/UL 60950-1

ISO CE CB EN60950-1

CE EN 60204

EMC EN 55015

EMC EN 61000

Switch-mode Electronic Power Supply

SubZero 085 204 – 230V 50 / 60Hz

Printer compatibility

DYSS Apollo GF2616-08F

DYSS Apollo GF2616-10FFW

DYSS Apollo GF2616-10FRW

DYSS Apollo GF2616-12F

DYSS Apollo GF2616-12S

DYSS Apollo GF2616-14SFW

DYSS Apollo GF2616-14SRW

DYSS Apollo GF2616-16F

DYSS Apollo GF2616-16SFWFV

DYSS Apollo GF2616-16SRWRV

DYSS Apollo GF2630-16SFWW

DYSS Apollo GF2630-20FMW

DYSS Apollo GH1600-08F

DYSS Apollo GH1600-08SF

DYSS Apollo GH1600-08SR

DYSS Apollo GH1600-10FM

DYSS Apollo GH1600-12S

DYSS Apollo GH1600-12SFWFV

DYSS Apollo GH2200-08F

DYSS Apollo GH2200-08SF

DYSS Apollo GH2200-08SR

DYSS Apollo GH2200-10FM

DYSS Apollo GH2200-12S

DYSS Apollo GH2200-16SFWFV

DYSS Apollo GH2600-08F

DYSS Apollo GH2600-08SF

DYSS Apollo GH2600-08SR

DYSS Apollo GH2600-10FM

DYSS Apollo GH2600-12S

DYSS Apollo GH2600-12SFWFV

DYSS Apollo PTP18/3202-KC

DYSS Apollo PTP18/3204-KC

DYSS Apollo PTP18/3206-KC

DYSS Apollo PTP1804-KL

DYSS Apollo PTP1806-KL

DYSS Apollo PTP1808-KL

DYSS Apollo PTP3204-KL

DYSS Apollo PTP3204-KM

DYSS Apollo PTP3206-KL

DYSS Apollo PTP3208-KL

DYSS Apollo PZ 3208-KX

DYSS Apollo PZ3204-KX

DYSS Apollo PZ3206-KX

DYSS Apollo R160

DYSS Apollo R220

DYSS Apollo R260

DYSS Apollo UV-RF2200
