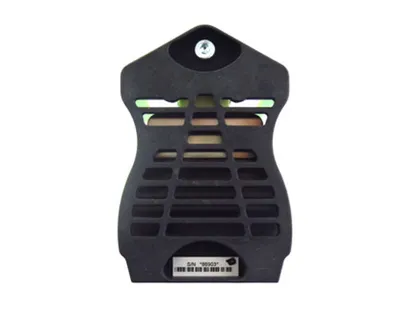

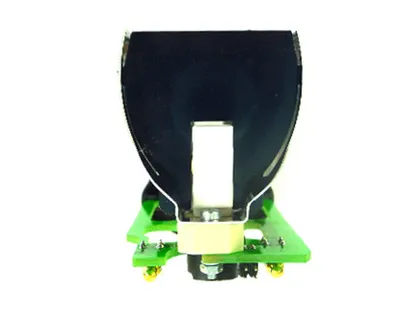

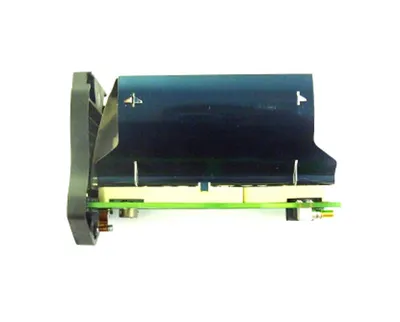

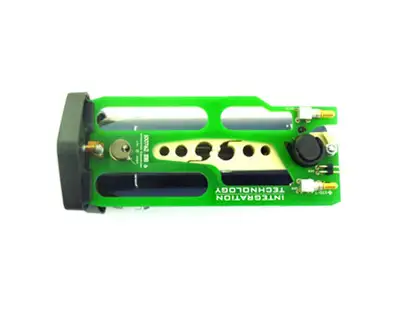

SubZero 055 Cassette H for Mutoh Zephyr 65 Printers - KY-09009

Description

This SubZero 055 Cassette H is suitable for Mutoh Zephyr 65 printers. This is the original Mutoh part (number KY-09009).

Designed specifically for inkjet curing applications, the world leading miniature SubZero UV curing system is specifically designed for moving head inkjet printers, the shutter allows the UV exposure to be closed off as the lamp unit moves the media, greatly reducing the risk of reflected UV light causing damage to the expensive printheads.

With arc lengths of 55mm (2.2ins), the SubZero 055 systems are ideally suited to medium sized printer/plotters and marking and encoding applications using 20mm inkjet head. This advanced lamp system represents the most effective, lightweight, high output, miniature UV emitter on the market today.

SubZero Standard Features

- Ultra compact “footprint”

- Ultra light weight

- High intensity reflector system

- Quartz Filter

- Quick change Cassette

- Rapid Warm up and Cool down

- Integrated air-cooling

- High Flex cable up to 15m

- 500 hours coverage under normal conditions

- 6 months shelf life

Specifications

- Arc Length: 55mm (2.2”)

- Power: 100*W/cm²

* measured at 5mm from the front of lamp head

SubZero 055 Compliances

CE/UL 60950-1

ISO CE CB EN60950-1

CE EN 60204

EMC EN 55015

EMC EN 61000

Printer compatibility: Mutoh Zephyr 65
