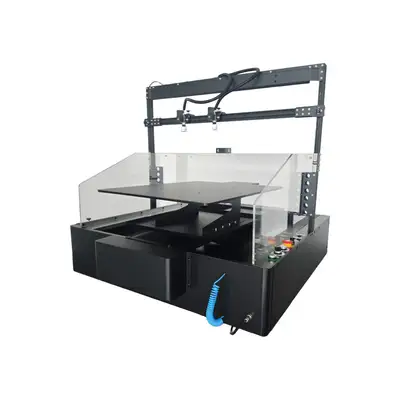

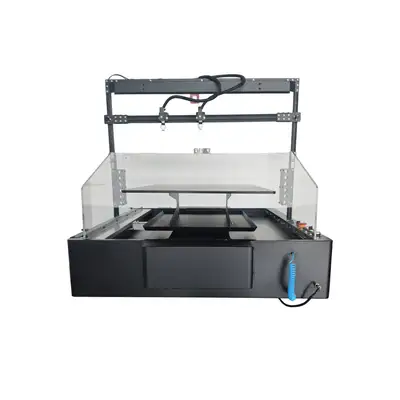

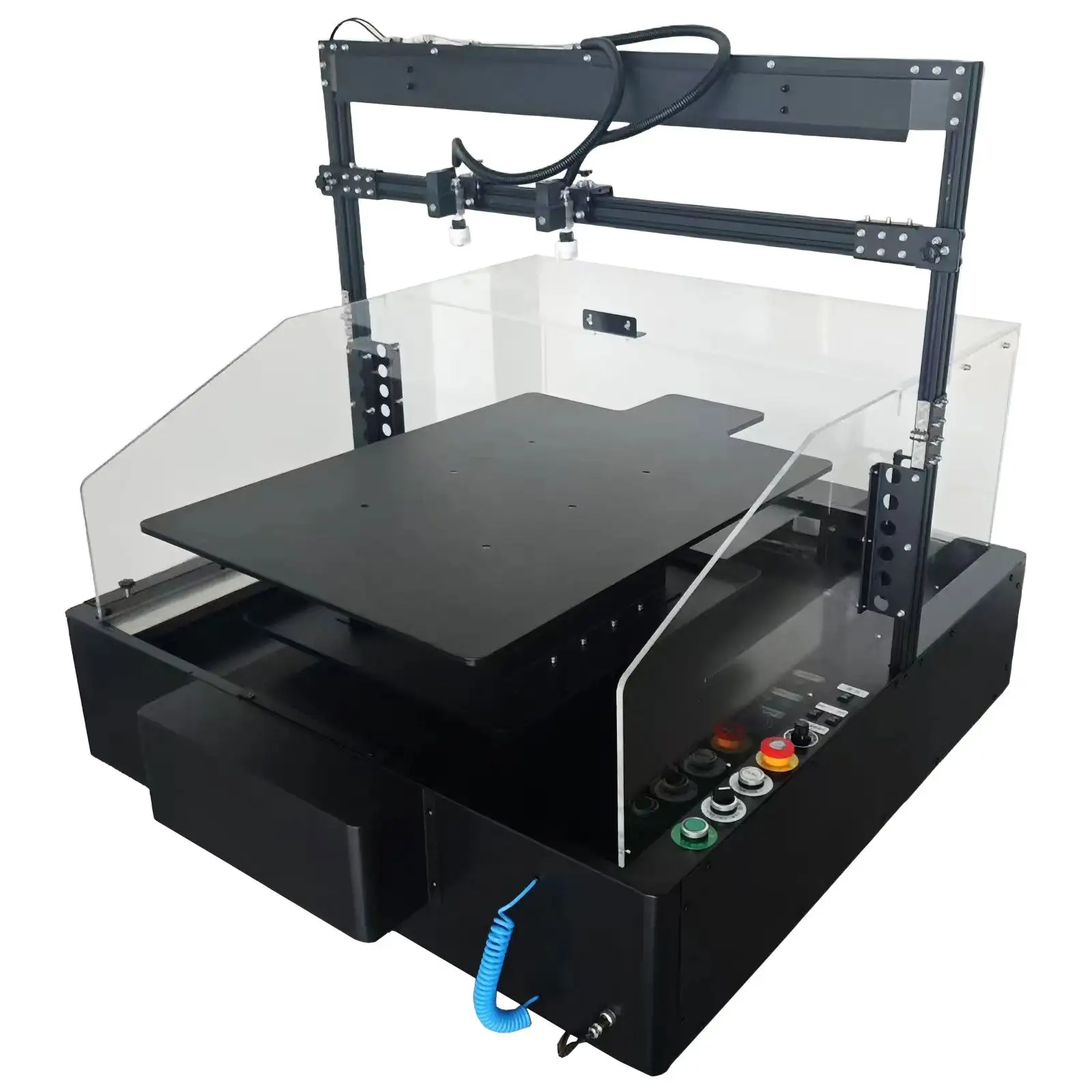

6090 DTG Automatic Pre-Treat Sprayer

Description

The 6090 Sprayer revolutionizes garment pre-treatment with its heavy-duty frame, easy-load open rail design, and advanced spray system.

If you want your DTG prints to look great, wash better, and have a softer feel, without breaking the bank, the 6090 Pre-Treat Sprayer is right for you.

Features

1. Foot pedal switch for smooth operation.

2. Dual nozzle (options), adapt to different production needs.

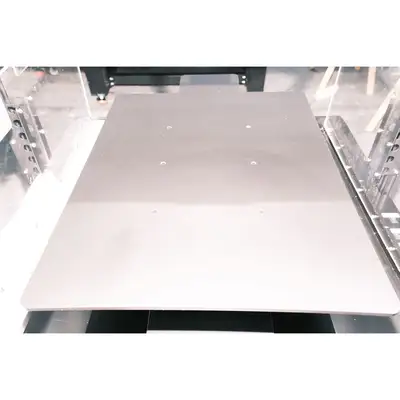

3. High-speed platen movement maximizes production efficiency.

4. Buffered movement reduces noise and extends motor lifespan.

5. Dual-filtered pretreatment liquid for effective impurity removal.

6. Electrical components housed in a separate compartment to prevent moisture ingress, prolonging service life.

7. Waterproof guide rails prevent rust-related issues.

8. Dedicated cleaning pump for easier maintenance of the spray chamber.

9. Three-sided acrylic panels minimize water mist splashing.

Specifications

Nozzle

Dual nozzle (8002vs and 9502vs)

Max sprayed area

16" x 21.2" (600mm x 900mm)

Power supply

AC 220 / 110v , 50 / 60HZ

Current

2.05A / 4.1A, 450W

Dimensions

50" x 42" x 41" (1270mm x 1065mm x 1045mm)

Weight

227 lbs (103 kg)

Package dimension

53" x 45" x 35.4" (1340mm x 1140mm x 900mm)

Gross weight

408 lbs (185Kgs)
