4 Color 2 Station Silk Screen Printing Press Screen Printing Full Kit Equipment (SPK-RD-KIT-017)

4 Color 2 Station Silk Screen Printing Press Screen Printing Full Kit Equipment

4-2 Screen Printing Package

Screen printing is arguably most versatile in printing, almost everything can be used as substrate. Our company provides this 4 color 2 station screen printing package with items needed by a small screen printing workshop. As to single machine's detailed description, video, clients can find them in our store.

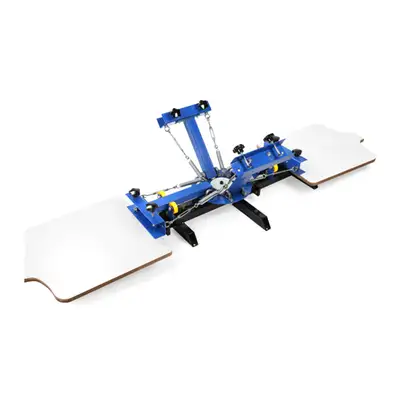

4 Color 2 Station Silk Screen Printing Machine

Specifications:

1. Color: 4 color

2. Station: 2 station

3. Machine size: 32*7.9*75" (82*20*190cm)

4. Platen size: 21.7*17.7" (55*45cm)

5. Gross Weight: 80Lb (36kg)

6. Package sizes: 23.6"*23"*17.8"(60*59*45cm)

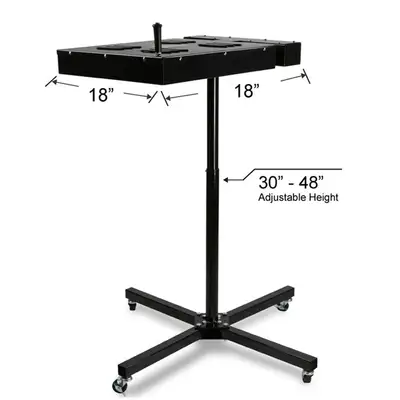

18" x 18" Silk Screen 45cm x 45cm Printing Flash Dryer

Parameters:

1. Heating Area: 18" x 18"

2. Base Dimensions: 38" x 38"

3. Top Dimensions: 29" x 19"

4. Input Power: 110V/60Hz or 220V/50Hz

5. Max Temp: 200 degrees Celsius

6. Suggest Temp Range: 140-180 degrees Celsius

7. Average Current Draw: 13 Amps

8. Maximum Current Draw: 16.5 Amps

9. Average Power Usage: 1350 Watts

10. Maximum Power Usage: 2000 Watts

11. Minimum Height: 30"

12. Maximum Height: 48"

13. Gross Weight: 65 lbs

14. Net Weight: 55 lbs

15. Packing Size: 83 x 28 x 59cm

16. Assembled Dimensions: 38" x 38" x 48"

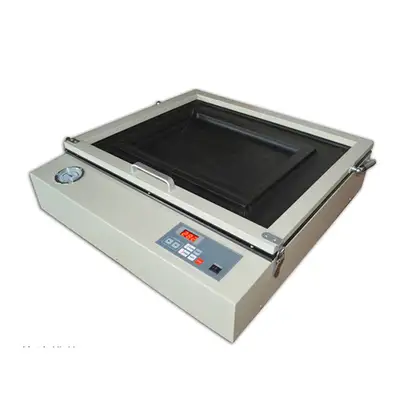

20" x 24" Vacuum UV Exposure Unit

Feature:

Power: 220V,50HZ/110V,60HZ,250W

Max.working area: 500*600mm( 20"*24")

Light source: UV light

Lamp power*amount: 20W*8pcs

Digital display of exposure time setting

Materials:

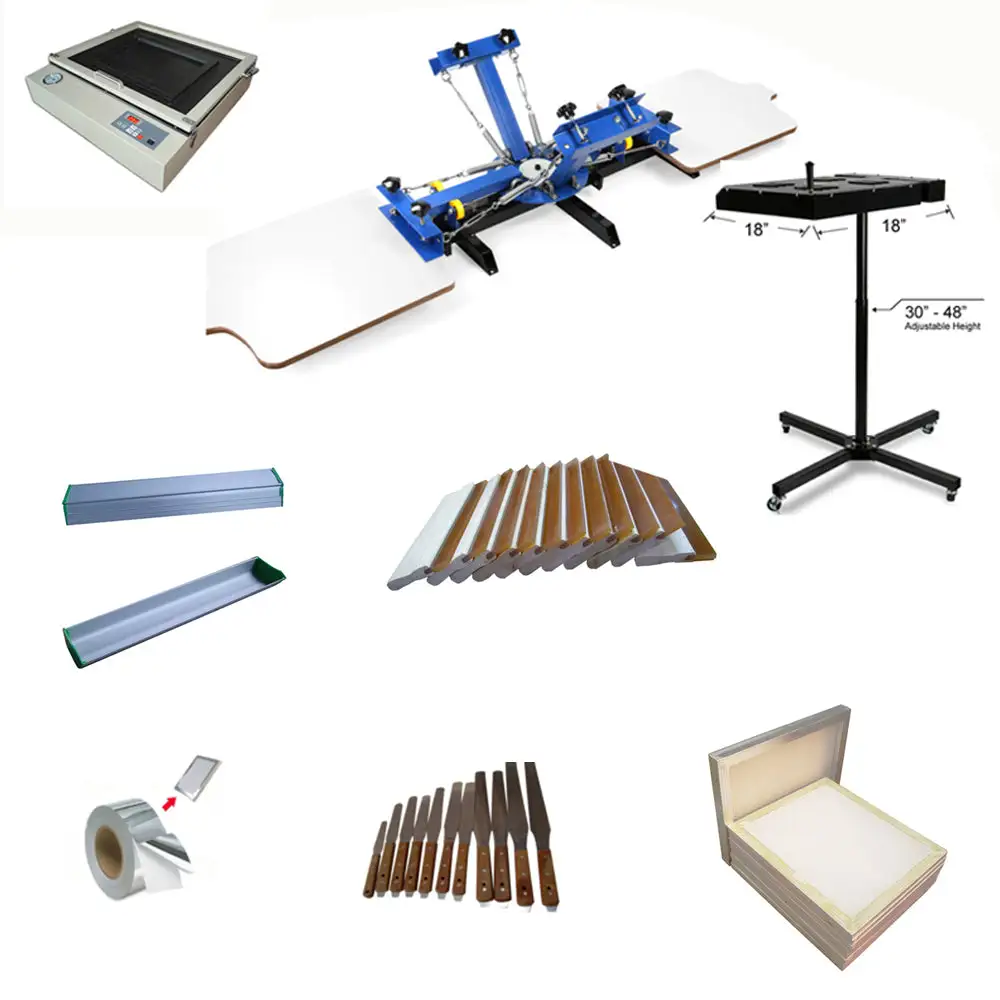

Package included:　

1) 1 Four color Two station screen press

2) 1 Flash dryer

3) 1 UV exposure unit

4) 1 9.5"Emulsion Scoop Coater

5) 1 14"Emulsion scoop coater

6) 2 20x24inch Aluminum Screen with 110 White Mesh

7) 2 23 x 31inch Aluminum Frame Printing Screens With 160 mesh

8) 1 Aluminum Foil Tape

9) 4 13"/33cm Squeegees

10) 4 18"/46cm Squeegee

11) 4 1#Stainless Steel Spatulas

Package:

1. Packing size:

1#: 94x57x27cm

2#: 83x28x59cm

3#: 84x83x25cm

4#: 50x60x20cm

2. Gross weight: 117 kg
