CWT 1747 Classic 5’8″ x 15′ 5″

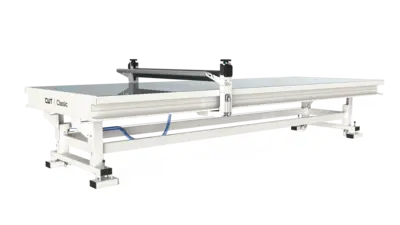

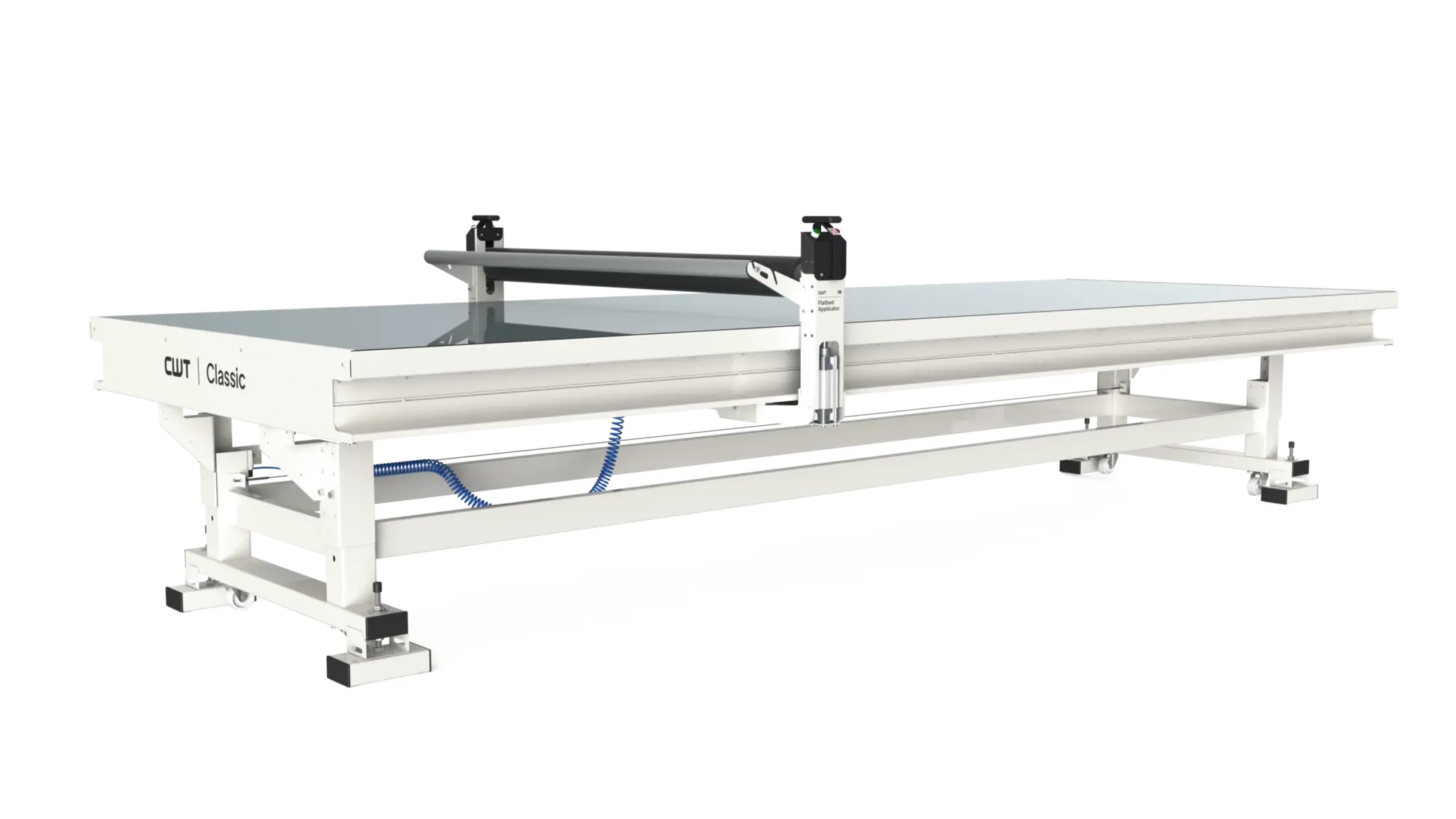

CWT 1747 Classic Flatbed Applicator
The industry favourite for everyday sign production The CWT Classic Series is our original, proven flatbed applicator – a trusted choice for sign makers, digital printers, car wrappers and road sign manufacturers. Built for steady, everyday production, it delivers reliable performance and a smooth workflow at a low to mid-range budget. With a selectable pre-set working height, an optional LED light table and flat-packed delivery for easy installation, the Classic Series offers the dependable, ergonomic and user-focused design that has made it an industry favourite for busy print and sign shops.

CWT 1747 Classic Brochure
CWT 1747 Classic Flatbed Applicator
Our most popular and original classic model has become an industry favorite among signmakers and digital printers. Classic series is now upgraded to feature a wider working width. It is a robust production machine built for uninterrupted long shifts, equipped with all the essential features, high production capacity, and a worktable that accommodates a wide range of standard substrates and media widths available on the market.
Overview
Operator Access
The CWT 1747 offers easy accessibility which allows for easy handling of materials and effortless maneuverability, thereby streamlining production processes and minimizing downtime. This ensures the operators can work with precision and confidence, leading to superior output quality.
Stablaized Gantry
The gantry’s robust construction enables consistent and accurate application, even at high speeds. This reliability ensures your production runs smoothly, reducing the risk of errors or rework, and ultimately boosting your operational efficiency and customer satisfaction.
Ergonomics
The CWT 1700 Series incorporates an ergonomic design to significantly reduces strain on operators’ backs, enhancing their productivity and reducing the risk of work-related injuries.
Modular Build Design
The modular build design of the CWT 1700 Series offers exceptional versatility and access to easy access to hard-to-reach areas, simplifying maintenance and reducing downtime.
Highest Swedish Quality and Certification
The CWT 1700 Series is designed and built with with Swedish quality standards. Each machine undergoes meticulous quality control measures to ensure its durability and performance. The series is ISO certified, further reinforcing its commitment to excellence and compliance with international standards.
Features/Options
Roll holder for glide beam included
Side pockets included
Casters included
CWT light, illuminated table top optional
CWT lift, electronic work height adjustment optional
CWT cut, long side optional
CWT cut, short side optional
Silent compressor included
Compressor shelf included
Cutter bench for optional
Roll cradle 1400, roll holder for table top optional
Lower roll holder optional
Table Specifications
Table Length: 4720mm (15ft. 5 in.)
Table Width: 1720mm (5ft. 8in.)
Length Of Working Area: 4270mm (14ft.)
Width Of Working Area/Roller Width: 1650mm (5ft. 5in.)
Overall Width: 2045mm (6ft. 9in.)
Max. Thickness Of Substrate: 0-70mm (0-2.7in.)
Work Height: 750-900mm (2k 5in. -26. 11 In.)
Work Height Adjustment: Manual – 4 Steps Of 50mm (2in.)
Bed Surface: Safety Glass + Cutting Mat
