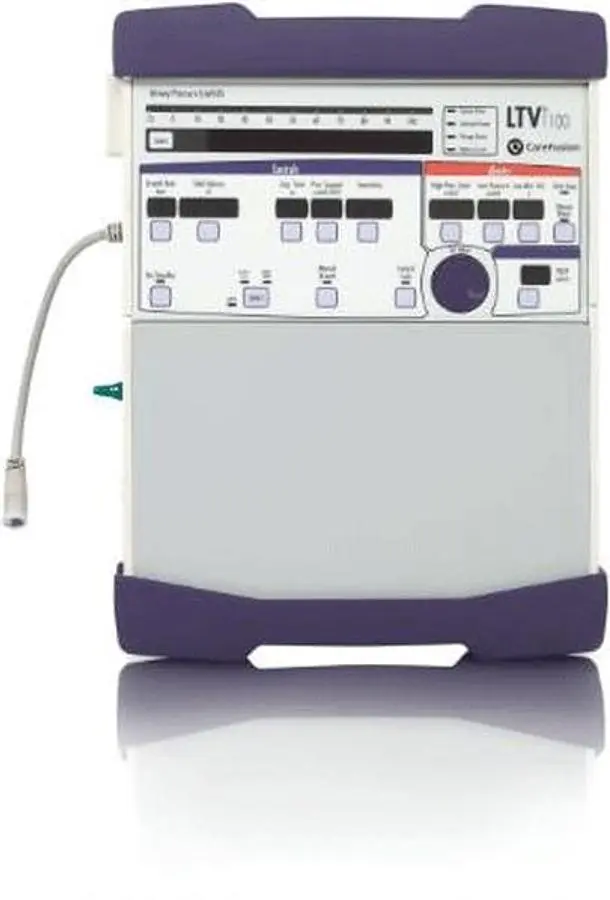

USED ZOLL MEDICAL LTV 1100

The LTV 1100 ventilator is a lightweight, high performance ventilator that is designed to provide the maximum functionality in the smallest possible package. The LTV 1100 ventilator provides the
following features:

Ventilation in a small and lightweight package (10.5” x 13.5” x 3.25”, 14.5 lbs).
Turbine technology allows the ventilator to operate without an external compressed gas source.
CPAP, SIMV, Control, Assist/Control and Apnea Backup ventilation modes.
NPPV mode ventilation, providing an alarm package suitable for mask ventilation of patients that do not require life support ventilation.
Volume Control and Pressure Support ventilation.
Spontaneous Breathing Trial (SBT) to assist with weaning and discontinuation of ventilatory support.
Variable alarm settings including High Peak Pressure, Low Peak Pressure, Low Minute Volume (VE), Apnea, High Breath Rate, High PEEP and Low PEEP.
Low-Pressure Oxygen Bleed-in
Lockable front panel controls.
Monitors for Breath Rate (f), I:E Ratio, MAP, Minute Ventilation (VE)5, PEEP, PIP and Tidal Volume (Vte).
Real-time patient circuit pressure display with Peak Inspiratory Pressure indicator.
Variable termination conditions for Pressure Support breaths, including maximum inspiratory time termination and percentage of peak flow.
Leak Compensation to improve triggering when a circuit leak is present.
Single or dual tone alarm output capabilities when used with a nurse call system.
Operation from a variety of power sources including AC power, internal battery and external DC power sources.
Flow Sensing and Non-Flow Sensing configuration modes allow for a flow sensing patient circuit or a non-flow sensing patient circuit to be used.
