USED 1985 South Bend TURN-NADO, 3-Jaw, Taper, Acu-Rite DRO,Steady, 10HP
Overview
20" Swing 132" Centers South Bend TURN-NADO, 3-Jaw, Taper, Acu-Rite DRO,Steady, 10HP ENGINE LATHE, Threading, Taper, Acu-Rite DRO,3-Jaw,Steady, 10 HP
Specs

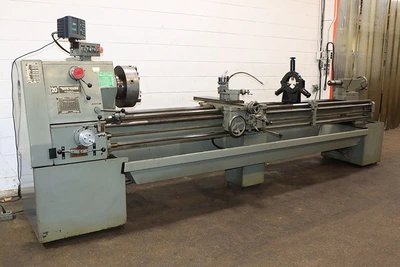

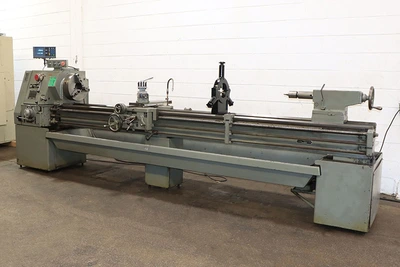

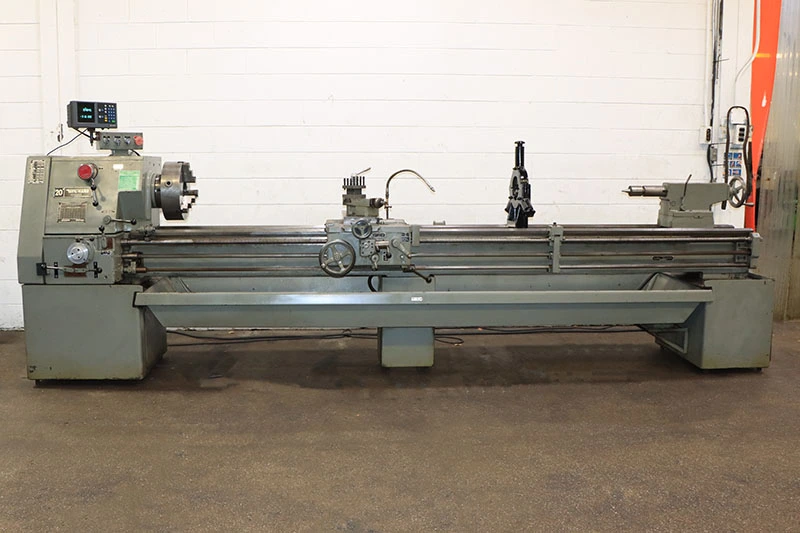

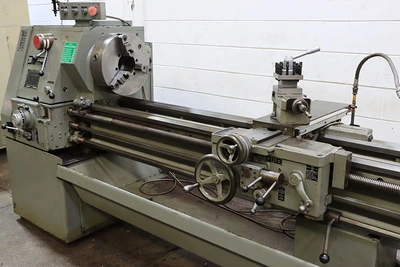

20" x 132" SOUTH BEND ENGINE LATHE
MODEL: 20" TURN-NADO, S/N: GL3268, MFG: 1985
SPECIFICATIONS:
SWING OVER BED WAYS ................. 20-1/8"
SWING OVER CROSS SLIDE .............. 13-1/2"
DISTANCE BETWEEN CENTERS ............ 132"
HOLE THRU SPINDLE ................... 3-5/32"
WIDTH OF BED ........................ 13"
LENGTH OF BED ....................... 180"
SPINDLE NOSE ........................ D1-8" CAMLOCK
SPINDLE SPEED RANGE (18) ............ 30 - 1580 RPM
LONGITUDINAL FEED RANGE (60) ........ .0021" - .1242" IPR
CROSS FEED RANGE (60) ............... .0011" - .0678" IPR
INCH THREADING RANGE (60) ........... 1-3/8" - 160 TPI
TAILSTOCK SPINDLE TRAVEL ............ 7"
TAILSTOCK SPINDLE TAPER ............. #5MT
APPROXIMATE FLOOR SPACE ............. 200"L x 48"W x 60"H
APPROX WEIGHT ....................... 7,500 LBS
EQUIPPED WITH:
INCH THREADING
TAPER TURNING ATTACHMENT
ACU-RITE TWO AXIS DIGITAL READOUT

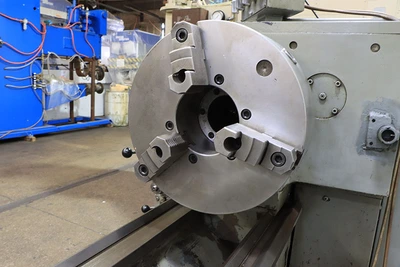

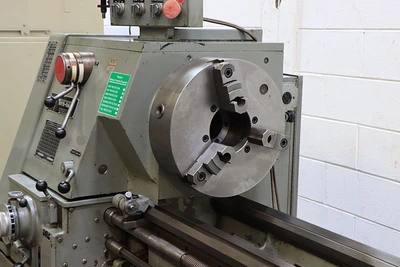

14-3/4" 3-JAW CHUCK

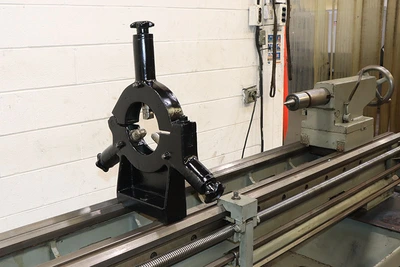

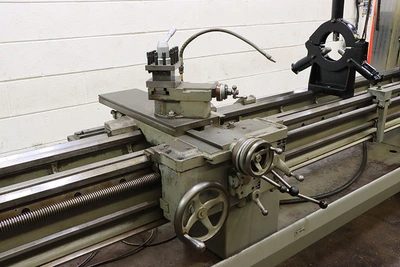

STEADY REST

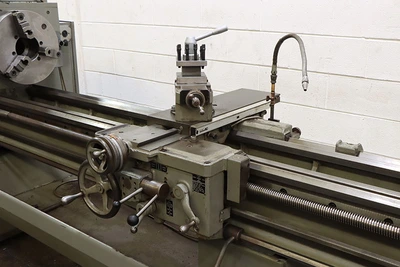

FOURWAY TOOLPOST
THREAD DIAL INDICATOR
MICROMETER CARRIAGE STOP
DRILL CHUCK & LIVE CENTER FOR TAILSTOCK

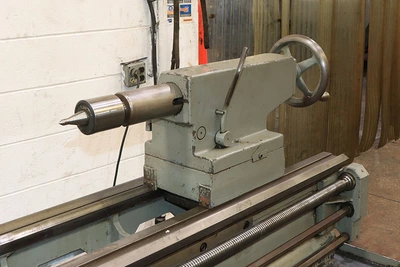

TAILSTOCK
COOLANT SYSTEM WITH REMOVEABLE CHIP PAN
HARDENED & GROUND BED WAYS
10 HORSE POWER MAIN MOTOR
INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
FOR MORE INFORMATION: Call David at 973-497-7570
