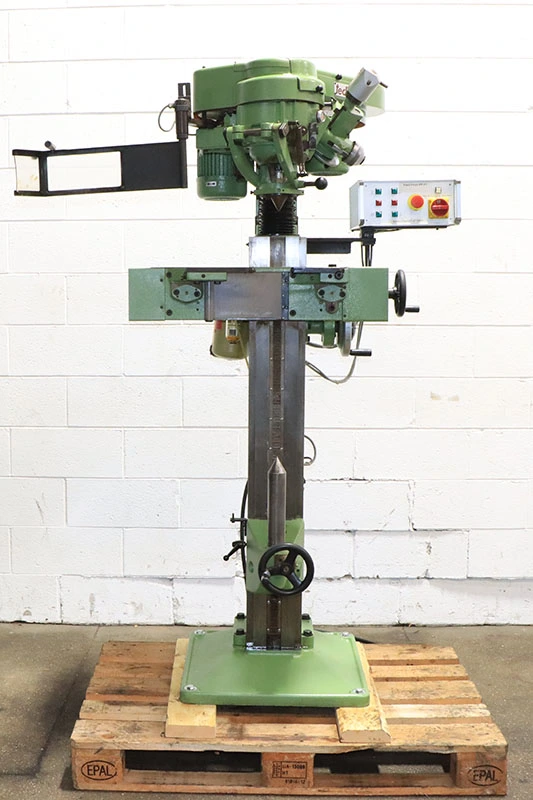

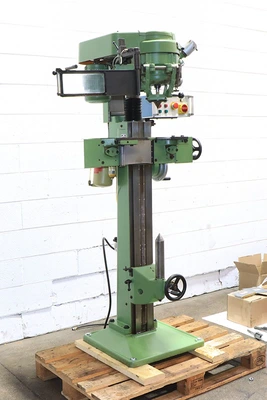

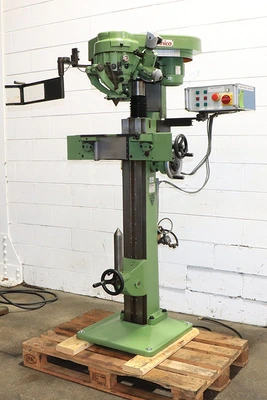

USED 1990 Technica ZSM-5100, MADE IN SWITZERLAND,

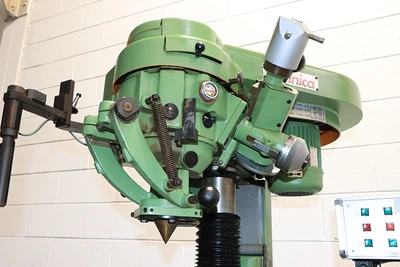

       Technica Center Hole Grinder

          (Made in Switzerland)

     *** From "GM Research Laboratories ***

   Model:  ZSM-5100-810    S/N: J20746-90

                   New: 1990

SPECIFICATIONS:

Workpiece Length .............. 1.97" to 31.9"

                                 (50 - 810mm)

Max. Workpiece Weight ......... 264 Lbs.

                                (120kg)

Workpiece Diameter ............ 0.315" to 4.92"

Cone Hole Angle ............... 60°

Dia. of Center Holes Ground ... 0.079" to 1.97"

                                (2 - 50 mm)

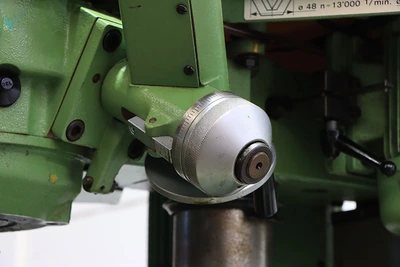

Grinding Spindle Speeds,

 Spindle Speeds Available ..... 13,000, 22,500

                                 and 45,000 RPM

Hollow Quill Speed

 (Planetary Axis) ............. 400 RPM

Vertical Travel of

 Grinding Head ................ 6.3"

                                (160mm)

Reciprocating Travel of

 Grinding Cone ................ 0.030" to .197"

                                (0.5 - 5mm)

Approx. Dims ................22" x 22" x 72.85"H

Approximate Weight ............ 1,300 lbs

EQUIPPED WITH:

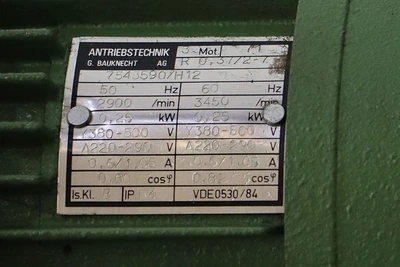

Grinding Spindle Motor

 - 0.25 KW (1/3 H.P.), 3,450 RPM,

 - 3 Phase, 60 Cycle, 220-290V/380-500V

Quill Drive Motor

 - 0.11 KW (1/4 H.P.)

 - 3 Phase, 60 Cycle, 220-290V/380-500V

Complete Electrical Controls

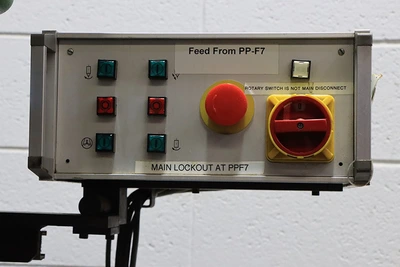

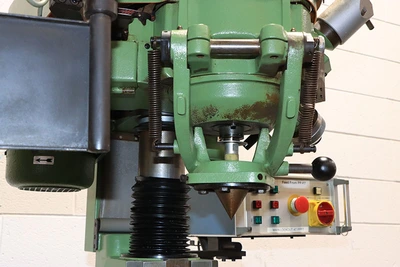

Push Button Control Console

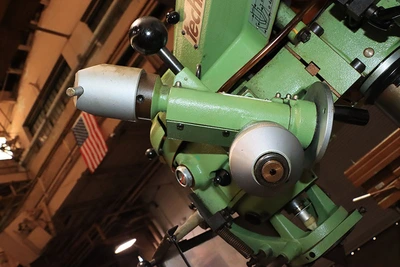

Swing Down Grinding Cone Dressing Device.

Rapid And Fine Handwheel Adjustment Of Work.

Adjustable Tailstock Center.

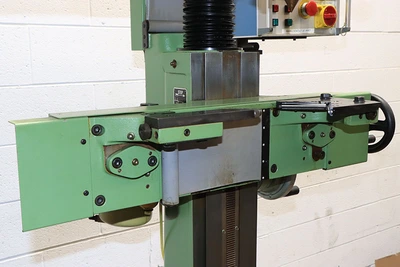

Universal Precision Vise,

 Clamping Range fro 32mm to 150mm.

"Norgren" "Micro-Fog" by Oil-Mist Lubrication

 of the Grinding Spindle

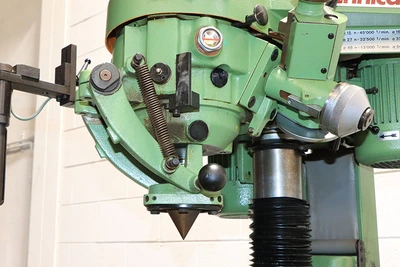

Swing Down Upper Center

Fine Adjustment

*** From "GM Research Laboratories ***

      ** Entirely Original **

**  Mint Condition & Appearance **

** Inspect Under Power in our Harrison, NJ Warehouse **

FOR MORE INFORMATION: Call Andy at 973-497-7600
