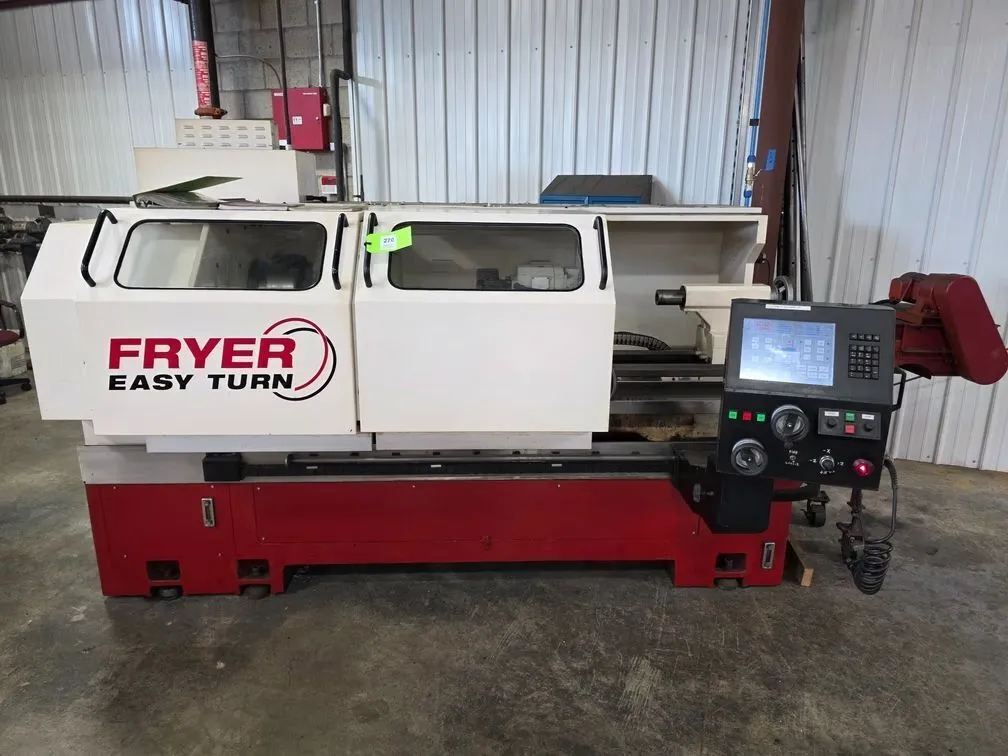

USED 2008 FRYER ET-21
Overview
21” X 60” FRYER “ET-21” EASY TURN COMBINATION CNC MANUAL TOOLMAKERS LATHE - Touch 2000i CNC Control - 8-Position Turret - 3.5” Spindle Bore - 12.75” 3-Jaw Chuck - Tailstock - Chip Conveyor
Specs
21" x 60" FRYER “EASY TURN” COMBINATION CNC MANUAL TOOLMAKERS LATHE
New 2008, Serial No 21148, Model ET-21, Series EASY TURN
EQUIPPED WITH:
Touch 2000i CNC Controls w/Teach
8-Station Disk Type Turret
12.75" 3-Jaw Chuck w/Jaws
Camlock D1-8 Spindle Nose
Tailstock - Chip Conveyor
Hardened And Ground Ways
Double Nut Ball Screws
2-Speed Gearbox
CATALOG SPECIFICATIONS:
Spindle Bore Diameter 3.15" 80 MM
Swing Over Bed 21" 530 MM
Swing Over Cross-Slide 12" 300 MM
Distance Between Centers 60" 1525 MM
X-Axis Travel, Maximum 12" 380 MM
Z-Axis Travel, Maximum 57" 1450 MM
Spindle Speeds, Range 20 to 2000 RPM
Rapid Traverse, X-Axis' 400 IPM 10 MPM
Rapid Traverse, Z-Axis' 400 IPM 10 MPM
Tailstock Taper 4 MT
Motor Rating 15 HP 12 KW
Weight Approximately 7500 LBS 300 KG
F.O.B OUR WAREHOUSE
