Used

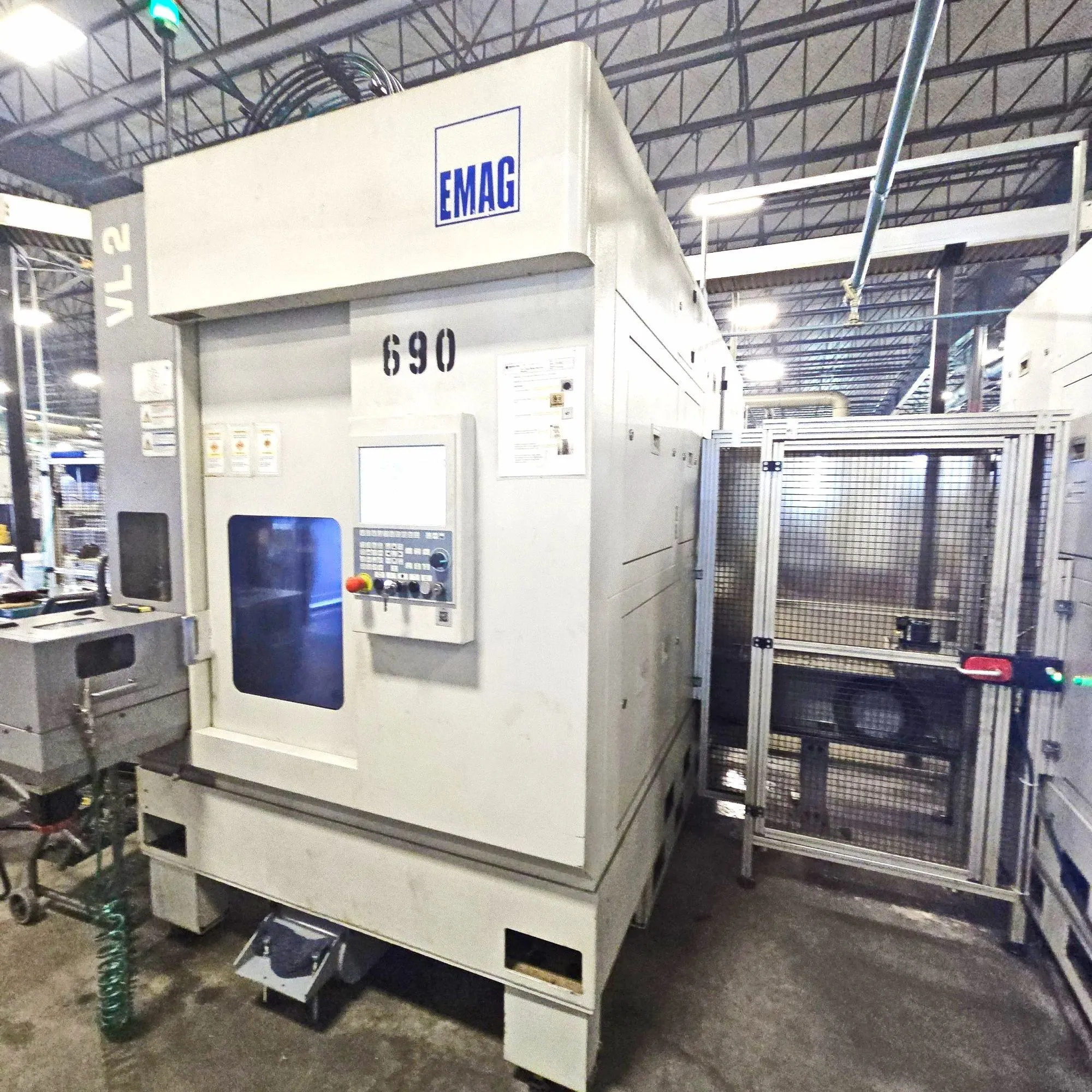

USED 2017 EMAG VL 2

Michigan, United States
Asking Price
USD $69,500.00
4 available
283Listings|157Followers
Overview
CNC Lathes

2017 Emag VL 2 CNC Inverted Vertical Turning Center, Live Tooling, High-Pressure TSC, C-Axis, Auto Pick-Up Loading System, Integrated Parts Conveyor, Hydraulic Collet Chuck, Chip Conveyor, Additional Tooling And Holders

Specs
Swing
7.87"
199.9 mm
# Axis
3
3
Chuck Size
6.29"
159.77 mm
Bearing Inside Diameter
3.14"
79.756 mm
Power
36.2 hp
27 kW
Max RPM
6,000 RPM
6,000 RPM
Max RPM (Live Tooling)
6,000 RPM
6,000 RPM
Spindle Nose
DIN-55 026
DIN-55 026
X-Axis Travel
14.96"
379.98 mm
Z-Axis Travel
15.75"
400.05 mm
C-Axis
360°
360°
Tailstock
No
No
Live Tooling
Yes
Yes
Sub Spindle
No
No
Rapid Traverse (X/Z)
1,181 in/min.
1,181 in/min.
Turret Capacity
12 (Driven)
12 (Driven)
Control
CNC (Fanuc 31iTB)
CNC (Fanuc 31iTB)
Dimensions
100" X 63" X 103" (Approx.)
100" X 63" X 103" (Approx.)
Weight
12,125 lb (Approx.)
12,125 lb (Approx.)

Available individually, as complete 2-machine automated cells with integrated turnaround stations, or as a 4-machine package.

Equipped With

Live tooling
High-pressure through spindle coolant (1000 psi)
C-axis
Auto pick-up loading system
Integrated parts conveyor
Hydraulic collet chuck
Chip conveyor
Additional tooling & holders
