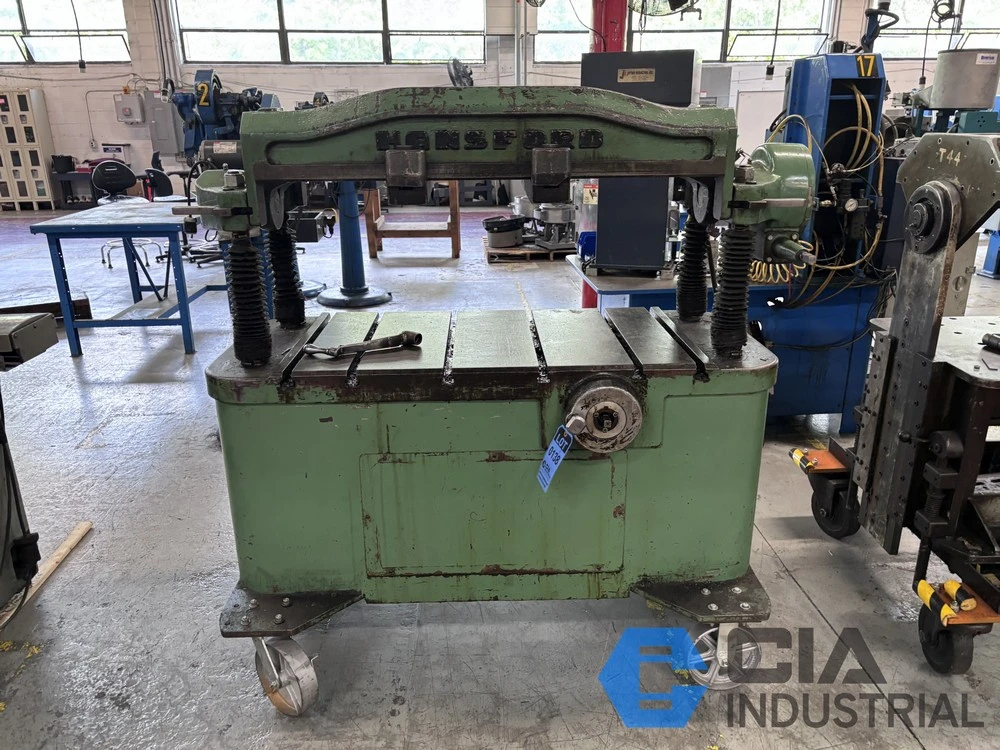

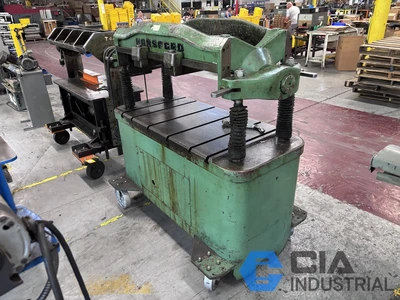

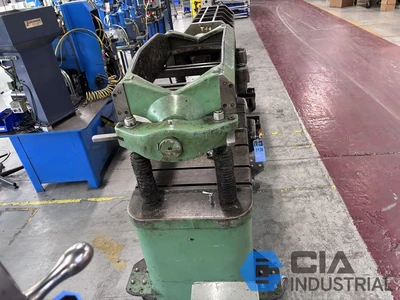

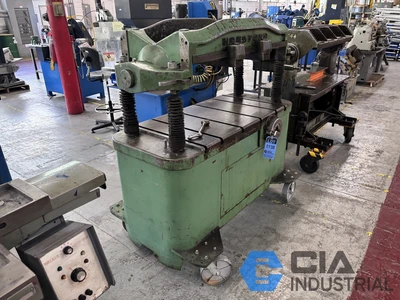

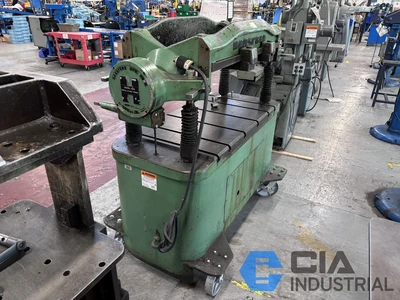

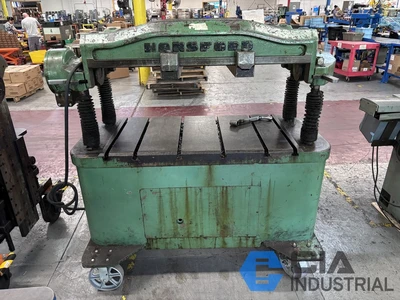

USED 1980 Hansford 1020

3,000 LB. HANSFORD DIE FLIPPER

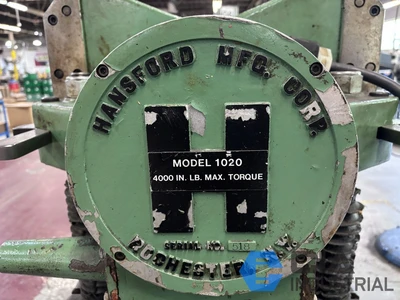

MODEL 1020       S/N 518      NEW 1980

CAPACITY ................................... 3,000 LBS.

SHUT HEIGHT (MIN. DISTANCE BETWEEN PLATENS). 8"

OPEN HEIGHT (MAX. DISTANCE BETWEEN PLATENS). 28"

PLATEN AREA (LOWER)..................... 24" X 44-1/2"L

      (UPPER).ADJUSTABLE MTG. PLATES

LOCKING POSITION OF UPPER PLATEN ....... 0 & 180 DEGS

MAXIMUM DIE TRY-OUT FORCE .................. 20 TONS

MOUNTING OF DIES:

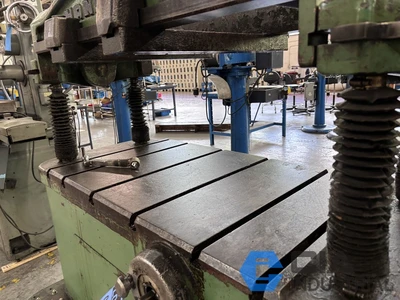

      (LOWER) 6 T-SLOTS 24" LONG, FOR 3/4" BOLTS

      (UPPER) 4 T-SLOTS 8-1/2" LONG, FOR 3/4" BOLTS

      (ADJUSTABLE)

MOVEMENT OF UPPER PLATEN:

      VERTICAL TRAVEL ................ 20"

      VERTICAL MOVEMENT (BY HAND CRANK)

      MANUAL POSITION ............... 48 TURNS/INCH

      TRY-OUT POSITION .............. 384 TURNS/INCH

VERITICAL MOVEMENT (POWER)........... 13"/MIN.

ROTATION OF TOP PLATEN .............. 48 TURNS/360 DEGS

MOTOR - 1.5 HP, 220/440 VOLTS, 3 PH, 60 CYCLE, 1750 RPM

      INSTANTANEOUSLY REVERSING

MOUNTED ON HEAVY DUTY STEEL CASTERS FOR PORTABILITY AROUND THE SHOP

NET WEIGHT: 3,350 LBS.

SHIPPING WEIGHT: 3,500 LBS.

FOR MORE INFORMATION: Call David at 973-497-7570
