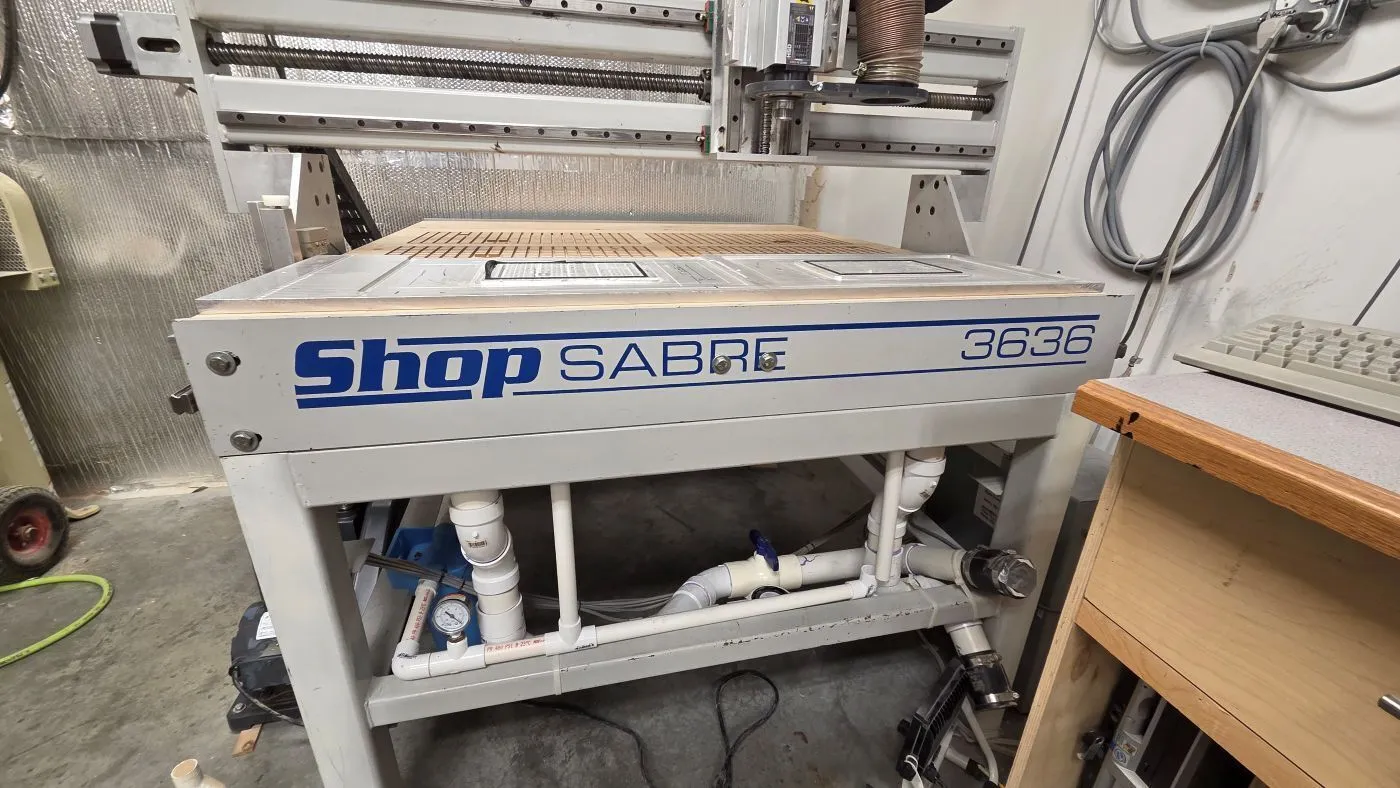

USED 2007 SHOPSABRE 3636

• Cut area 43" wide and 38"
• PC with WinCNC control included
• Six axis controller, even though we are only using three axis for our use
• Spindle: HSD 3kw 4hp VFD controlled spindle (VFD is a Mitsubishi which runs on 220V, 30A, single phase
• Auto-measuring for tool height
• Dust boot
• Industrial Welch vacuum pump - low volume-high vacuum clamping system (aluminum table included as in the phots)
• MDF vacuum table set up to run with shopvac – (vacuum not included)
• 3.25hp Porter Cable Router mount included – can be used in place of the HSD spindle if desired
• We also have a number of Vortex and Amana router bits that would be included with the sale
• ShopSabre Specs:
- Construction: Welded structural steel tube frame and gantry, designed for rigidity.
- Drive System: Ball screw drives on all axes for high precision and reduced backlash (often dual drive Y-axis).
- Components: 25mm linear guide rails and bearings on all axes.
- Control System: Ethernet-based PC control with WinCNC software. (computer included)
- Footprint: Roughly 67” x 54”.
- Capabilities: Suitable for cutting wood, plastics, and soft metals (aluminum) with high accuracy
