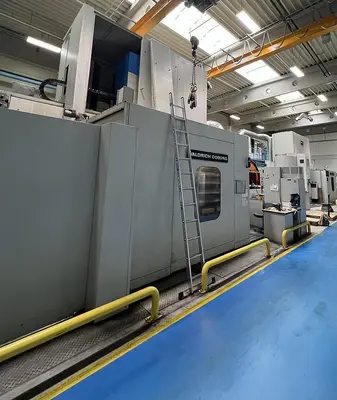

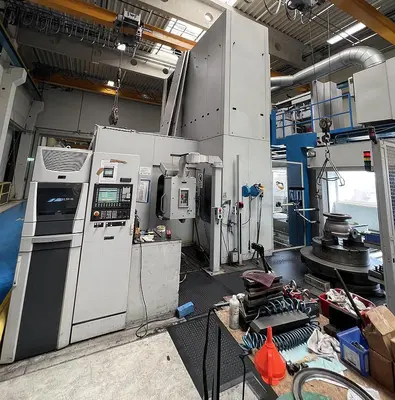

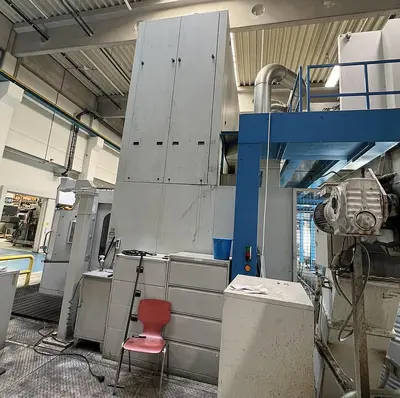

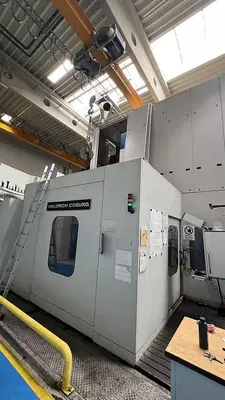

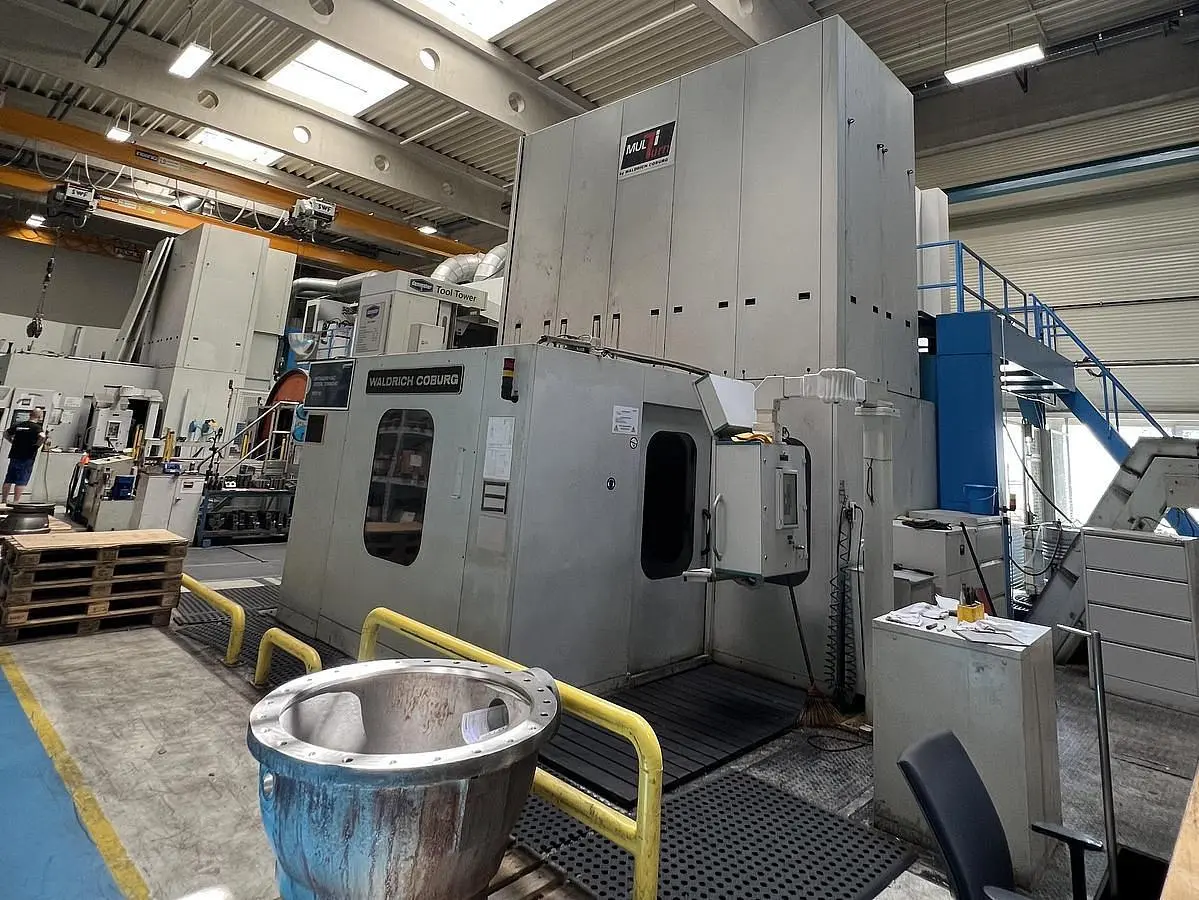

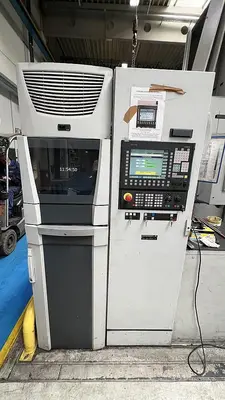

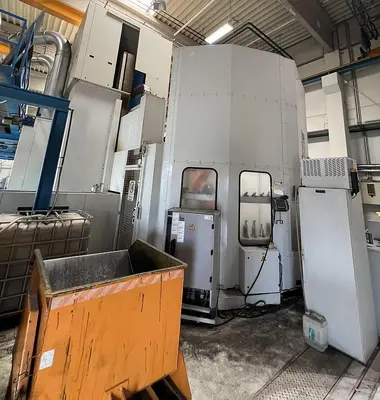

USED 2005 WALDRICH COBURG MULTITURN 1500 FM

2 Machines
Each equipped with multiple turning & milling units (vertical/horizontal)

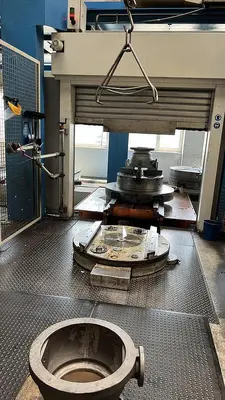

7 Pallet Storage + 2 Setup Stations

Machine #1 - MultiTurn:
Spindle – milling spindle: 30 kW, 5–1,000 and 20–4,000 rpm
Tool interface: HSK 100-A for rotating tools; Capto C6 for turning tools
Spindle power – turning: 63 kW, 0.1–200 rpm and 0.4–800 rpm
Axis travels: X +1,150/−1,150 mm; Z 1,250 mm; Y +750/−750 mm; fixed crossrail

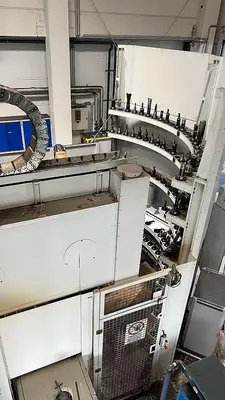

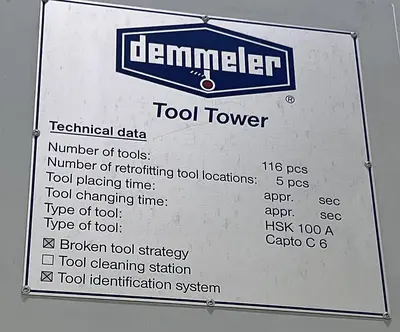

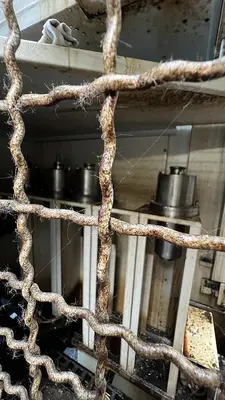

Number of tools: 116

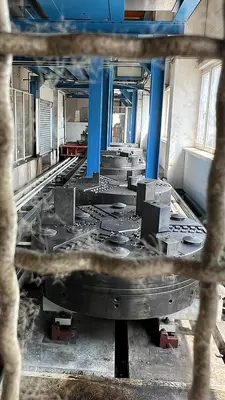

Table size: Pallet base Ø1,250 mm; faceplate with Röhm power chuck Ø1,000 mm
Rapid traverse speeds: X 30 m/min; Y/Z 20 m/min
Number of pallets in the system: 4 per machine; each pallet can be used on both machines
Maximum load per pallet: 2,500 kg
Tool slide cross-section: 250 × 250 mm
Swing diameter: 1,500 mm
Clearance height: 2,050 mm

Machine #2 - MultiTec:
Spindle – milling spindle: 45 kW, 5–1,300 and 23–6,000 rpm

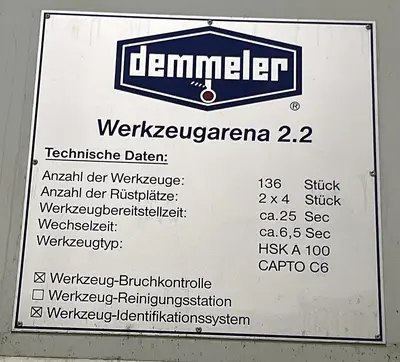

Tool interface: HSK 100-A for rotating tools; Capto C6 for turning tools
Spindle power – turning: 63 kW, 0–400 rpm
Axis travels: X +1,000/−1,500 mm; Z 1,500 mm; Y +1,500/−1,500 mm; W crossrail vertical travel (NC axis) 1,000 mm
Number of tools: 130
Table size: Pallet base Ø1,250 mm; faceplate with Röhm power chuck Ø1,500 mm
Rapid traverse speeds: X/Y/Z 60 m/min; W-axis 6 m/min
Number of pallets in the system: 4 per machine; each pallet can be used on both machines
Maximum load per pallet: 6,000 kg
Tool slide cross-section: 400 × 400 mm
Swing diameter: 2,000 mm
Clearance height: 2,050 mm
