USED 1995 Clausing Colchester CNC 200

1995 Clausing Colchester Tornado 200 CNC Lathe, Fanuc 0-T Control, 12-Station VDI 40 with BSV-N 160/12/40 Turret, Hydraulic Tailstock, 3500 RPM FOB Hayward, CA

Specifications

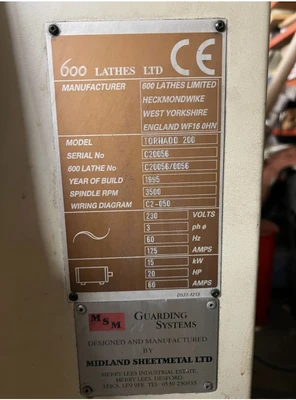

Serial Number: C20056
Year of Build: 1995
CNC Control: GE Fanuc Series 0-T
Swing Over Bed: 17.32" (440 mm)
Swing Over Cross Slide: 11.81" (300 mm)
Max Turning Diameter: 9.84" (250 mm)
Max Turning Length: 17.71" (450 mm)
Approximate Weight: 5,500 lbs - 6,500 lbs (2,600 - 2,950 kg)
Footprint (L x W x H): Approx. 92" x 56" x 68" (Excludes chip conveyor dimension)
Maximum Spindle Speed: 3,500 RPM
Spindle Motor Power: 20 HP (15 kW)
Spindle Motor Current: 60 Amps
Spindle Nose Type: A2-6
Drawtube/Bar Capacity: 2.04" (52 mm)
Turret Drive Type: Duplomatic BSV-N Electromechanical Drive BSV-N 160/12/40
Turret Capacity: 12-Station Disc Layout
Tooling Style: VDI 40
INCLUDED BONUS ASSET: Brand-New, never-mounted Duplomatic replacement turret housing in factory crate.
Tailstock: Integrated Programmable Hydraulic Tailstock
Input Voltage: 230 Volts
Phase: 3 Phase
Frequency: 60 Hz
Full Load Amperage: 125 Amps
Wiring Diagram Ref: C2-050

Description

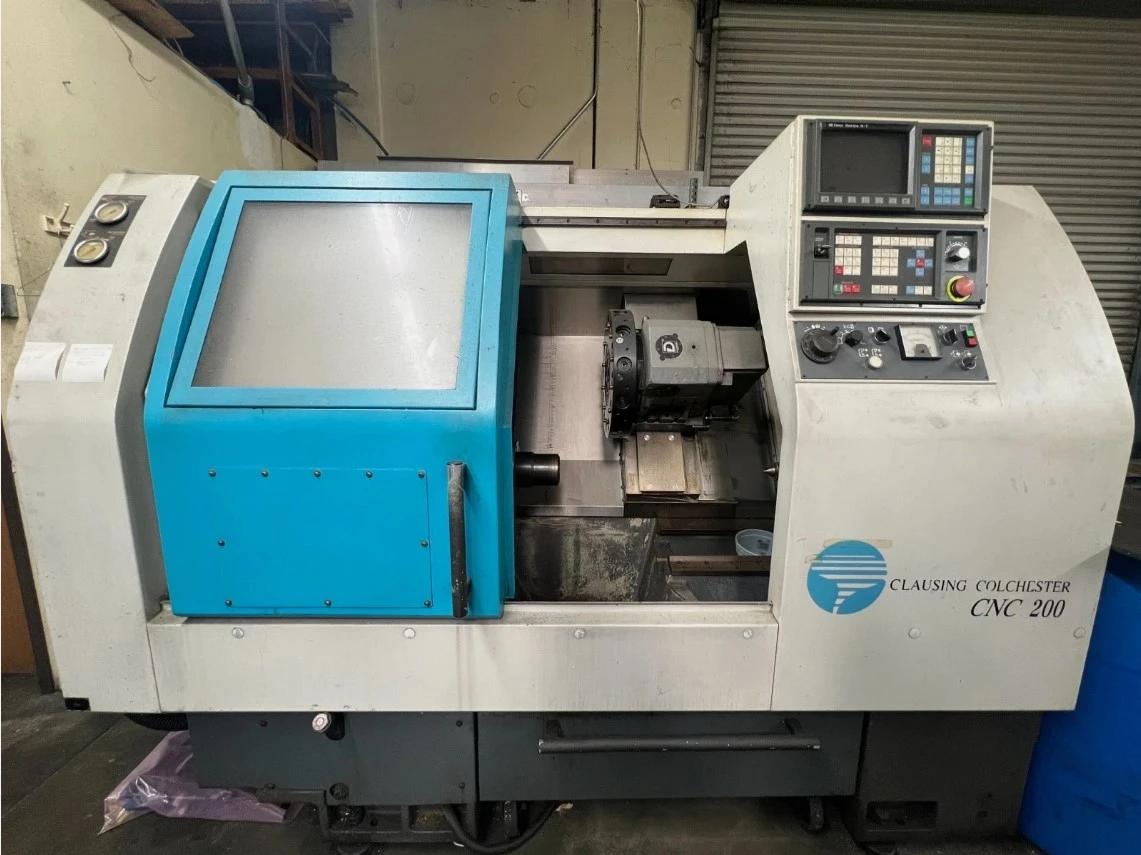

This 1995 Clausing Colchester Tornado 200 package comes complete with an integrated Fanuc 0-T control panel, a full 12-station VDI indexing disc configuration, and a programmable hydraulic tailstock assembly. The machine is constructed on robust, hardened slant-bed linear ways and cross-slide surfaces that remain visually clean, carrying a normal light surface oil film free of deep scoring, gouges, or rust pitting. While the external sheet metal enclosure exhibits typical mid-90s paint flaking and cosmetic wear around the base and lower splash guard panels from water-soluble coolant use, it retains its durable workhorse build. Note that the spindle nose setup is currently bare without a chuck or collet actuator, making it ready for the buyer's choice of workholding, and the spindle assembly itself requires a bearing rebuild due to noisy operation.

Key Features & Benefits

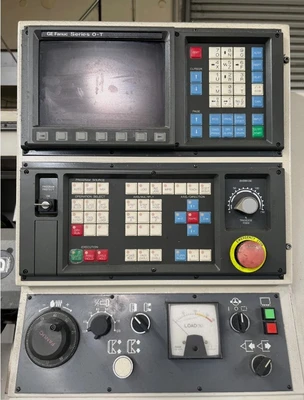

Equipped with a programmable hydraulic tailstock unit on the lower ways, this machine easily transitions from short chucking work to long shaft and bar-fed turning projects between centers. The lower control panel features dedicated hardware buttons for CHUCK ENABLE and T.STK ENABLE alongside an analog spindle load meter calibrated to 150% for direct monitoring of the 20 HP motor. Operator controls are sharp and legible, with the GE Fanuc Series 0-T keypad buttons showing very minimal plastic degradation or text wear. For system monitoring and troubleshooting, twin analog pressure dials are mounted on the upper left bulkhead to trace hydraulic chucking and system pressure. Additionally, this package includes an invaluable, brand-new standalone Duplomatic BSV-N series electromechanical drive housing in its factory crate, serving as a direct mechanical drop-in match for the core casting inside the enclosure.

Dimensions & Weight
Physical Footprint: Approx. 92" x 56" x 68"
Weight: Approximately 5,500 lbs - 6,500 lbs

Shipping & Location Details
Location: Hayward, CA
This machine is offered FOB. Buyer is responsible for all applicable freight and rigging expenses.
