USED 1996 HAAS VF-3B

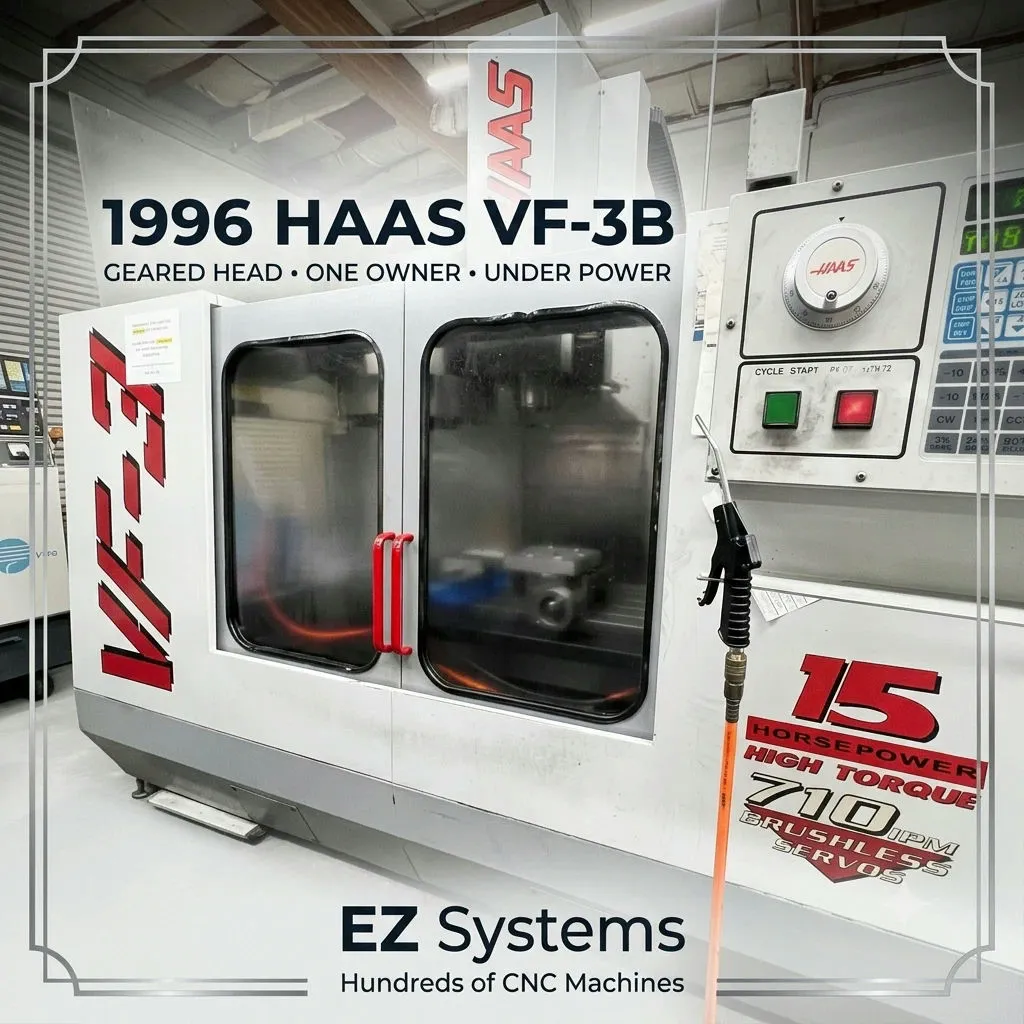

1996 Haas VF-3B CNC Vertical Machining Center | Geared Head | One-Owner | New Spindle 2018 | Under Power
Condition: Used – Excellent Mechanical & Functional Condition
Location: Hayward, CA (On shop floor, under power)
🚀 PREMIUM ADVANTAGES & SELLING POINTS (The "Bells & Whistles")
The "B" Advantage (Geared Head): This is a true VF-3B model featuring the sought-after High-Torque 2-Speed Gearbox Drive. Ideal for rigid, heavy-milling operations in tough materials, steel, or mold work. Much scarcer and more valuable than standard belt-drive units.
Single-Owner Pedigree: Purchased brand new from Selway Machine Tool. Never bounced around from shop to shop or abused by auction flippers.
Verified New Spindle (2018): Low hours since a complete spindle replacement. Runs incredibly smooth and quiet through the full range with zero high-RPM bearing whine.
In-House Maintenance History: Maintained strictly via regular, disciplined in-house preventative maintenance tracking and internal logbook documentation.
⚙️ PHYSICAL & MECHANICAL SPECIFICATIONS
Serial Number: 7518
Date of Manufacturing: May 1996 (5/96)
X-Axis Travel: 40"
Y-Axis Travel: 20"
Z-Axis Travel: 25"
Table Size: 48" x 18"
Max Table Load: 3,500 lbs
Spindle Taper: CAT 40
Spindle Speed: 7,500 RPM Max
Tool Changer: 20-Station Carousel (Umbrella Style)

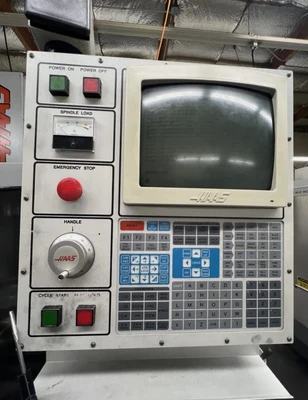

Control Type: Classic Haas Control
Coolant Options: Factory Programmable Coolant Nozzle (P-COOL)
Chip Removal: Internal Chip Auger System Included
Approximate Machine Weight: 12,500 lbs
Approximate Machine Dimensions: 118" L x 98" W x 120" H

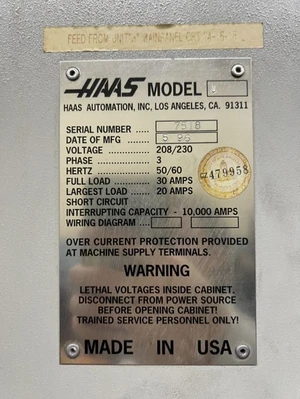

⚡ POWER & UTILITY REQUIREMENTS
Voltage: 208/230 VAC
Phase: 3-Phase
Hertz: 50/60 Hz
Full Load Current: 30 Amps
Largest Load: 20 Amps
Short Circuit Interrupting Capacity: 10,000 Amps
⚠️ CONDITION & DISCLOSURE NOTES
Tool Changer Wear: The 20-station carousel shows some cosmetic and minor mechanical wear/damage typical for a mid-90s workhorse, but the unit remains functional.
Exclusions: Any rotary indexers, 4th-axis drives, or custom table fixtures visible in the shop environment photos are NOT included in this sale.
🚛 LOGISTICS, RIGGING & TRUCKING
Operational Status: Currently under power and fully available for inspection on the facility floor in Hayward, CA.
Rigging & Trucking: NOT INCLUDED. Rigging out of the facility, loading, and all trucking/freight logistics are the absolute responsibility of the buyer. Professional outside rigging is required for removal. Local Northern California rigger contact information can be provided upon request.
