Used

USED 2024 HAAS MINI MILL

Ohio, United States
1,335Listings|530Followers
Overview
Vertical Machining Centers

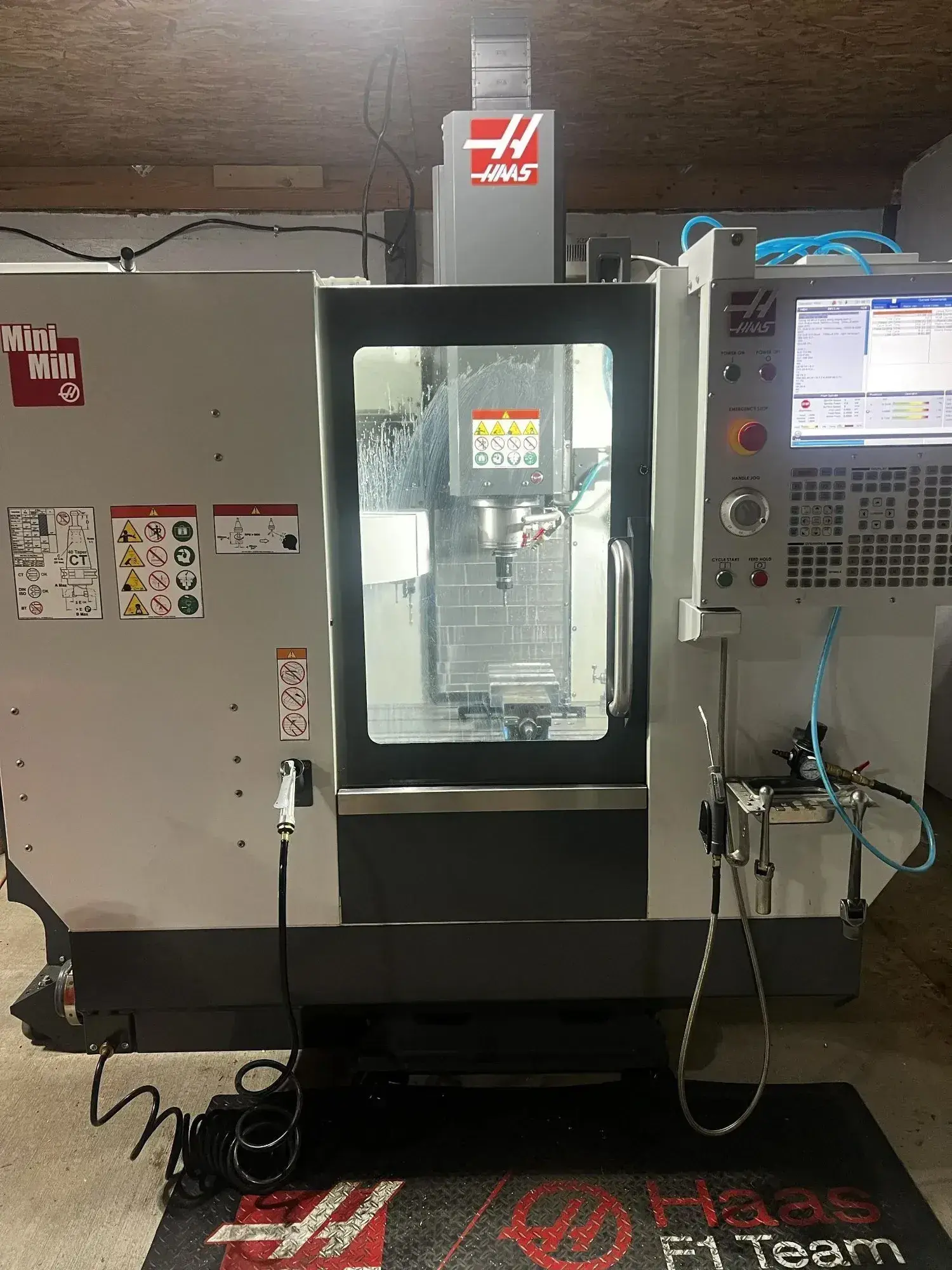

This 2024 Haas Mini Mill comes equipped with a Renishaw probe and tool setter and shows under 500 reported hours (approximate). It has 16" x 14" x 15" travels over a 12" x 36" table, with a 10 HP, 8,000 RPM CAT 40 spindle and a 20 tool ATC.

Specs
X
16"
406.4 mm
Y
14"
355.6 mm
Z
15"
381 mm
Power
10 hp
7.5 kW
RPM
8,000 RPM
8,000 RPM
# ATC
20
20
Taper
CAT-40
CAT-40
Table-W
12"
304.8 mm
Table-L
36"
914.4 mm
# Axis
3
3
Control
CNC (HAAS)
CNC (HAAS)

Under 500 Reported Hours (Approximate)
Approximate Dimensions: 90" x 80" x 92"
Approximate Weight: 4,450 lbs

Equipped With

Renishaw Probe
Renishaw Tool Setter
