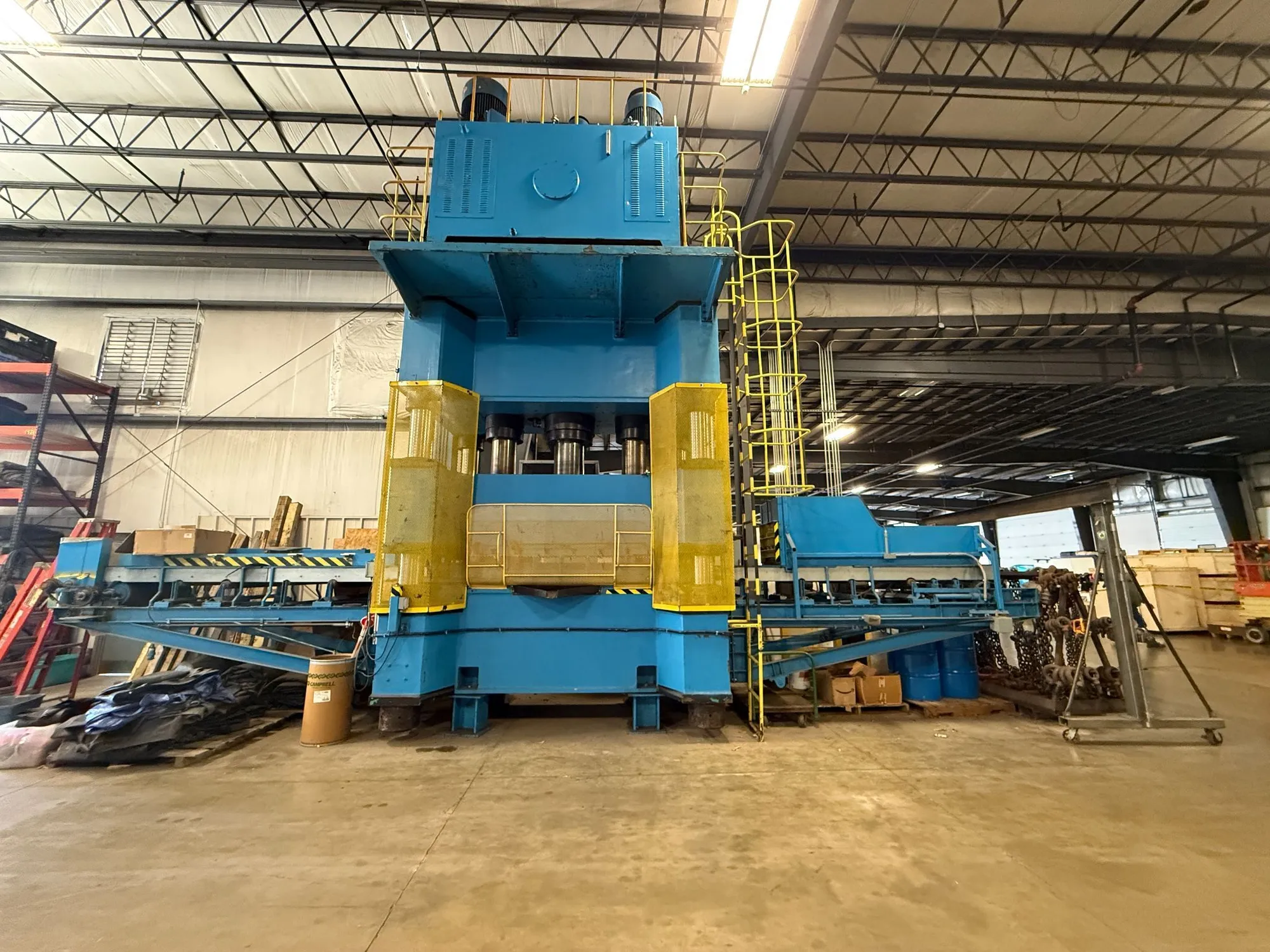

USED 2007 HEFEI HAIDE SHP32-800A-SM

Tonnage: 970 US Tons (880 Metric Tons)
Maximum Work Pressure of Liquid: 3625.94 psi (25 MPa)
Max Stroke of Slide: 30.51 inches (775 mm)
Press Opening: 33.64 inches (850 mm)
Height from work table to ground: 19.69 inches (500 mm)
Slide Speed - Fast Down: 354.3 Inches Per Minute (150 mm/s)
Slide Speed - Work: 78.74 Inches Per Minute (20 mm/s)
Slide Speed - Return Stroke: 236.2 Inches Per Minute (100 mm/s)
Work Table Size (L-R): 106.3 inches (2700 mm)
Work Table Size (F-B): 57.48 inches(1460 mm)
Footprint: 140.94 inches (L-R) x 91.34 inches (F-B) x 256.69 inches (Height)
3580 mm (L-R) x 2320 mm (F-B) x 6250 mm (Height)
Machine Total Power: 80.5 KW
Machine Total Weight: 84.88 US Tons (77 Metric Tons)
