USED 2007 Nexus Quick Turn Nexus 200-II

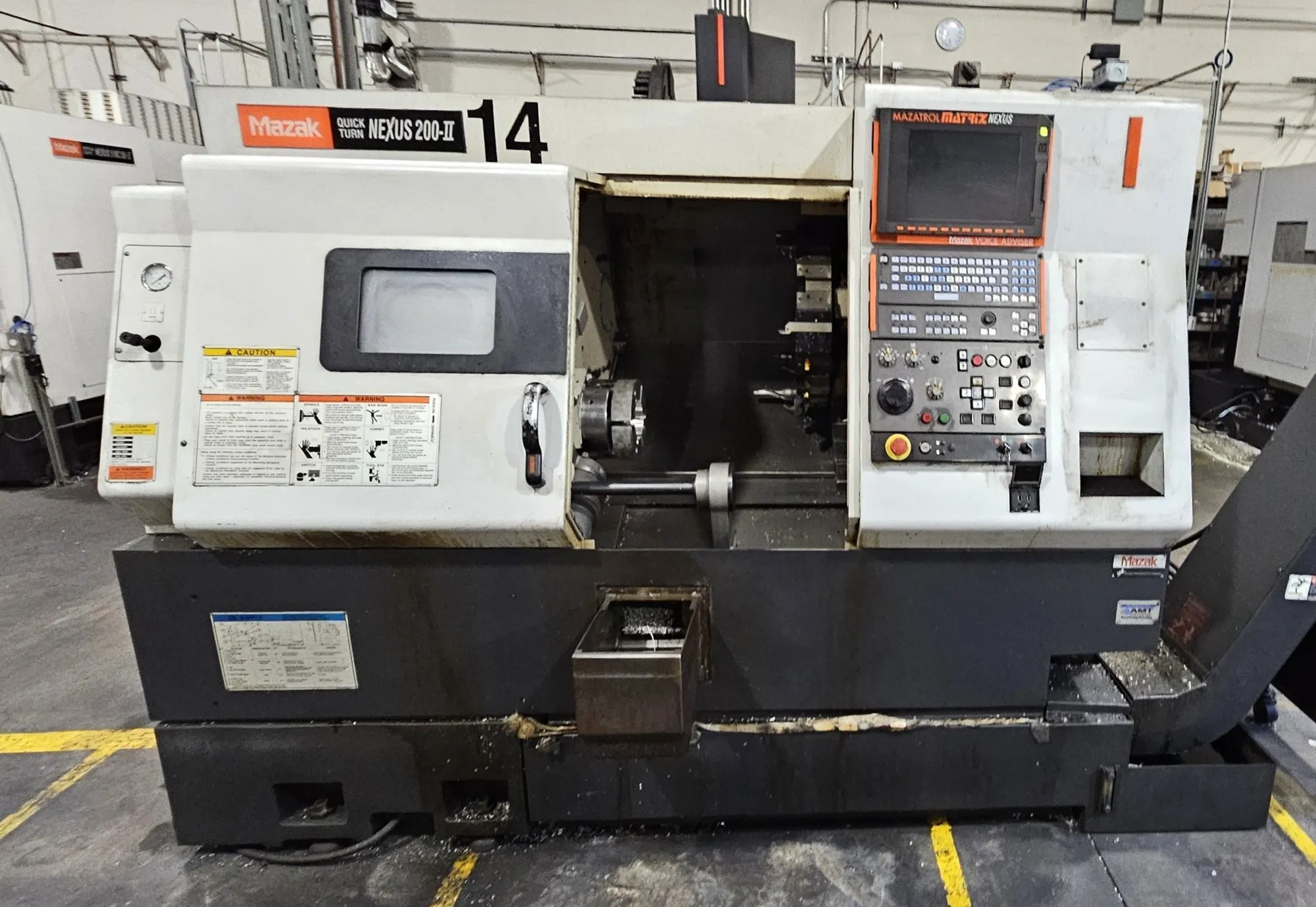

Mazak Quick Turn Nexus 200-II CNC Turning Center

Mazak
Quick Turn Nexus 200-II
Axis: 2
Serial Number: 193620
Year: 2007
Cut Hours: 12,200
Control: Mazatrol Matrix Nexus

Key Specifications & Features

Max Turning Diameter: 13.78" (350 mm)
Max Turning Length: 20.16" (512 mm)
Swing Over Bed / Max Swing: 24.02" (610 mm)
Bar Capacity: 2.56" (66 mm)
Spindle Speed: 5,000 RPM
HP: 35

Turret: 12-station drum turret
Travels: X-axis travel of 7.50" (191 mm) and Z-axis travel of 21.125" (537 mm)
Rapid Traverse Rates: 1,181 IPM (X-axis) / 1,299 IPM (Z-axis)

Power: 40.3 KVA
220/480V
3 Phase
60Hz

Machine Weight: 12,500 lbs
Overall Dimensions (L × W × H): 137” x 80” x 80”

Location: Conroe, TX
