USED BALDOR ID15201-E

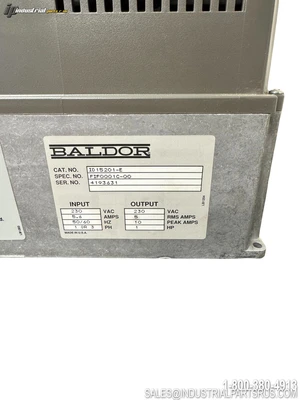

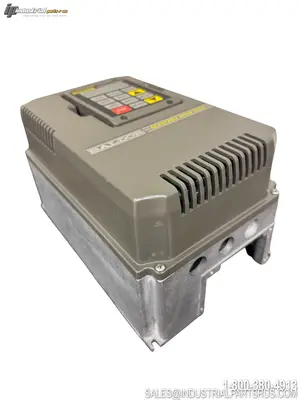

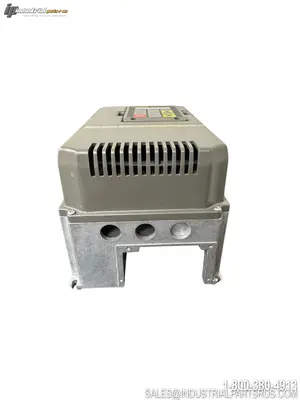

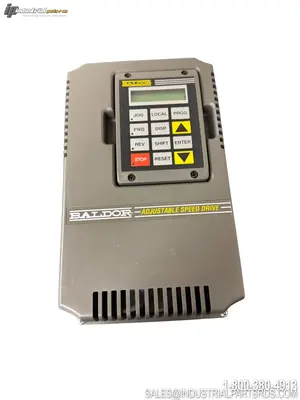

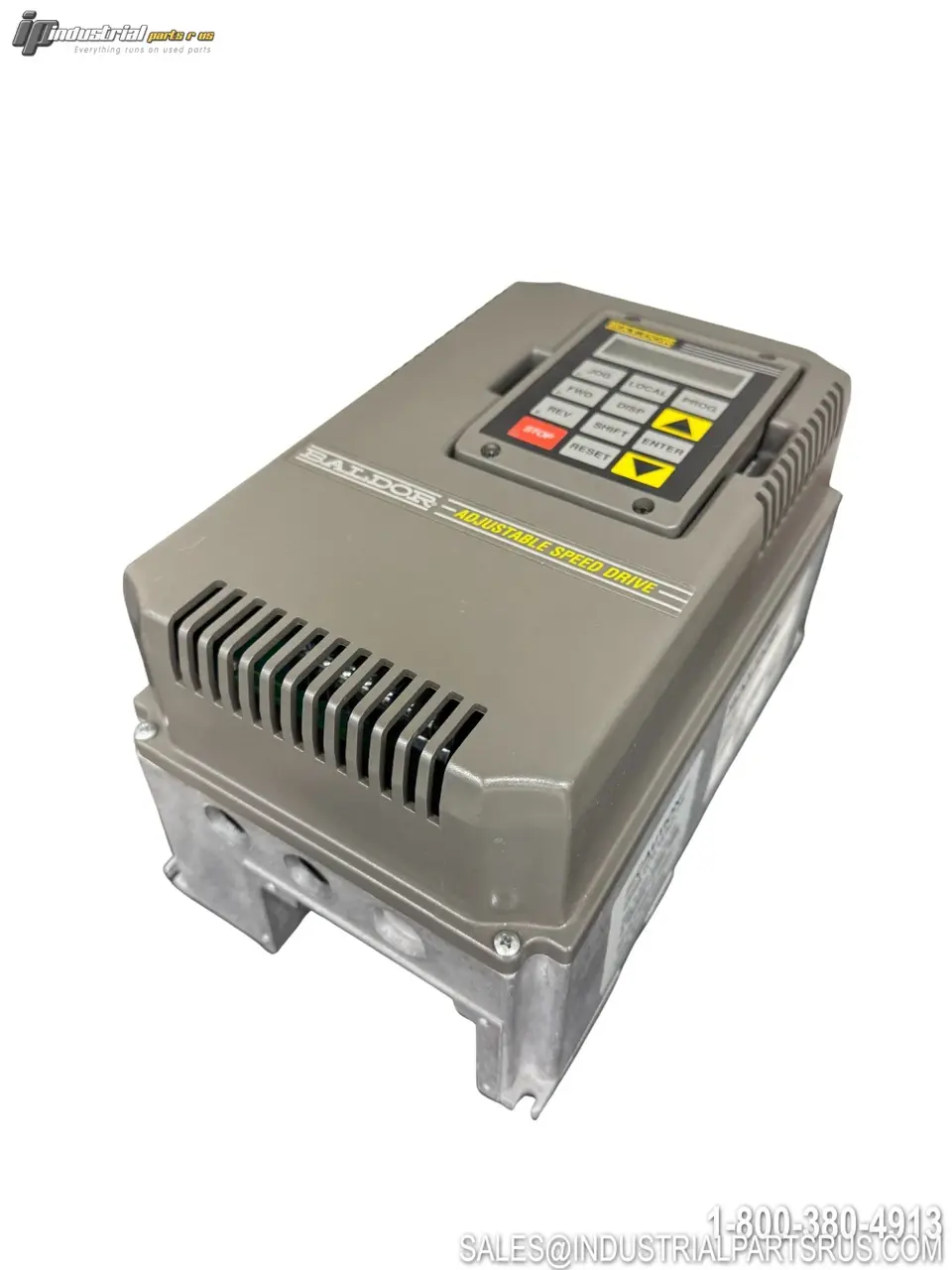

The Baldor ID15201-E is a Series 15 PWM AC inverter adjustable speed drive designed for single- or three-phase 230 VAC input. Rated at 1 HP with a 5.6-amp input current and 5 RMS / 10 peak output amps, it provides variable frequency motor speed control in a compact package. This product has been discontinued by the manufacturer and is available only through the secondary market.
Specification
Value
Brand
Baldor
Model / Part Number
ID15201-E
Product Type
AC Inverter / Variable Frequency Drive
Product Series
Series 15
Spec Number
FIF0001C-00
Rated Power (HP)
1 HP
Input Voltage
230 VAC
Input Phase
1 or 3 Phase
Input Frequency
50/60 Hz
Input Current
5.6 Amps
Output Voltage
0–230 VAC
Output Current (RMS)
5 A RMS
Output Current (Peak)
10 A Peak
Control Type
PWM (Pulse Width Modulation)
Enclosure Type
NEMA 1 (Open / -E suffix)
Mounting Method
Vertical Surface
Weight
18 lbs (per label) / 15 lbs (per Radwell)
Status
Discontinued by Manufacturer
We warranty all items for 30 days from date of purchase.
