USED 1997 TOSHIBA BMC-630
Overview
Specs
X-AXIS TRAVEL: 39.37"
Y-AXIS TRAVEL: 31.50"
Z-AXIS TRAVEL: 33.46"
DISTANCE FROM SPINDLE CENTER TO PALLET TOP: 5.9" TO 39.4"
PALLET SIZE: 24.75" X 24.75"
NO. OF PALLETS: 2
PALLET WEIGHT CAPACITY: 2,460 LBS.
PALLET INDEXING ( B-AXIS ): FULL 4TH AXIS CONTOURING
SPINDLE TAPER: CAT 50
SPINDLE SPEED RANGE: 25 - 5000 RPM
SPINDLE MOTOR: 20 HP
MAX. TOOL WEIGHT: 55 LBS.
RAPID TRAVERSE RATE - ( X, Y, Z ): 788 IPM
APPROX. MACHINE WEIGHT: 33,000 LBS.
APPROX. FLOOR SPACE REQUIRED: 126" X 247"
Equipped With

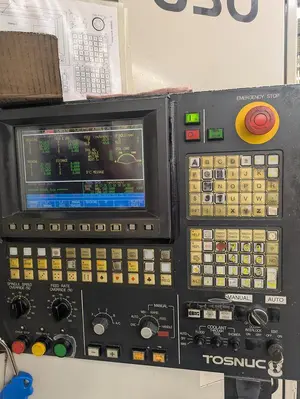

TOSNUC 888 CNC CONTROL

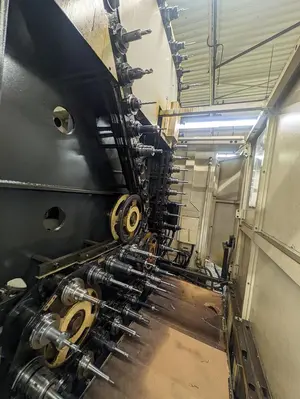

60 TOOL ATC
LARGE ASSORTMENT OF TOOL HOLDERS

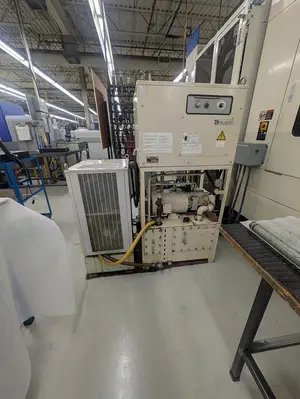

HIGH PRESSURE COOLANT THRU SPINDLE
RECENTLY REPLACE SPINDLE MOTOR JUNE 2026

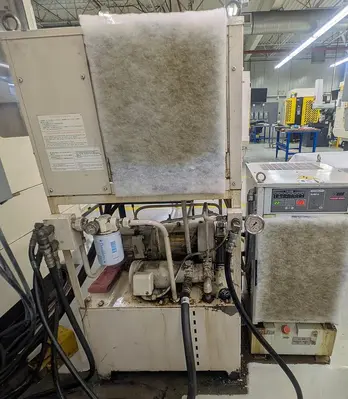

AIR OIL MIST AUTO LUBRICATED

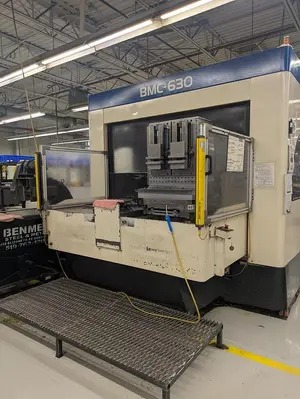

2 PALLET CHANGER

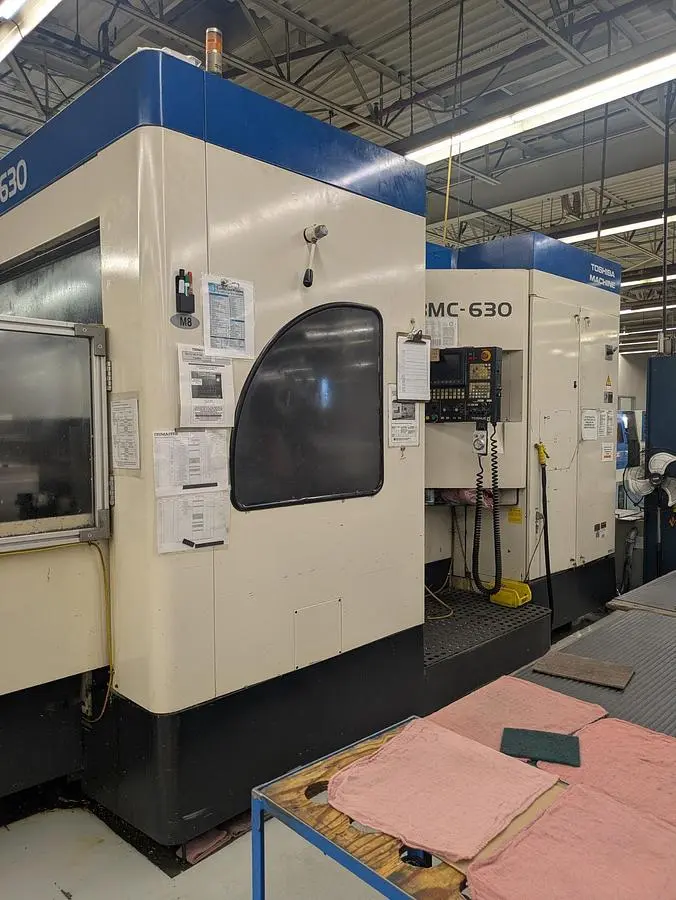

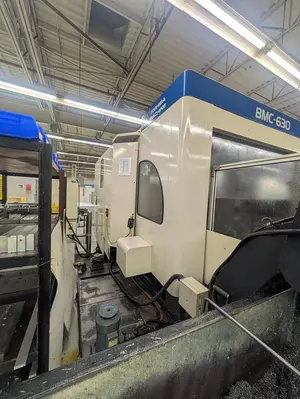

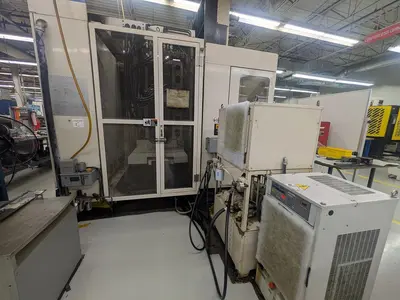

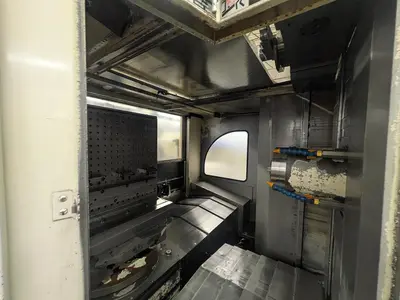

This used TOSHIBA BMC-630 Horizontal Machining Center from 1997 is equipped with the TOSNUC 888 CNC control system and offers reliable performance. It features a large 39.37" X-axis, 31.50" Y-axis, and 33.46" Z-axis travel, providing ample space for versatile machining operations. The machine includes a 60-tool automatic tool changer and a high-pressure coolant system through the spindle, ensuring efficient and prolonged operation.
The BMC-630 is designed with features that enhance productivity, such as a 2-pallet changer with each pallet measuring 24.75" x 24.75", capable of handling weights up to 2,460 lbs. The spindle taper is CAT 50, with a range of 25 to 5000 RPM, powered by a 20 HP spindle motor, recently replaced in June 2026, ensuring continued reliability. The machine can handle a maximum tool weight of 55 lbs. and offers rapid traverse rates of 788 inches per minute across all axes.
The unit is also equipped with air-oil mist auto lubrication for smooth operation and minimal maintenance. It requires approximately 126" x 247" of floor space and weighs around 33,000 lbs., suitable for industrial environments requiring robust machining capabilities. This machine is an excellent choice for those seeking precision and durability in a horizontal machining center.
