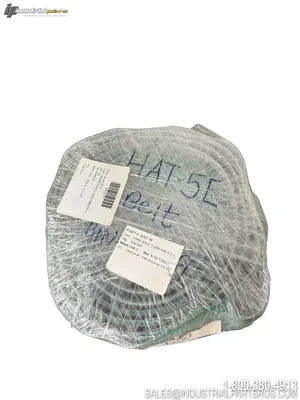

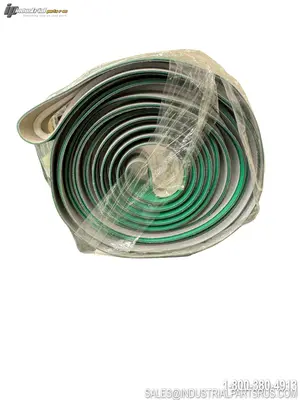

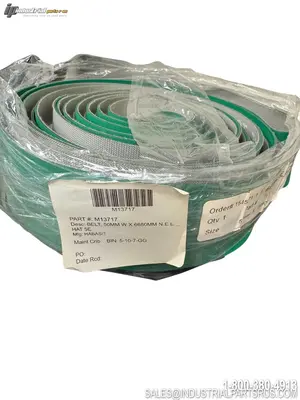

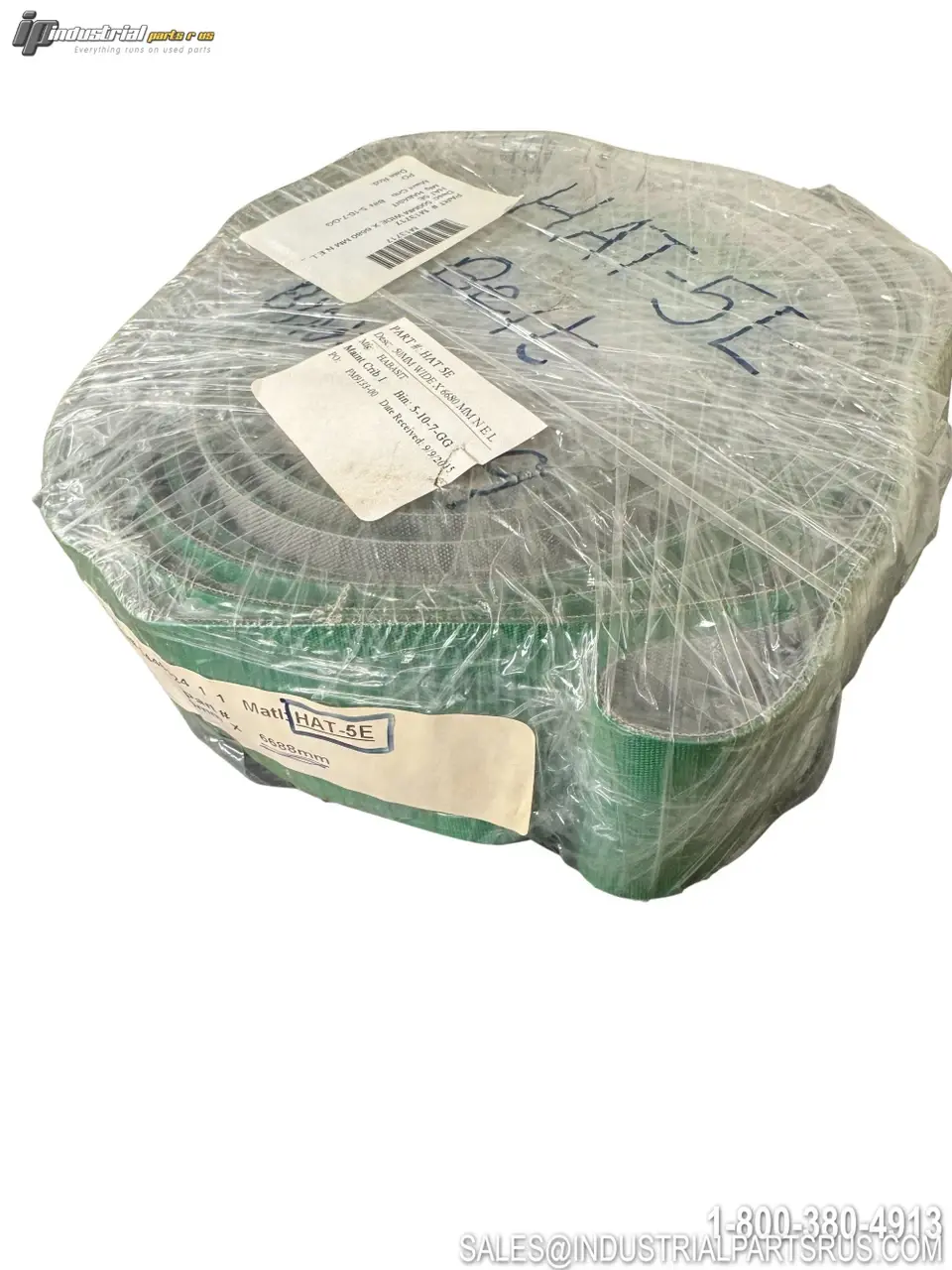

NEW HABASIT HAT-5E BELT 50MM X 6680MM

The Habasit HAT-5E is a high-duty elastomer-covered conveyor and processing belt featuring an Acrylonitrile-Butadiene-Rubber (NBR) conveying surface over a 2-ply Polyester (PET) traction layer body. This specific cut measures 50mm wide by 6680mm in length and is designed for demanding industrial applications including materials handling, packaging, paper converting, and paper manufacturing. The belt delivers a consistent coefficient of friction, abrasion resistance, and dimensional stability, and supports adhesive-free (Flexproof) joining.
Specification
Value
Brand
Habasit
Model / Part Number
HAT-5E belt 50mm X 6680mm
Belt Type
Flat Belt (Elastomer Covered Conveying/Processing Belt)
Width
50 mm (1.97 in)
Length
6680 mm (263.0 in)
Thickness
1.5 mm (0.06 in)
Belt Weight (Mass)
1.8 kg/m² (0.37 lb/sq ft)
Conveying Side Material
Acrylonitrile-Butadiene-Rubber (NBR)
Conveying Side Surface
Rough / Coarse Textile Structure
Conveying Side Property
Adhesive
Conveying Side Color
Green
Traction Layer Material
Polyester (PET) fabric
Number of Fabric Plies
2
Pulley Side Material
Polyester (PET) fabric – Impregnated
Pulley Side Color
Gray
Pulley Side Property
Non-adhesive
Minimum Pulley Diameter
25 mm (0.98 in)
Tensile Force for 1% Elongation (k1% static)
6.5 N/mm (37 lbf/in)
Admissible Tensile Force per Unit Width
12 N/mm (69 lbf/in)
Coefficient of Friction – Pulley Side / Steel Driving Pulley
0.15
Coefficient of Friction – Pulley Side / Friction Cover Pulley
0.35
Coefficient of Friction – Pickled Steel Slider Bed
0.20
Min. Operating Temperature (Continuous)
0°C (32°F)
Max. Operating Temperature (Continuous)
80°C (176°F)
Joining Method
Flexproof (Adhesive-Free)
Antistatic
Yes
Slider Bed Suitable
Yes
Carrying Rollers Suitable
Yes
Nosebar / Knife-Edge Suitable
No
Metal Detector Suitable
No
Food Suitability (FDA/EU)
No
Mode of Conveyance
Horizontal, Inclined, Declined, Vertical
Product Group
High Duty Conveyor and Processing Belts
Product Sub-Group
Rubber (Elastomer Covered) Conveyor and Processing Belts
Industry Segments
Materials Handling, Packaging, Paper Converting, Paper Manufacturing, Paper Printing & Finishing
Belt Applications
General Conveying, Machine Tape, Paper Handling, Weighing Belt
Habasit Item Number
H800036112
We warranty all items for 30 days from date of purchase.
