USED ALFA LAVAL MAPX 207 2

MANUFACTURER INFORMATION
Alfa Laval manufactures centrifugal separation equipment used in food, chemical, fuel, oil, marine and industrial processing applications. Disc-stack centrifuges use a high-speed rotating bowl and closely spaced discs to accelerate separation of liquids with different densities while also removing suspended solids. Automatic desludging models are designed to periodically discharge accumulated solids during operation.
PRODUCT DESCRIPTION

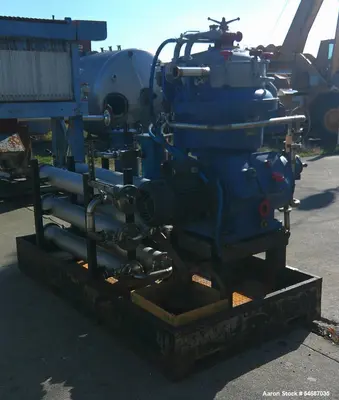

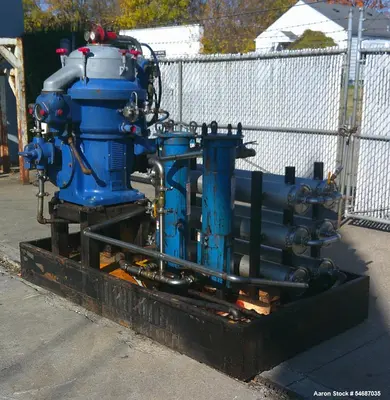

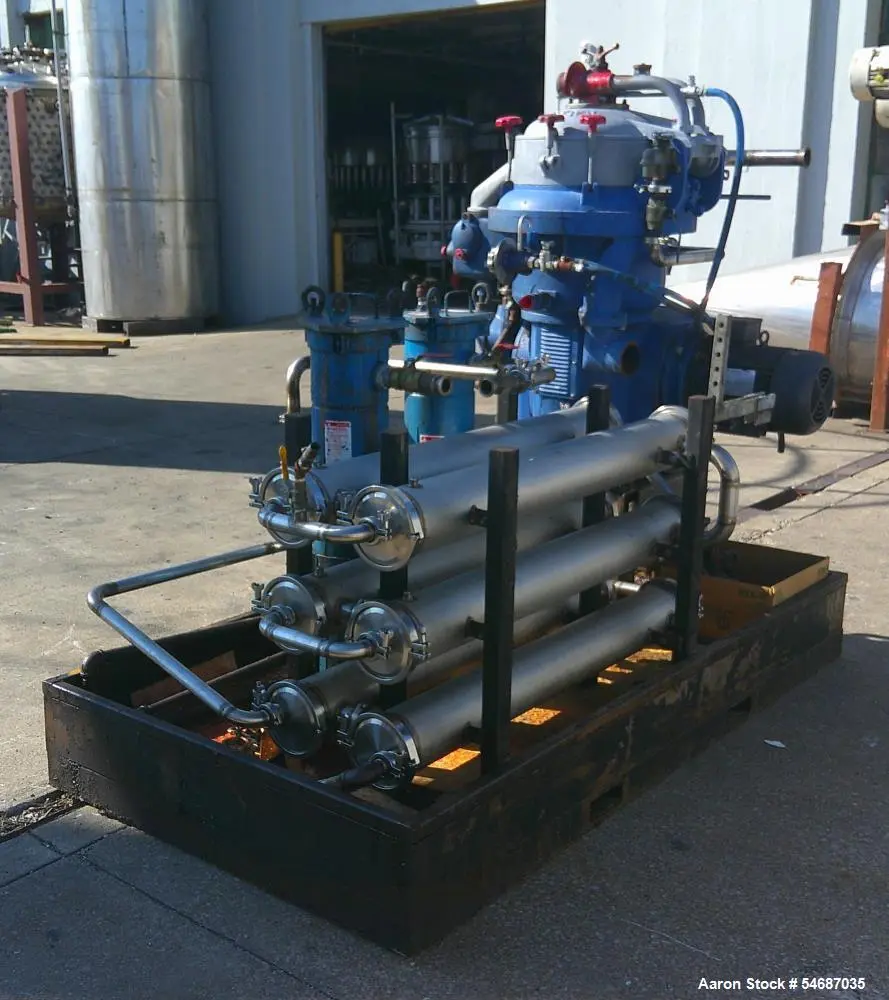

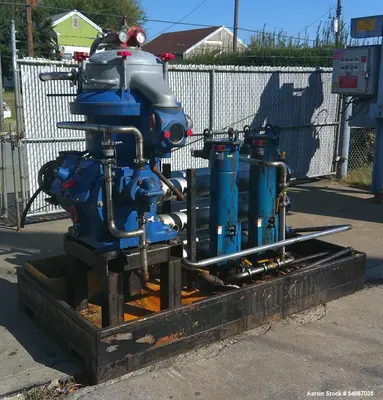

Used Alfa Laval Model MAPX 207 24 S automatic desludging disc centrifuge, Serial #2919 100, designed for three-phase liquid/liquid/solid separation. The centrifuge is driven by a 7-1/2 HP motor rated 230/460 VAC, 3-phase, 60 Hz at approximately 1,764 rpm. The separator is mounted in a carbon steel spill-containment skid with fork slots measuring approximately 90" long x 48" wide x 12" high and providing approximately 7" of inside containment depth. The system also includes two basket strainers and six stainless steel shell-and-tube heat exchangers. Each heat exchanger contains 54 tubes measuring approximately 1/2" ID x 47-1/2" long. The system was last used in biodiesel production. Possible applications include three-phase separation, clarification, purification and solids removal of compatible biodiesel, oils, fuels, process liquids and other suitable liquid/liquid/solid process streams.
SPECIFICATIONS

Manufacturer: Alfa Laval

Model: MAPX 207 24 S

Equipment Type: Disc-stack centrifuge / separator

Separation Type: Three-phase liquid/liquid/solid

Solids Discharge: Automatic desludging

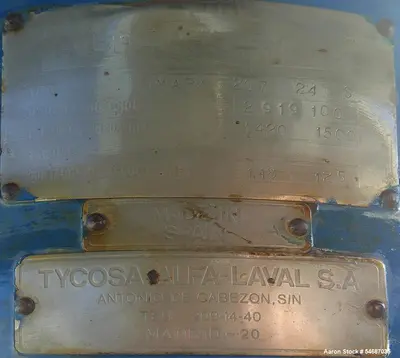

Serial Number: 2919 100

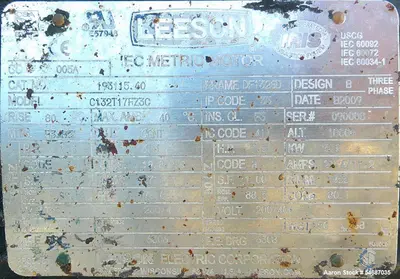

Drive Motor: 7-1/2 HP

Electrical Requirements: 230/460 VAC, 3-phase, 60 Hz

Motor Speed: Approximately 1,764 rpm

Skid Construction: Carbon steel

Skid Type: Spill-containment

Fork Slots: Included

Skid Length: Approximately 90"

Skid Width: Approximately 48"

Skid Height: Approximately 12"

Inside Containment Depth: Approximately 7"

Basket Strainers: (2) included

Heat Exchangers: (6) included

Heat Exchanger Type: Shell-and-tube

Heat Exchanger Construction: Stainless steel

Tubes per Heat Exchanger: (54)

Tube Inside Diameter: Approximately 1/2"

Tube Length: Approximately 47-1/2"

Previous Application: Biodiesel production

APPLICATIONS

Three-phase separation

Liquid/liquid/solid separation

Biodiesel purification

Biodiesel clarification

Oil purification

Fuel polishing

Solids removal

Process-liquid clarification

Liquid-phase separation

Centrifugal separation

Continuous process purification

Removal of suspended solids

Separation of immiscible liquid phases

Industrial oil processing

Renewable-fuel processing

SUITABLE PRODUCTS / MATERIALS
Depending on density difference, viscosity, solids loading and process requirements, this separator system may be suitable for:

Biodiesel

Vegetable oils

Process oils

Fuel streams

Compatible liquid hydrocarbons

Water/oil mixtures

Process liquids containing suspended solids

Liquid streams with two immiscible phases

Renewable-fuel process streams

Chemical process liquids

Other compatible liquid/liquid/solid mixtures suitable for centrifugal separation

FAQ

WHAT TYPE OF CENTRIFUGE IS THE ALFA LAVAL MAPX 207 24 S?
It is an automatic desludging disc-stack centrifuge designed for three-phase liquid/liquid/solid separation.

WHAT DOES THREE-PHASE SEPARATION MEAN?
The separator is designed to separate two liquid phases of different densities while also removing suspended solids.

DOES THE MACHINE AUTOMATICALLY DISCHARGE SOLIDS?
Yes. It is configured as an automatic desludging centrifuge.

WHAT SIZE MOTOR DOES THE CENTRIFUGE HAVE?
The unit is driven by a 7-1/2 HP motor.

WHAT ELECTRICAL SERVICE DOES IT REQUIRE?
The motor is rated for 230/460 VAC, 3-phase, 60 Hz.

WHAT WAS THE SYSTEM LAST USED FOR?
It was last used in biodiesel production.

IS THE CENTRIFUGE MOUNTED ON A SKID?
Yes. It is mounted in a carbon steel spill-containment skid with fork slots.

ARE STRAINERS INCLUDED?
Yes. Two basket strainers are included.

ARE HEAT EXCHANGERS INCLUDED?
Yes. The system includes six stainless steel shell-and-tube heat exchangers.

HOW MANY TUBES ARE IN EACH HEAT EXCHANGER?
Each heat exchanger contains 54 tubes measuring approximately 1/2" ID x 47-1/2" long.

CAN THIS SYSTEM BE USED FOR OIL OR FUEL PROCESSING?
Potentially. Possible applications include compatible biodiesel, oils, fuels and other process liquids requiring clarification, phase separation or solids removal.

CAN AARON EQUIPMENT HELP DETERMINE IF THIS CENTRIFUGE WILL WORK FOR MY PROCESS?
Yes. Aaron Equipment can help review your flow rate, liquid densities, viscosity, solids concentration and required separation performance to determine whether this Alfa Laval separator may be suitable.

CAN AARON EQUIPMENT ARRANGE SHIPPING?
Yes. Aaron Equipment can assist with freight, loading and shipping coordination for domestic or international destinations. Contact Aaron Equipment with your delivery location for shipping assistance.
