USED YAMATO ADW-323-RB

MANUFACTURER INFORMATION
Yamato manufactures weighing, portioning and packaging equipment used throughout food, confectionery, snack and other processing industries. Multihead combination weighers use multiple weigh hoppers and computerized controls to select combinations of product weights that closely match a programmed target before discharging the finished portion to downstream packaging equipment.
PRODUCT DESCRIPTION

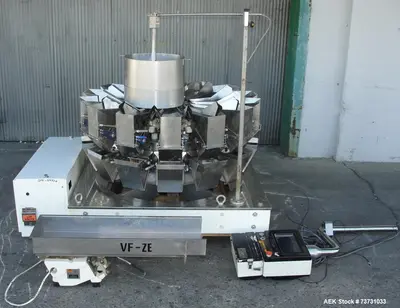

Used Yamato Dataweigh Model ADW-323-RB 14-head multihead combination weigher with stainless steel product-contact surfaces, Serial #082234/900355, built 1990. The unit is capable of accurately dispensing approximately 8 to 1,600 grams per weighment and is equipped with a Yamato RCU-412 touchscreen control panel and printer. Product supply is handled by an included Eriez Model 484 vibratory feeder controlled by a sonic level detector for automatic feeding to the weighing system. The machine requires 115 VAC, 60 Hz, single-phase electrical service. Unit was last used with chocolate and is reported in good condition with some spare parts included. Possible applications include accurate weighing and portioning of compatible chocolate, confectionery products, snack foods, candies, nuts, granules, dry food ingredients and other suitable free-flowing products prior to bagging, pouching or other packaging operations.
SPECIFICATIONS

Manufacturer: Yamato Dataweigh

Model: ADW-323-RB

Equipment Type: Multihead combination weigher

Number of Heads: 14

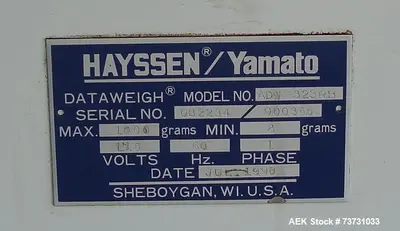

Serial Number: 082234/900355

Year: 1990

Product-Contact Construction: Stainless steel

Weighment Range: Approximately 8 to 1,600 grams

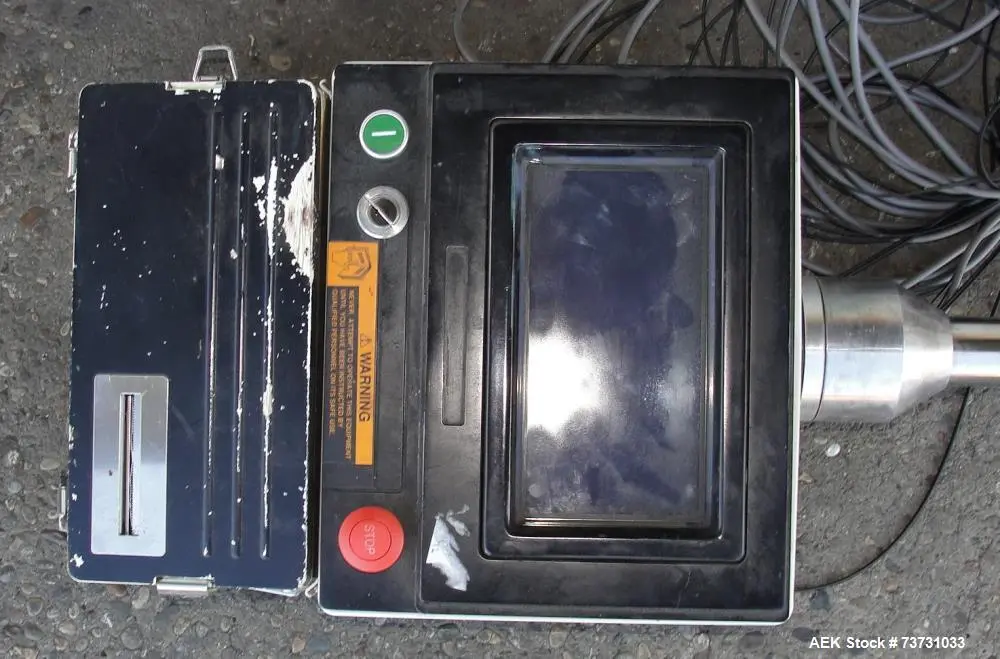

Controls: Yamato RCU-412 touchscreen control panel

Printer: Included

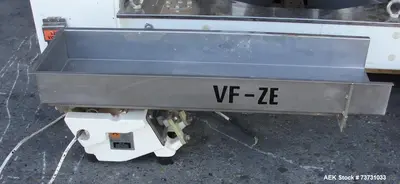

Product Feeder Manufacturer: Eriez

Product Feeder Model: 484

Feeder Type: Vibratory

Product Level Control: Sonic level detector

Electrical Requirements: 115 VAC, 60 Hz, single-phase

Previous Product: Chocolate

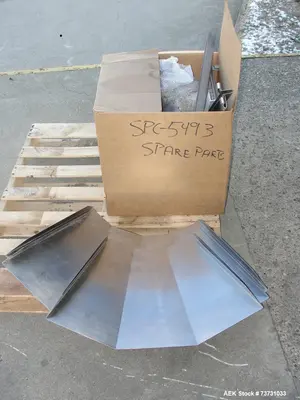

Spare Parts: Some included

Condition: Good

APPLICATIONS

Multihead combination weighing

Portion control

Chocolate portioning

Confectionery weighing

Candy packaging

Snack food weighing

Nut portioning

Dry ingredient weighing

Granule weighing

Food packaging

Automatic batch weighing

Packaging-line product dosing

Premade pouch filling support

Vertical form-fill-seal line feeding

Retail package portioning

SUITABLE PRODUCTS / MATERIALS
Depending on particle size, flowability, stickiness and hopper configuration, this weigher may be suitable for:

Chocolate pieces

Chocolate candies

Confectionery

Candy

Snack foods

Nuts

Seeds

Cereals

Granola

Dried fruit

Dry food ingredients

Granulated products

Free-flowing food products

Other compatible products requiring controlled portion weights

FAQ

WHAT TYPE OF WEIGHER IS THE YAMATO ADW-323-RB?
It is a 14-head multihead combination weigher designed to create accurate target-weight portions from compatible bulk products.

WHAT IS THE WEIGHMENT RANGE?
The unit is capable of dispensing approximately 8 to 1,600 grams per weighment.

HOW MANY WEIGHING HEADS DOES THE MACHINE HAVE?
The system has 14 weighing heads.

WHAT TYPE OF PRODUCT-CONTACT SURFACES DOES IT HAVE?
The machine has stainless steel product-contact surfaces.

WHAT CONTROL SYSTEM IS INCLUDED?
The unit includes a Yamato RCU-412 touchscreen control panel and printer.

DOES THE SYSTEM INCLUDE A PRODUCT FEEDER?
Yes. An Eriez Model 484 vibratory feeder is included.

HOW IS PRODUCT LEVEL CONTROLLED?
A sonic level detector controls the feeder to help maintain product supply to the weigher.

WHAT PRODUCT WAS THE MACHINE LAST USED WITH?
The unit was last used with chocolate.

WHEN WAS THE MACHINE BUILT?
The machine was built in 1990.

WHAT ELECTRICAL SERVICE DOES IT REQUIRE?
The weigher requires 115 VAC, 60 Hz, single-phase electrical service.

ARE SPARE PARTS INCLUDED?
Yes. Some spare parts are included.

CAN THIS WEIGHER BE USED WITH A BAGGER OR POUCH MACHINE?
Potentially. Multihead weighers are commonly installed above compatible vertical form-fill-seal machines, premade pouch fillers and other packaging systems. Integration depends on discharge height, controls and line configuration.

CAN AARON EQUIPMENT HELP DETERMINE IF THIS WEIGHER WILL HANDLE MY PRODUCT?
Yes. Aaron Equipment can help review your product characteristics, target weight, desired package size and production rate to determine whether this Yamato weigher may be suitable.

CAN AARON EQUIPMENT ARRANGE SHIPPING?
Yes. Aaron Equipment can assist with freight, loading and shipping coordination for domestic or international destinations. Contact Aaron Equipment with your delivery location for shipping assistance.
