USED TRAK MACHINE TOOLS TRL1440EX
Overview

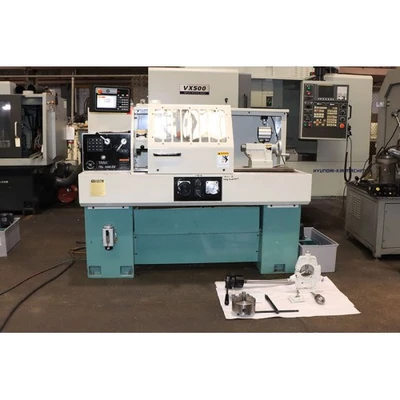

14" x 40" TRAK CNC TOOLROOM LATHE W/MANUAL HANDWHEELS MODEL TRL-1440ELX
S/N:143DH937,2014
Specs
SWING OVER BED WAYS.................... 14"
SWING OVER SADDLE WINGS................ 14"
SWING OVER CROSS SLIDE................. 7.0"
DISTANCE BETWEEN CENTERS............... 40"
CROSS SLIDE TRAVEL..................... 8"
SPINDLE NOSE CAMLOCK................... D1-4"
SPINDLE THROUGH HOLE................... 1.56"
SPINDLE SPEED RANGE(12)................ 60 - 2400 RPM
BED WIDTH.............................. 8.1"
TAILSTOCK SPINDLE TRAVEL............... 5"
TAILSTOCK SPINDLE DIAMETER............. 1.575"
TAILSTOCK SPINDLE TAPER................ #3MT
APPROXIMATE DIMENSIONS................. 73"L x 44"W x 57"H
APPROXIMATE WEIGHT..................... 2,000 LBS.
Equipped With
- PROTO-TRAK MODEL: ELX CONTROL
- CONVERSATIONAL & GRAPHICS, CANNED CYCLES,
- TURNS PARTS MANUALLY OR AUTOMATICALLY
- THREADING
- PRECISION GROUND BALLSCREWS IN THE SADDLE & CROSS SLIDE
- ELECTRONIC HANDWHEELS & JOYSTICK
- HARDENED & GROUND BED
- 3-JAW CHUCK
- 5C LEVER TYPE COLLET CLOSER & NOSE PIECE
- STEADY REST
- 5 HORSE POWER SPINDLE DRIVE
- COOLANT SYSTEM REMOVABLE CHIP PAN
- SPLASH GUARD
CALL MARC @ (732) 390-0006 TO INSPECT UNDER POWER IN NEW JERSEY
