USED 2021 PRECISION MATTHEWS PM-935TS
Overview

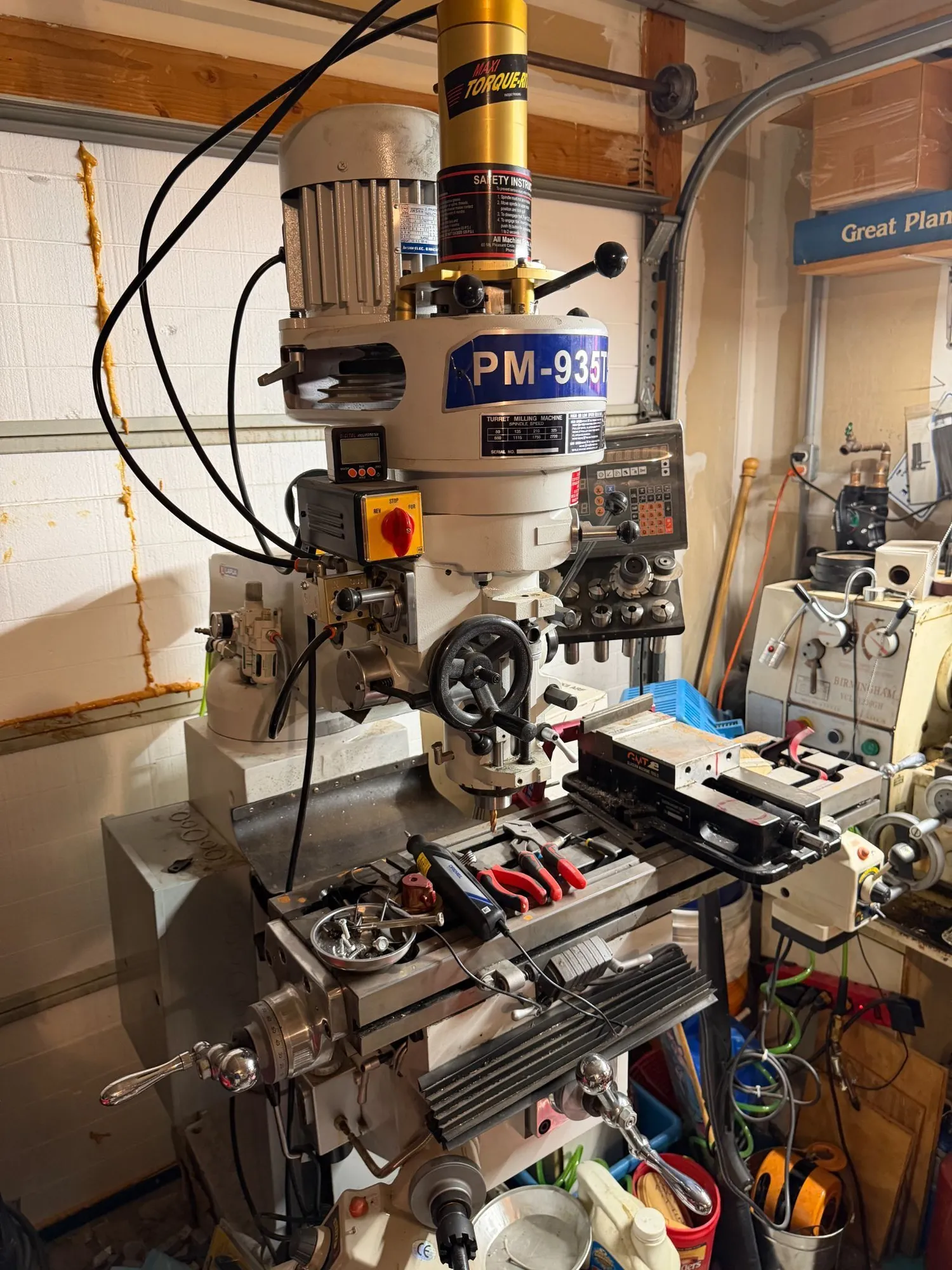

Precision Matthews PM-935TS Vertical Mill, New in 2021
Specs
General Specifications:
Spindle Height: 46.5 in
Spindle Taper: R8
Spindle to Table Maximum: 17"
Spindle to Table Minimum: 2"
Spindle Speed: 4,200 RPM
Runout +/-: 0.0001
Spindle Bearing Class: C7
Spindle Bearing Type: High Precision Angular Contact Bearings, Fully Adjustable
Table Dial Graduations: 0.001"
Table Leadscrew Pitch: 5 TPI (0.200" per turn)
Mill X-Axis Travel: 24"
Mill X-Axis Travel, with X-Axis Power Feed Installed: 22"
Mill Y-Axis Travel: 12"
Mill Z-Axis Travel: 15"
Quill Travel: 5"
X-Axis Table Length: 35"
Y-Axis Table Width: 9"
T-slot size: 5/8", 16mm
Spacing between T Slots: 2.5"
Table Height Minimum: 29.5"
Table Height Maximum: 44.5"
Equipped With
PM 3-Axis DRO
Milling Vise
Power Drawbar
X & Y-Axis Power Feed
All Available Tooling Pictured
