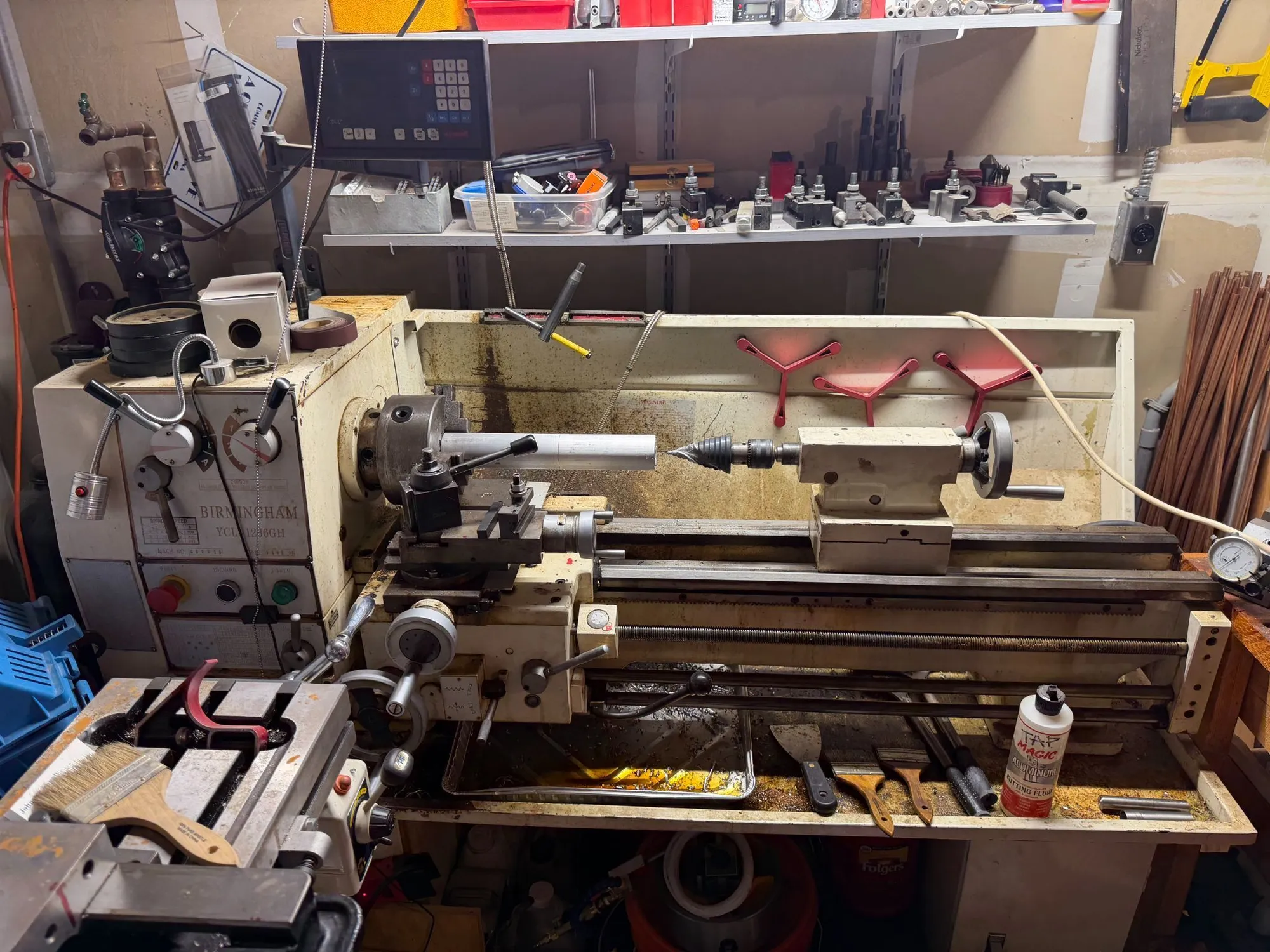

USED 2002 BIRMINGHAM YCL-1236GH

General Specifications:
Max. Swing over Bed: 12"
Distance Between Centers: 36"
Max. Swing over Carriage: 7"
Width of Bed: 7-1/4"
Spindle Nose: D1-4
Diameter of Spindle Thru Bore: 1-1/2"
Taper of Spindle Center: M.T. #5 (reducing sleeve M.T. #5 / M.T. #3)
Spindle Speeds (9 Steps): 70 - 1,400 RPM (70, 200, 220, 270, 360, 600, 800, 1,000, 1,400 RPM)
Longitudinal Feeds: .0011" - .0311" / REV., 40 kinds
Cross Feeds: .0004" - .0105" / REV., 40 kinds
Metric Threads: 0.2 - 4.5 mm, 30 kinds
Inch Threads: 112 - 4 TPI, 40 kinds
Max. Travel of Cross Slide: 6-7/8"
Max. Travel of Top Slide: 3-3/4"
4-way Tool Post Capacity: 3/4" x 3/4"
Diameter of Tailstock Quill: 1-1/4"
Taper of Tailstock Quill Center: M.T. #3
Max. Travel of Tailstock Quill: 4"
Main Motor Power: 2 HP
