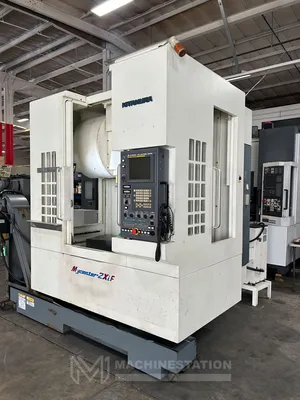

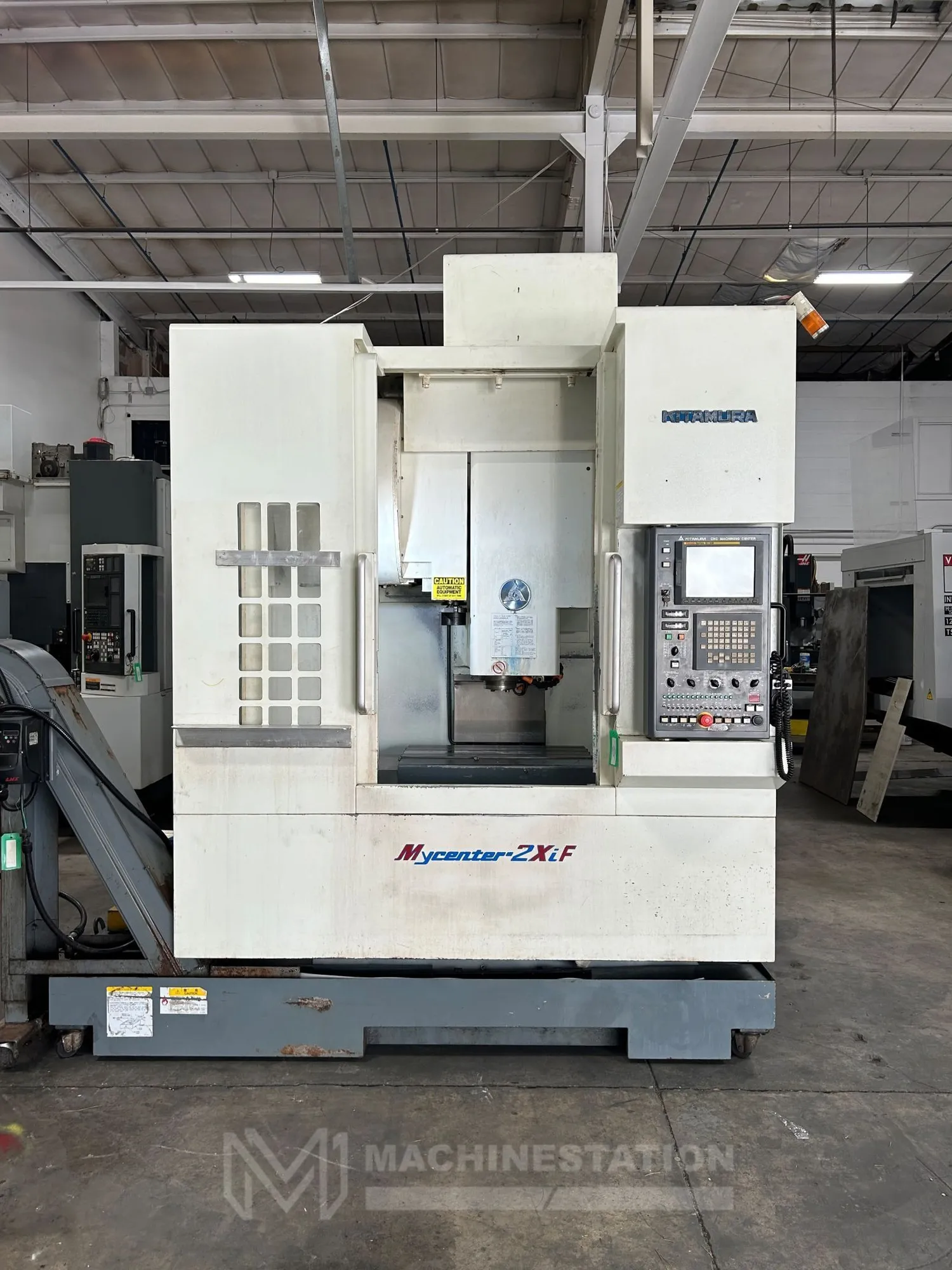

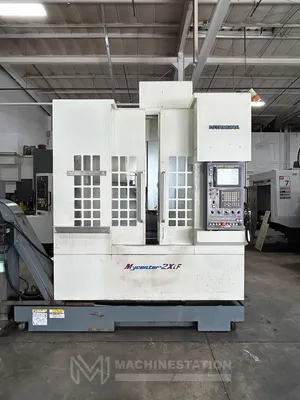

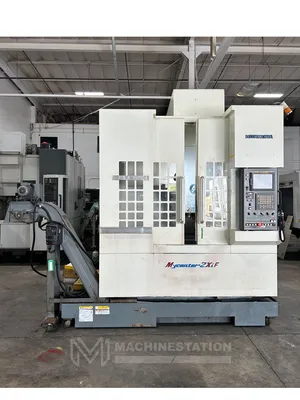

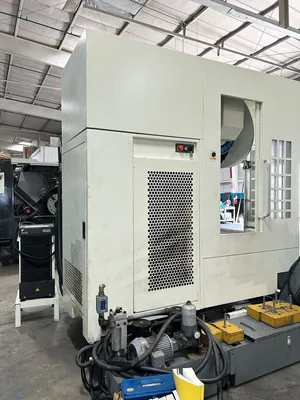

USED 2007 KITAMURA MYCENTER 2XiF

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Features:

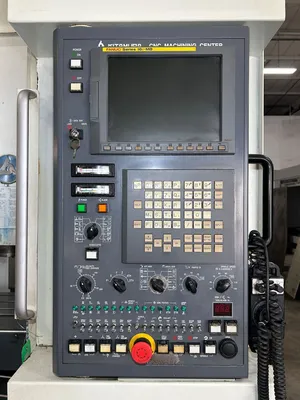

Fanuc 16iM CNC Control
Fast Rapid Traverse
MPG Handwheel Control

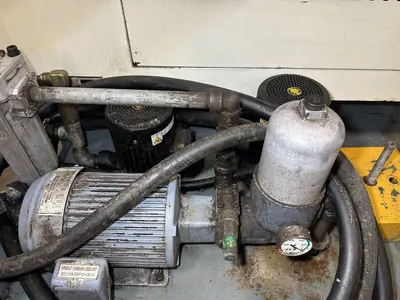

Coolant tank

Travel:
X-Axis: 20.07 inch
Y-Axis: 13.97 inch
Z-Axis: 18.11 inch
Spindle Nose to Table (Min.-Max.): 6.3 inch – 24.4 inch
Rapid Traverse X Axis: 1,969 IPM
Rapid Traverse Y Axis: 1,969 IPM
Rapid Traverse Z Axis: 1,417 IPM

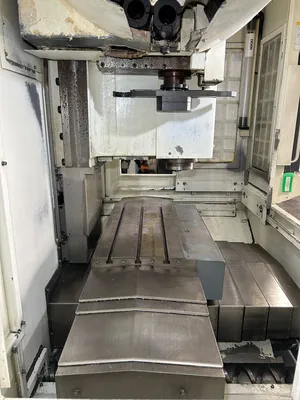

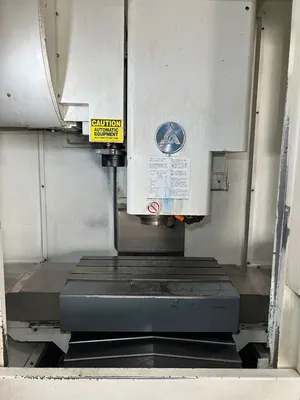

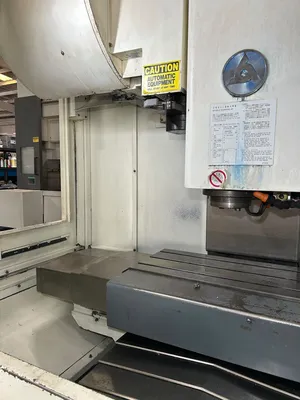

Table:
Length: 30.94 inch
Width: 13.97 inch
Number of T-Slot: 3
Max Weight on Table: 529.2 lbs

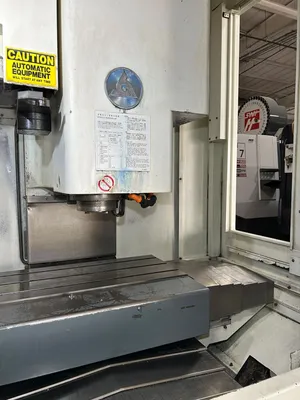

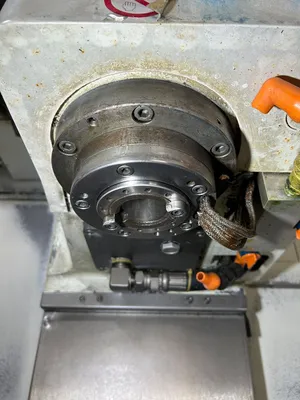

Spindle:
Taper Size: CAT-40
Speed Range: 20,000 RPM
Spindle Power: 15 HP

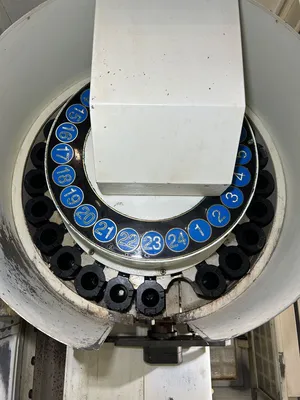

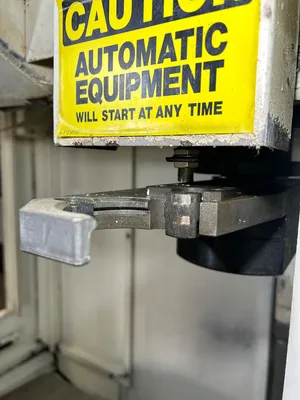

Automatic Tool Changer:
Capacity: 24 Tools
Max Tool Weight: 17.63 lbs
Max Tool Dia: 3.14 inch
Max Tool Length: 18.1 inch

General:

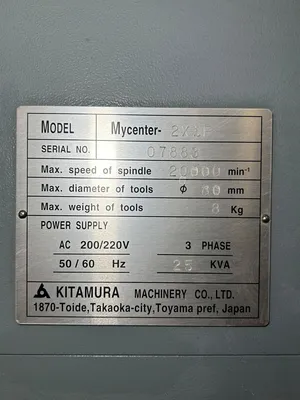

Power: 25kva / 200/220v / 50/60 Hz / 3-Phase
Overall Dimensions: 98 inch x 93.5 inch x 111.2 inch High
Weight: 9,680 lbs. Approx.
