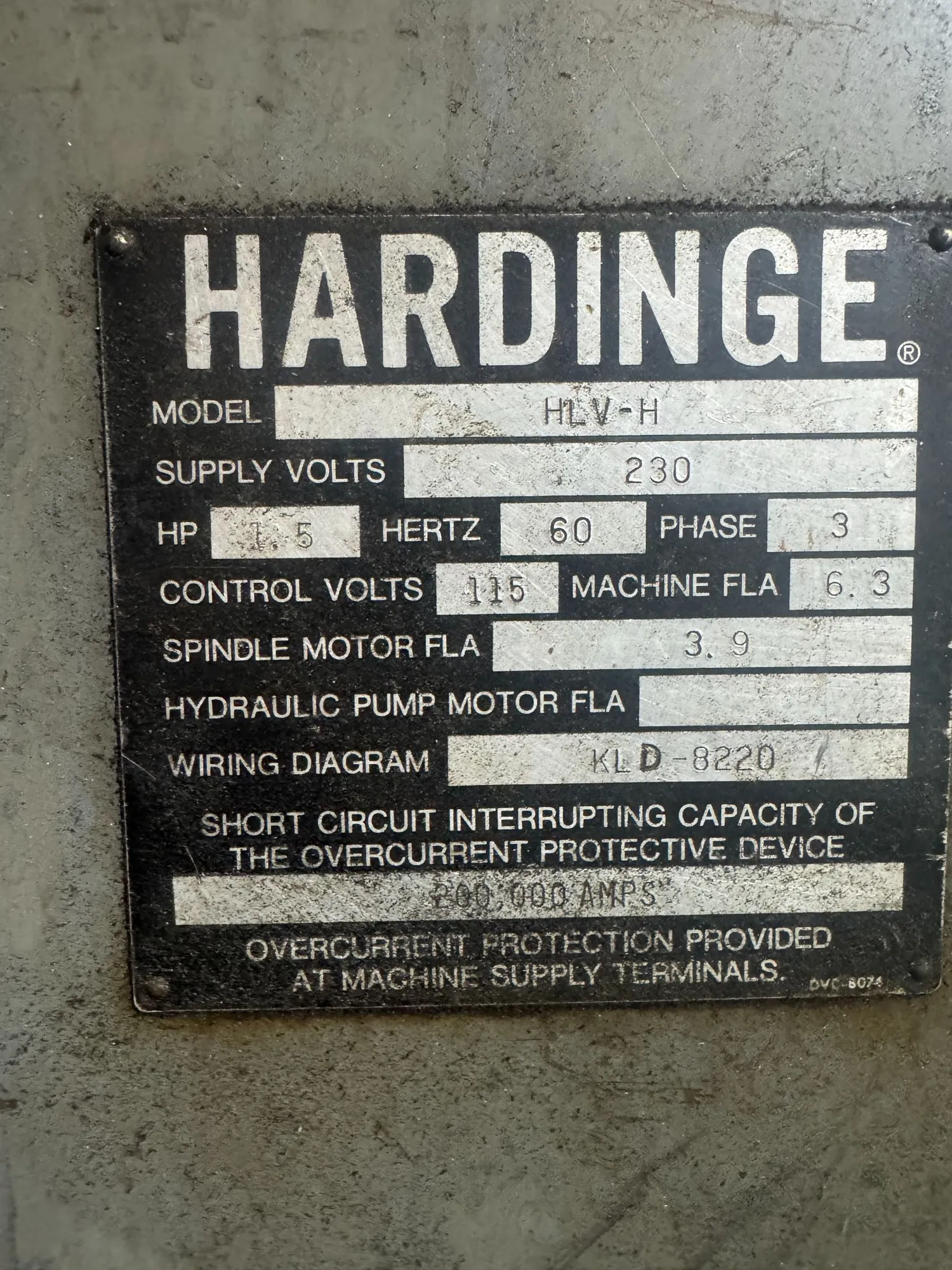

USED 1982 HARDINGE HLV-H

Hardinge HLV-H Tool Room lathe

Stock# R897
Model HLV-H
Year 1982

Capacities
Swing Over Bed 11 in (279.4 mm)
Swing Over Cross Slide 6 in (152.4 mm)
Swing Over Carriage Pad 9 in (228.6 mm)
Distance Between Centers 18 in (457.2 mm)
Power Chucking 1-3/8 in (34.9 mm)
5C Collet Capacity (Round) 1-1/16 in (26.9 mm)
Step Chuck Capacity 1-1/16 in to 6 in (26.9 mm to 152.4 mm)
Spindle & Headstock
Spindle Nose Construction Hardinge Tapered
Spindle Speed Range 125 to 3000 RPM (Infinitely Variable)
Spindle Motor 1.5 HP Two-Speed (Dual Voltage 230/460V typical)
Spindle Brake Electric Solenoid Brake
Feeds & Threading
Carriage Feed Range 1/4 to 7 in/min (6.35 to 177.8 mm/min)
Cross Slide Feed Range 3/16 to 4 in/min (4.76 to 101.6 mm/min)
Feeding System Independent DC Motor Feed System with Variable Control
Quick-Change Gear Box Range 11 to 108 TPI (Standard English Threads)
Lead Screw Diameter 1 in (25.4 mm) - 8 TPI
