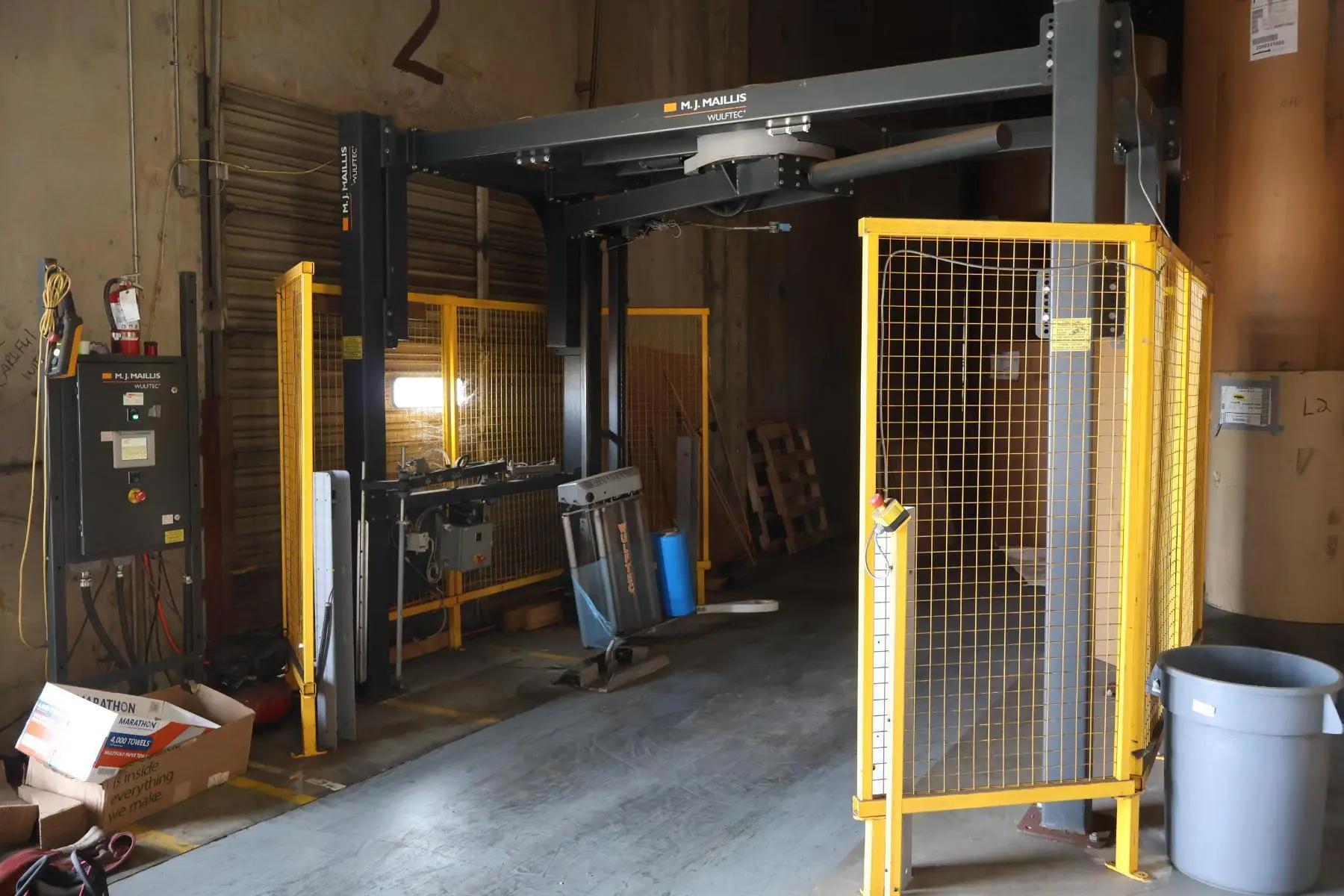

USED 2007 MJ MAILLIS WULFTEC WRTA-200

Automatic Rotary Arm Stretch Wrapper
Non-Conveyorized, Heavy-Duty, Self-Supporting
OEM: M.J. Maillis Wolftec
Model: WRTA-200
DOM: April 2007
Electrical Requirements: 120 Volt, 1 Phase, 60 Cycle, 15A
Air Requirements: 3 CFM @ 80 PSI

Features & Specifications:
... Allen Bradley Micro800 Series PLC
...Production Rate: 50 loads/hr.
...Load Sizes:
......Maximum: 56”W x 56”L x 80”H
......Minimum: 36”W x 36”L x 30”H
...Rotary Arm Drive:
...... Heavy Duty 25" Ring Gear w/ Pinion Gear Drive
...Film Carriage Drive:
...... 2-#50 Carriage Lifting Chains
......Dual 1/2" CRS Ways w/ UHMW-PE Carriage Glides
......Power Track for Efficient Wire Guiding
... Automated Cut/Clamp & Wipe System
...Pulse Controlled Cutter
...20" No-Thread Powered Pre-Stretch Carriage
...Film Force Release for Easy Pull @ Cycle Start/End
...50% - 300% Pre-Stretch Ratio
...Electronic film tension control with analog sensor
...Heavy Duty Structural Steel Construction
...Free Standing Integrated Leg Design
...Four (4) 6" x 6" floor mounting legs
...Auto-Height Sensing Photo Eye
...Manual Carriage Up/Down Function
...Variable rotary arm speed (12RPM)
...Separate Up and Down Carriage Speeds
...Separate Top and Bottom Wrap Selectors
...Reinforced Wrap/Manual Rotation Control
...Positive Arm Alignment Controlled by Proximity Sensor
...Spiral Up or Spiral Switch
...Film Force to Load Control
...Emergency Stop Sensor for Arm Path Obstruction
...Mode Switch: Manual or Automatic
...Separate Station on Tower Front w/ Clamp Jog
...Air Compressor

System Dimensions (approx.): 142” x 84” x 118”
Weight (approx.): 3,000 lbs.

Advertised specifications and functionality history is taken from 1st-hand inspection, owner interview, manuals, and OEM research. While specifications are assumed accurate, confirmation by purchasing entity is always recommended.

Functionality Notes and History:

Bought in 2016, 2nd owner, originally purchased to wrap recycled car batteries. Car battery business evaporated; only use periodically now. Has been good runner. Replaced bearings in wrapper arm assembly several years ago. Does about 10 pallets per week now. Video imbedded.

CALL FOR DETAILS, SCHEDULE INSPECTION
WE ARE OPEN TO OFFERS

EQUIPMENT LOCATION: Portland, OR

Equipment is available for inspection; under power.
Buyer responsible for equipment disassembly, loading expenses.
Buyer responsible for freight logistics and expenses.
MD Equipment Services will provide rigging, loading quotations.

Contact MD Equipment Services LLC to schedule inspection or arrange purchase details.
