Used

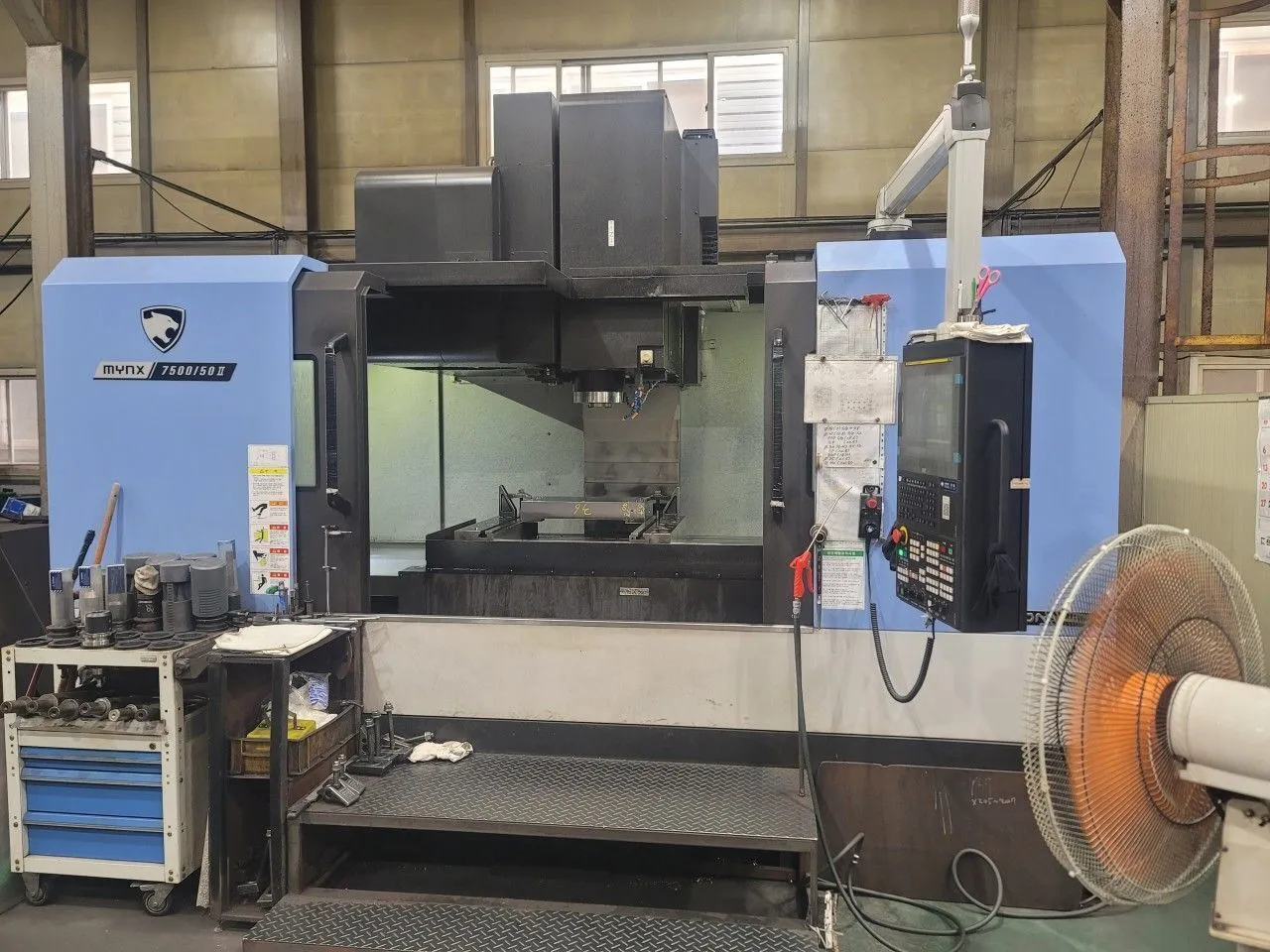

USED 2023 DN SOLUTION MYNX 7500/50 II

Illinois, United States
153Listings|141Followers
Overview
Vertical Machining Centers

2023 DOOSAN MYNX 7500/50II CNC Vertical Machining Center, equipped with Fanuc Series I Control, thru spindle coolant, and chip conveyor. Features a 60" x 29.5" table, box ways, 6,000 RPM spindle, and 40 position ATC. Ideal for high precision tasks.

Specs
Number Of Tables / Pallets
1
1
Table-L
63"
1,600.2 mm
Table-W
29.5"
749.3 mm
Weight on Table
2,011 lb
912.2 kg
Spindle Nose to Table Top
7.9" ~ 32.4"
7.9" ~ 32.4"
X - Axis Travel
60"
1,524 mm
Y - Axis Travel
30.3"
769.62 mm
Z - Axis Travel
24.6"
624.84 mm
Rapid Traverse Rate - X
1,182 in/min.
30 m/min.
Rapid Traverse Rate - Y
1,182 in/min.
30 m/min.
Rapid Traverse Rate - Z
945 in/min.
24 m/min.
Spindle Speed
6,000 RPM
6,000 RPM
Spindle Taper
50
50
Number of Gear Ranges
2
2
Main Motor
30 hp
22.4 kW
Automatic Tool Changer
40
40
Tool Diameter
4.9", 8.7"
4.9", 8.7"
Tool Length
13.8"
350.52 mm
Tool Weight
44 lb
20 kg
Machine Weight
29,800 lb
13,517.1 kg
Automatic Tool Changer
24
24
Control
CNC (FANUC SERIES I PLUS CNC COLOR CONTROL)
CNC (FANUC SERIES I PLUS CNC COLOR CONTROL)
Equipped With

DOOSAN FANUC SERIES I CNC CONTROL

AICC II 200 BLOCKS
THRU SPINDLE COOLANT
40 ATC
CHIP CONVEYOR
RIGID TAPPING
AUTO POWER OFF
PORTABLE HAND HELD MPG
15" COLOR CRT
BIG PLUS SPINDLE
AIR BLOWER
SPINDLE CHILLER
DOOSAN TOOL LOAD MONITORING SYSTEM
400 PAIRS TOOL OFFSETS
EMBEDDED ETHERNET FUNCTION
2MB PROGRAM STORAGE / 5120 METERS
DOOSAN EASY OPERATING SYSTEM
