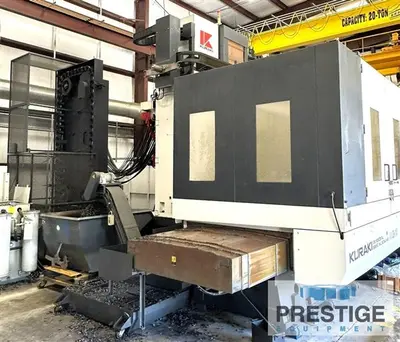

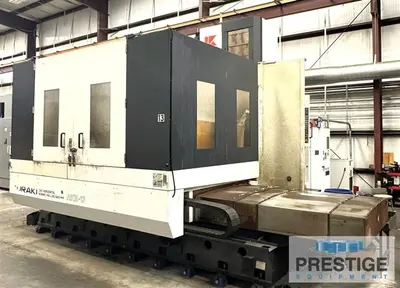

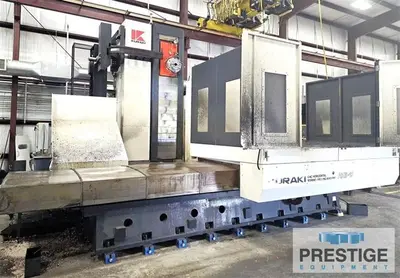

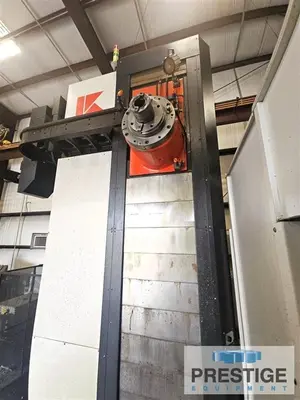

USED 2015 KURAKI AKB-13

SPECIFICATIONS:
Spindle Diameter: 5.12"
Spindle Taper: CAT #50 Big Plus
Vertical Travel, Y-Axis: 78.74"
Table Travel, X-Axis: 118.11"
Column Infeed Travel, Z-Axis: 62.99"
Spindle Axial Travel, W-Axis: 27.56"

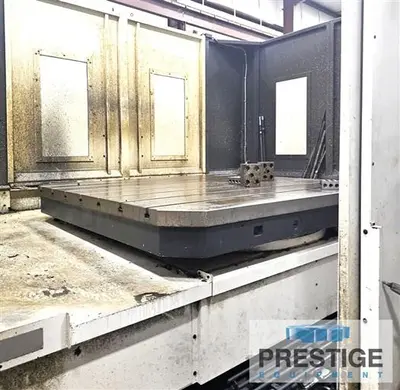

Built in Rotary Table: 62.99" x 78.74"
Table Loading Capacity: 22,000 Lbs.
Table Indexing: 0.001 Deg.
Distance from Spindle to Table: 0-78.74"
Distance from Table Center to Spindle . 31.50"-94.49":
Spindle Speeds: 5-3000 RPM
Rapid Traverse, X,Y,Z Axes: 393.70 IPM
Feed Rate: 0.04-157.48 IPM
Approximate Floor Space: 296" x 280" x 189"
Approximate Machine Weight: 77,000 Lbs.

Equipped With:

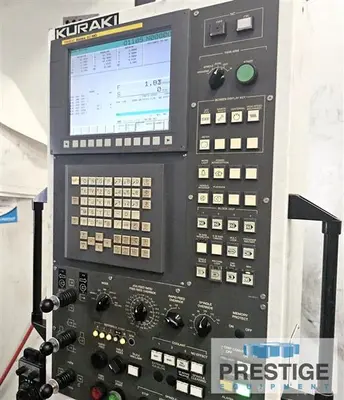

Fanuc Oi-MD CNC Controls
60 Station Automatic Tool Changer
62.99" x 78.74" Built in B-Axis Rotary Table
Thru Spindle Coolant

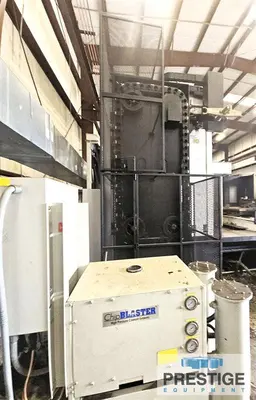

Chip Blaster 1000 PSI

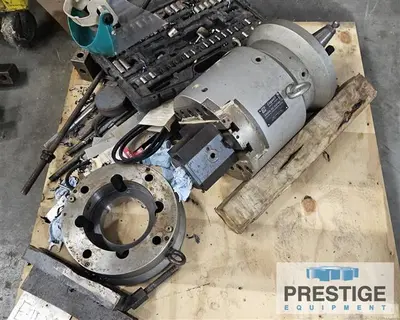

Cogsdill ZX300-TC CAT #50 Facing & Boring Tool
Rigid Tapping
Helical Interpolation
High Splash Guards
Barnes Chip/Coolant Separator
Chip Conveyor
40 HP Main Spindle Motor

NOTE:
Inspect in Plant Under Power, (2) Available

Features:
Fanuc Oi-MD CNC Controls
60 Station Automatic Tool Changer
62.99" x 78.74" Built in B-Axis Rotary Table
Thru Spindle Coolant
Chip Blaster 1000 PSI
Cogsdill ZX300-TC CAT #50 Facing & Boring Tool
Chip Conveyor
40 HP Main Spindle Motor
