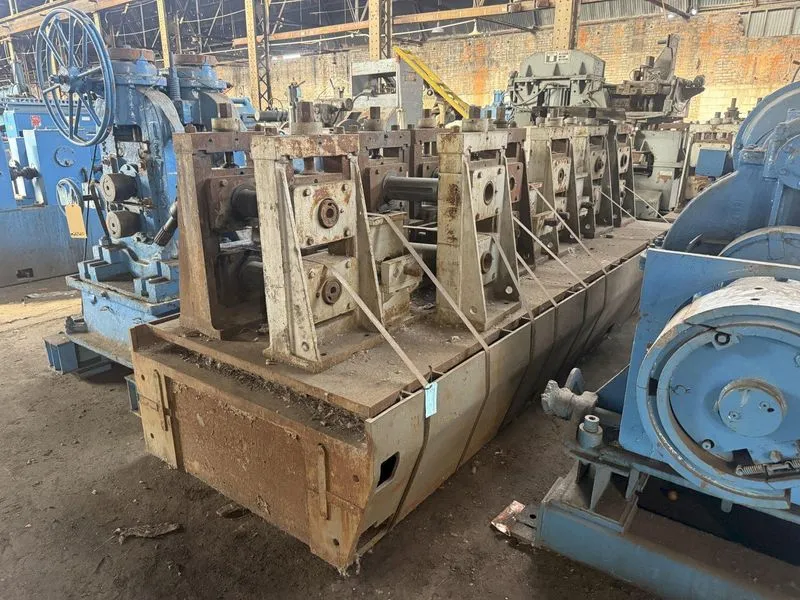

20 STAND X 4.5" ARBOR X 15" ROLLSPACE TUREK & HELLER ROLLFORMER / TUBE PIPE MILL: YOBRO #26392

ROUND TUBE/PIPE SIZES...................: 1" TO 4.5" OD
THICKNESS RANGE.........................: .125" TO .4"
MAXIMUM STRIP WIDTH.....................: 15"
MAXIMUM WEIGHT..........................: 20,000 LB
COIL ID RANGE...........................: 20" - 24"
MAXIMUM LINE SPEED......................: 100 FPM
ENTRY SECTION:
DOUBLE END UNCOILER WITH HYDRAULIC EXPANSION AND DRAG BRAKE
HOLD DOWN ROLLS, TOP OR BOTTOM
FEED UP DRIVE
PEELER, TOP OR BOTTOM
7 ROLL FLATTENER WITH EDGE GUIDES AND ENTRY SIDE POWERED PINCH ROLLS

FORMING SECTION:
4.5" DIAMETER HORIZONTAL SHAFTS
(8) FORMING STANDS WITH ADUSTMENT, 75 HP INFINITELY VARIABLE SPEED DRIVE
(3) SIDE IDLER ROLL STANDS WITH ADUSTMENT
(3) FINN PASS STANDS WITH ADJUSTMENT, 75 HP INFINITELY VARIABLE SPEED DRIVE
SIDE IDLER ROLL STANDS WITH ADJUSTMENT
UNIVERSAL DRIVES FOR ALL ROLLS

SIZING SECTION:
4.5" DIAMETER HORIZONTAL SHAFTS
(3) SIZING STANDS WITH ADJUSTMENT, 75 HP INFINITELY VARIABLE SPEED DRIVE
(3) SIDE IDLER ROLLS WITH ADJUSTMENT
UNIVERSAL DRIVES FOR ALL ROLLS

MAIN MOTOR WITH VARIABLE SPEED DRIVE, (3)-60 HP MOTORS (TOTAL 180 HP)
ELECTRICAL CONTROL CUBICAL
OPERATOR CONTROL CONSOLES

Brand
TUREK & HELLER
Type
Roll Formers
Stock No.
26392
