USED BIESSE ROVER

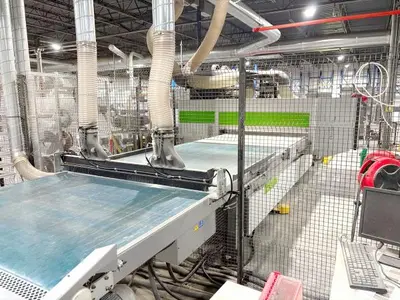

3-axis CNC "Nesting" work cell (XYZ + C-axis prepositioned) composed of:
Automatic loading (type A 1563) also for thin panels, with lifting table, mobile arm (NC positioning sweeping arm) with vacuum suction cups

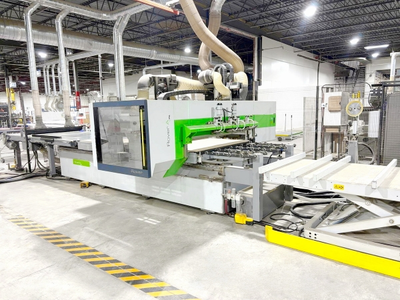

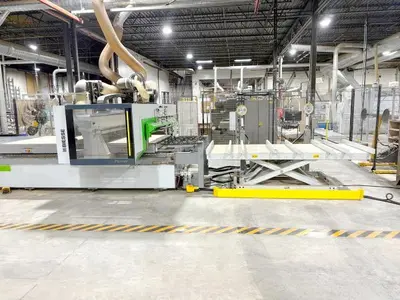

Biesse Mod. Rover A - FT 1531 3-axis CNC "Nesting" work center
Automatic unloading (type 1531) with motorized belt (length 3,740 mm)

Biesse Rover A - FT
Mobile gantry machine (on X-axis)

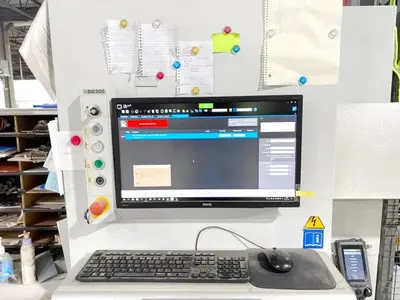

CN (WRT) with bSolid software (3D CAD-CAM) + bNEST (SOPHIA - IoT Connection)
Bumper work head protection enclosure + FT solid table workbench
Automatic tool change system with 2 tool magazines
1st tool magazine with 16 stations (on X-axis) + 2nd revolver with 8 stations (on Y-Axis)
Useful Working Field (Max. X - Y - Z): 3,100 x 1,560 x 170 mm
Fields / No. 8 work areas (Multizone) - Vacuum pumps: 3 x 250 m3h
Electric panel and controls separated from the machine body - Total installed power 31.21 kW

Workings Groups (upper):
No. 14 independent vertical drilling spindles (7 in X + 7 in Y)
No. 4 independent horizontal drilling spindles (2 in X + 2 in Y)
BH18 drilling head motor power: approx. 3 kW
No. 1 HSK F63 vertical electro-spindle, 13.2 kW

These machines are offered as a complete package and part of a plant liquidation. Call for details.
