USED PEDDINGHAUS PEDDIWORKER

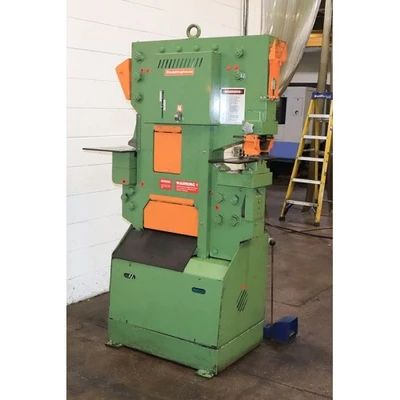

PEDDINGHAUS 100 TON HYDRAULIC IRONWORKER MODEL PEDDIWORKER 1, MFG. 2009
AML Stock #003032
100 TON PEDDINGHAUS HYDRAULIC IRONWORKER MODEL
PEDDIWORKER 1
S/N 4090023009004, NEW 2009
Punching:
Maximum punch capacity ........ 100 TONS
Depth of throat ............... 10"
Working height ................ 46-1/4"
Stroke, variable .............. 3/8" to 1-5/8"
Speed at 3/4" stroke .......... 26 S.P.M.
Standard punch diameter ....... 1-1/4" in 7/8"
Shearing:
Angles at 90 degrees .......... 5" x 3/8"
Angles at 45 degrees .......... 5" x 1/2"
Rounds ........................ 1-5/8"
Squares ....................... 1-5/8"
Working Height ................ 47-1/4"
Flat Shear .................... 16" x 3/4"
Length of Cut ................. 16-3/4"
Working Height ................ 31-1/2"
Notching:
Flat Bar ...................... 1/2"
Angle Iron .................... 3" x 3/8"
Channels in Flange ............ 3" - 5"
I-Beams in Flange ............. 3" - 6"
Working Height ................ 46-1/4"
Width & Depth ................. 2" x 2-3/4"
