USED FRYMA VME-2400

Manufacturer Information
Manufacturer: Fryma
Model: VME-2400
Equipment Type: Vacuum mixer
Working Capacity: 2,400 liters
Fabrication Number: M10510
Previous Application: Toothpaste
Condition: Good

Fryma manufactures mixing and processing equipment used for liquid, semi-viscous, and viscous product applications. This VME-2400 is configured as a 2,400 liter working capacity vacuum mixer with jacketed vessel construction, multiple agitation systems, and a pharmaceutical-grade polished interior.

Main Product Description

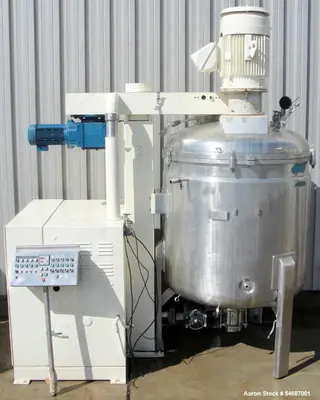

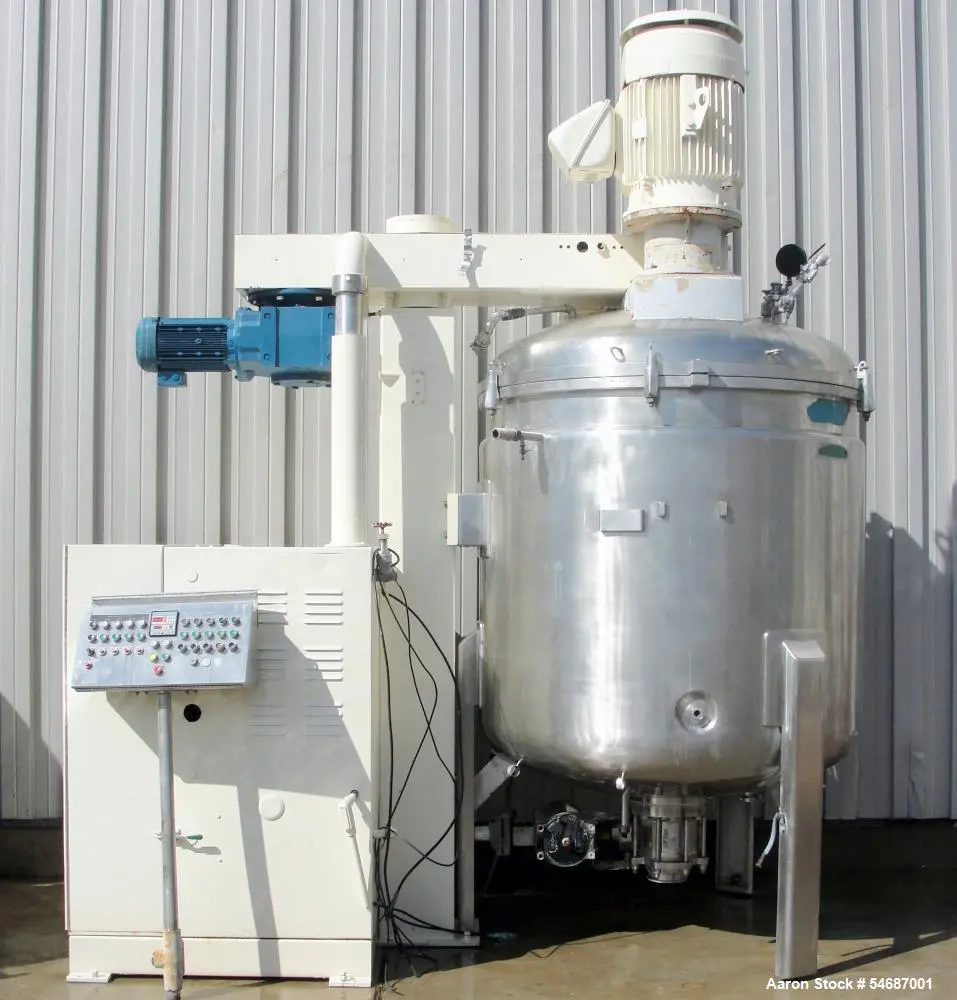

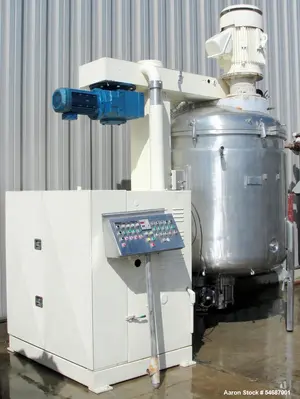

Used Fryma Model VME-2400 vacuum mixer with 2,400 liter working capacity, jacketed vessel construction, pharmaceutical-grade polished interior, and dual agitator drive systems. The vessel measures 63" overall diameter with jacket and 101" overall height to the top of the lid including legs. Interior dimensions are 61" diameter with 54" straight side, 11" dome top, and 11" dish bottom. The interior and jacket have working temperatures of 150°C, with the vessel interior rated -1/+1 bar and jacket rated 2.5 bar. Agitation includes a 7.5 HP motor driving a center 3-prop agitator and scrape agitator through a chain drive, plus a 50 HP motor driving a disperser-type agitator positioned off-center. The top includes an 8" flanged clamped opening, 6" glass inspection port with light, 2" sanitary fitting, 1.5" sanitary fitting, and two 1" threaded fittings. Bottom discharge is through a 6" sanitary connection with pneumatically operated valve. Fabrication number M10510. Requires 230/460 VAC, 3-phase electrical supply. Previously used for toothpaste and listed in good condition.
Specifications
• Manufacturer: Fryma
• Model: VME-2400
• Equipment type: Vacuum mixer
• Working capacity: 2,400 liters
• Overall height with lid including legs: 101"
• Height with lid removed: 87"
• Overall diameter with jacket: 63"
• Interior diameter: 61"
• Interior straight side: 54"
• Dome top: 11"
• Dish bottom: 11"
• Interior working temperature: 150°C
• Jacket working temperature: 150°C
• Interior pressure rating: -1/+1 bar
• Jacket pressure rating: 2.5 bar
• Center agitator motor: 7.5 HP
• Center agitation: 3-prop agitator
• Scrape agitator: Chain driven
• Disperser motor: 50 HP
• Disperser configuration: Off-center

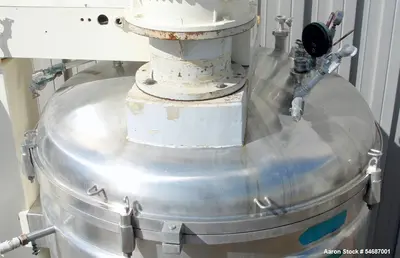

• Top opening: 8" flanged opening, clamped shut
• Inspection port: 6" glass port with light
• Top sanitary fitting: 2"
• Top sanitary fitting: 1.5"
• Additional top fittings: (2) 1" threaded
• Interior finish: Polished to pharmaceutical grade

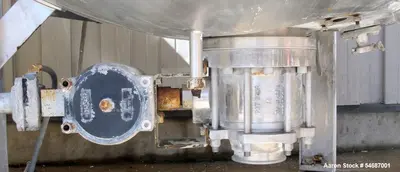

• Bottom discharge: 6" sanitary
• Discharge valve: Pneumatically operated
• Fabrication number: M10510
• Electrical requirements: 230/460 VAC, 3-phase
• Previous application: Toothpaste
• Condition: Good

Applications

• Vacuum mixing
• Toothpaste manufacturing
• Personal care product processing
• Cosmetic product processing
• Pharmaceutical processing
• Sanitary product mixing
• Viscous product mixing
• Semi-viscous product mixing
• Heated or cooled mixing processes
• Dispersion applications
• Vacuum processing of compatible products

Suitable Products / Materials

• Toothpaste
• Compatible personal care products
• Compatible cosmetic products
• Compatible pharmaceutical products
• Creams
• Pastes
• Semi-viscous products
• Viscous products
• Compatible dispersions
• Other products suitable for the vessel's existing agitation, temperature, pressure, and sanitary configuration

Product Details

• 2,400 liter working capacity
• Jacketed vacuum mixing vessel
• Pharmaceutical-grade polished interior
• -1/+1 bar interior pressure rating
• 2.5 bar jacket pressure rating
• 150°C interior working temperature
• 150°C jacket working temperature
• 7.5 HP center agitator drive
• Center 3-prop agitator
• Chain-driven scrape agitator
• 50 HP off-center disperser-type agitator
• 8" flanged top opening
• 6" glass inspection port with light
• Multiple sanitary and threaded top fittings
• 6" sanitary bottom discharge
• Pneumatically operated discharge valve
• 230/460 VAC, 3-phase electrical
• Previously used for toothpaste
• Good condition

FAQs

• What is the working capacity of the Fryma VME-2400?
This Fryma VME-2400 vacuum mixer has a working capacity of 2,400 liters.
• Is this Fryma mixer vacuum rated?
Yes. The vessel interior has a pressure rating of -1/+1 bar.
• Is the vessel jacketed?
Yes. The vessel is jacketed. The jacket has a 2.5 bar pressure rating and a listed working temperature of 150°C.
• What agitation systems are included?

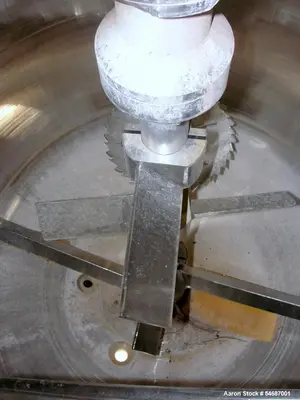

The mixer has a 7.5 HP drive for a center 3-prop agitator and scrape agitator through a chain drive. A separate 50 HP motor drives an off-center disperser-type agitator.
• Does this mixer have a scrape agitator?
Yes. A scrape agitator is driven through the 7.5 HP center agitation system using a chain drive.
• What is the interior finish?
The interior is polished to pharmaceutical grade.
• What is the discharge configuration?
The vessel has a 6" sanitary bottom discharge with a pneumatically operated valve.
• What was this Fryma VME-2400 previously used for?
The mixer was previously used for toothpaste processing.
• What are the electrical requirements?
The unit requires a 230/460 VAC, 3-phase electrical supply.
• What is the condition of this Fryma vacuum mixer?
The unit is listed in good condition.
