USED HEINKEL HF300

Manufacturer Information

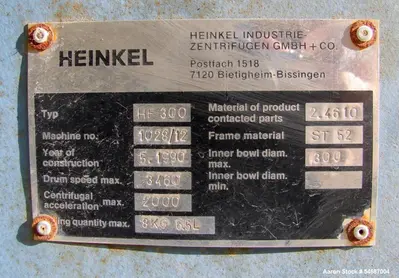

Manufacturer: Heinkel
Model: HF300
Type: HF300
Equipment Type: Inverting Filter Centrifuge
Material of Construction: Hastelloy C4
Serial Number: 1028/12
Condition: Used; appears to have seen little or no operation, although operating history cannot be confirmed
Main Product Description

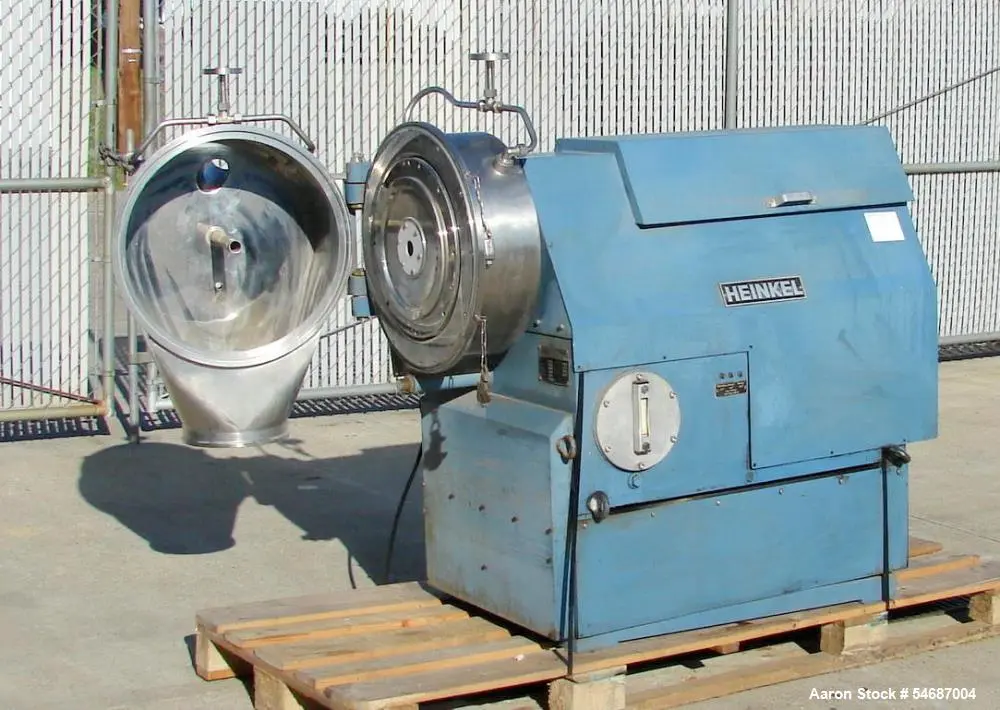

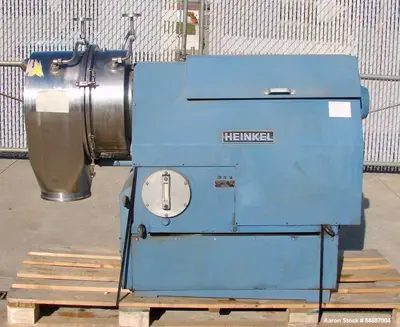

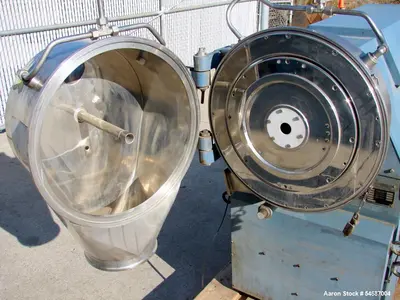

Used Heinkel HF300 Hastelloy C4 inverting filter centrifuge designed for contained batch solid-liquid separation using a filter medium that retains solids during centrifugation and then inverts for discharge of the dewatered product. The centrifuge features an approximately 11.81-inch diameter bowl with approximately 1.07 square feet of filter area and approximately 1.7 gallons of product capacity. The bowl is driven by a 7.5 HP hydraulic motor and operates at approximately 3,460 rpm, generating up to 1,500 x g centrifugal force. Constructed with Hastelloy C4 for compatible corrosion-resistant processing applications, the unit measures approximately 80 inches long x 36.5 inches wide x 42 inches high and requires 460V, 3-phase electrical service. Shipping weight is approximately 5,000 pounds. The unit appears to have seen little or no operation, although operating history cannot be confirmed. Possible applications include pharmaceutical processing, fine chemical production, specialty chemical processing, dewatering, filtration, and contained solids separation of compatible process products.
Specifications
• Manufacturer: Heinkel
• Model: HF300
• Type: HF300
• Equipment Type: Inverting Filter Centrifuge
• Material of Construction: Hastelloy C4
• Serial Number: 1028/12
• Bowl Diameter: Approximately 11.81"
• Filter Area: Approximately 1.07 sq ft
• Product Capacity: Approximately 1.7 gallons
• Bowl Speed: Approximately 3,460 rpm
• Maximum Centrifugal Force: Up to 1,500 x g
• Bowl Drive: Hydraulic motor
• Motor Horsepower: 7.5 HP
• Electrical: 460V
• Phase: 3-phase
• Overall Length: Approximately 80"
• Overall Width: Approximately 36.5"
• Overall Height: Approximately 42"
• Shipping Weight: Approximately 5,000 lb
• Condition: Used; appears to have seen little or no operation
• Operating History: Cannot be confirmed
Applications
• Pharmaceutical solid-liquid separation
• Fine chemical processing
• Specialty chemical processing
• Batch filtration
• Product dewatering
• Solids separation
• Contained centrifugation
• Compatible corrosion-sensitive process applications
• Dewatering of compatible crystalline or particulate products
• Batch processing requiring filter cloth inversion discharge
Suitable Products / Materials
• Pharmaceutical process solids
• Fine chemical products
• Specialty chemical products
• Compatible crystalline products
• Compatible particulate slurries
• Process slurries requiring filtration and dewatering
• Corrosive process materials compatible with Hastelloy C4
• Products suitable for contained batch centrifugation
FAQs
• What type of centrifuge is the Heinkel HF300?
The HF300 is an inverting filter centrifuge designed for batch solid-liquid separation using a filter medium that retains solids during centrifugation and then inverts for product discharge.
• What is the material of construction?
The unit is constructed with Hastelloy C4.
• What is the bowl size?
The bowl diameter is approximately 11.81 inches.
• What is the product capacity?
The listed product capacity is approximately 1.7 gallons.
• What is the filtration area?
The centrifuge provides approximately 1.07 square feet of filter area.
• How fast does the bowl operate?
The bowl operates at approximately 3,460 rpm.
• What centrifugal force can the unit generate?
The centrifuge is rated to produce up to approximately 1,500 x g centrifugal force.
• How is the bowl driven?
The bowl is driven by a 7.5 HP hydraulic motor.
• What electrical service is required?
The listed electrical requirement is 460V, 3-phase.
• What condition is the centrifuge in?
The unit is used and appears to have seen little or no operation. Its operating history cannot be confirmed.
• What applications is this Heinkel centrifuge suitable for?
Possible applications include pharmaceutical processing, fine chemical production, specialty chemical processing, filtration, dewatering, and contained solid-liquid separation of compatible products.
• Can Aaron Equipment help with shipping this Heinkel HF300 centrifuge?
Yes. Aaron Equipment can assist with coordinating freight and logistics for industrial process equipment. The listed shipping weight is approximately 5,000 pounds, and shipping requirements can be evaluated based on equipment location, destination, and loading requirements.
• How can Aaron Equipment help determine whether this centrifuge fits my process?
Aaron Equipment can provide available equipment information and help buyers review the unit based on batch capacity, bowl speed, centrifugal force, materials of construction, filter area, electrical requirements, and process needs. Final compatibility should be confirmed for the specific product and operating conditions.
