USED WALKER PZ-C3-PV

MANUFACTURER INFORMATION
Walker manufactures stainless steel process vessels, tanks and mixing equipment used in food, dairy, beverage, pharmaceutical, cosmetic and general processing applications. Jacketed processor kettles with scrape agitation are commonly used for products requiring controlled mixing, heating and cooling, especially where wall-scraping action helps improve heat transfer and reduce product buildup.
PRODUCT DESCRIPTION

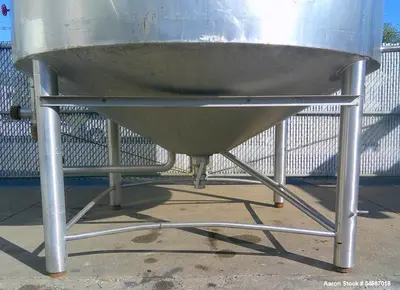

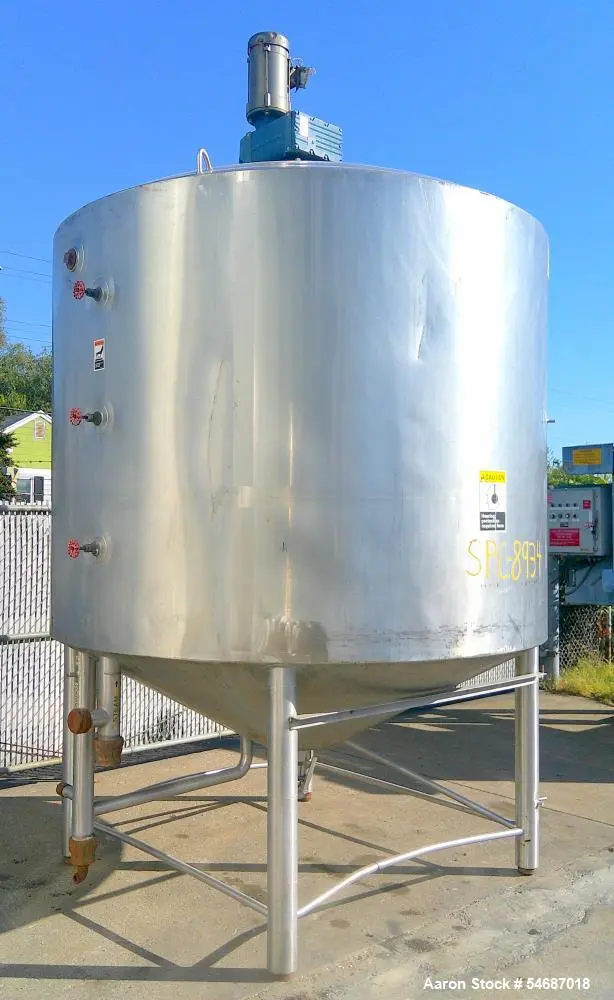

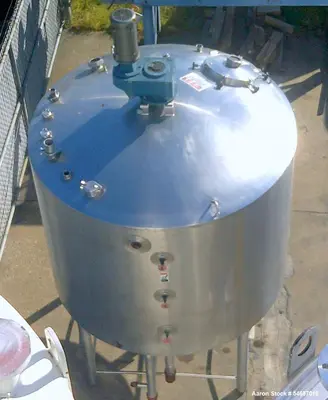

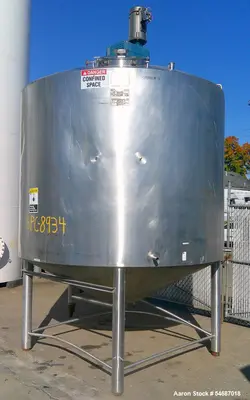

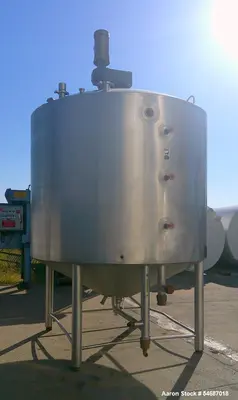

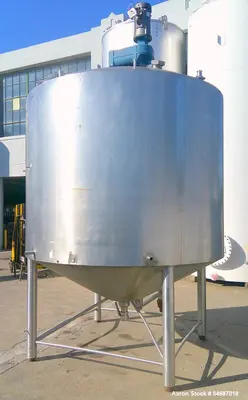

Used Walker Model PZ-C3-PV 2,000-gallon 304 stainless steel jacketed processor kettle with dished top, coned bottom and scrape agitation. The vessel measures approximately 96" outside diameter x 72" straight side and is rated for 10 PSI at 250°F. The three-zone jacket is equipped with 2" valves and is rated for heating service at 15 PSI at 250°F and cooling service at 100 PSI at 100°F. Jacket connections include a 3" condensate connection with 4" outlet. Product discharge is through a 3" tri-clamp bottom outlet. The top head includes a 19" hinged manway with 4" sight glass, one 6" threaded nozzle, one 3" threaded nozzle, two 3" tri-clamp nozzles and two 2" tri-clamp nozzles. Scrape agitation is driven by a 3 HP motor and requires 230/460 VAC, 3-phase electrical service. The unit has some cosmetic scratches and dents in the outer skin but otherwise appears to be in good condition. Possible applications include mixing, blending, heating and cooling of compatible sauces, syrups, dairy products, creams, lotions, slurries and other liquid or viscous food, cosmetic, pharmaceutical and general process products.
SPECIFICATIONS

Manufacturer: Walker

Model: PZ-C3-PV

Equipment Type: Jacketed processor kettle

Capacity: 2,000 gallons

Material of Construction: 304 stainless steel

Vessel Top: Dished

Vessel Bottom: Coned

Vessel Outside Diameter: Approximately 96"

Straight Side: Approximately 72"

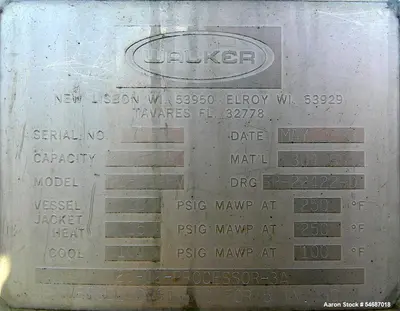

Vessel Rating: 10 PSI at 250°F

Jacket Configuration: Three zone

Jacket Heating Rating: 15 PSI at 250°F

Jacket Cooling Rating: 100 PSI at 100°F

Jacket Valves: 2"

Jacket Condensate Connection: 3"

Jacket Outlet: 4"

Bottom Discharge: 3" tri-clamp

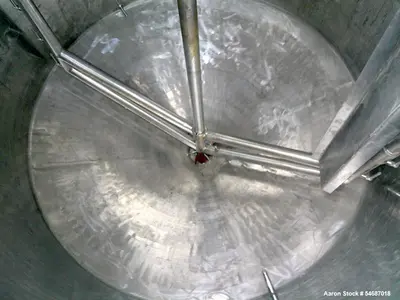

Agitation Type: Scrape agitation

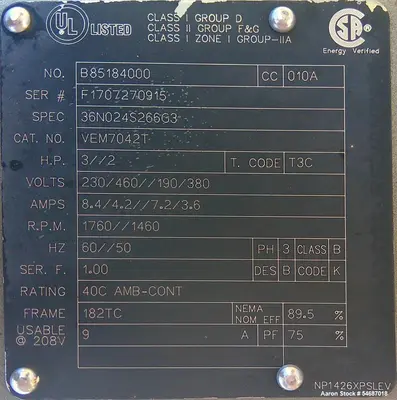

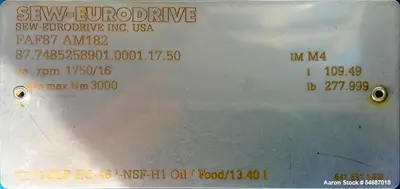

Agitator Motor: 3 HP

Electrical Requirements: 230/460 VAC, 3-phase

Manway: 19" hinged

Sight Glass: 4"

Top Threaded Nozzle: (1) 6"

Top Threaded Nozzle: (1) 3"

Top Tri-Clamp Nozzles: (2) 3"

Top Tri-Clamp Nozzles: (2) 2"

Condition: Good overall with cosmetic scratches and dents to outer skin

APPLICATIONS

Sanitary process mixing

Heating and cooling

Viscous product blending

Sauce processing

Syrup processing

Dairy processing

Cream and lotion mixing

Cosmetic formulation

Pharmaceutical liquid processing

Slurry mixing

Emulsion processing

Batch compounding

Temperature-controlled blending

Food product processing

General liquid and semi-viscous processing

Processes requiring wall-scrape agitation

SUITABLE PRODUCTS / MATERIALS
Depending on viscosity, formulation and process requirements, this equipment may be suitable for products such as:

Sauces

Gravies

Syrups

Dairy products

Cream-based products

Cheese sauces

Dressings

Food concentrates

Liquid food ingredients

Cosmetic creams

Lotions

Gels

Personal-care products

Pharmaceutical liquids

Emulsions

Slurries

Suspensions

Pastes

Viscous liquids

Other compatible products requiring heating, cooling and scrape mixing

FAQ

WHAT IS THE CAPACITY OF THE WALKER PZ-C3-PV?
The vessel has a stated capacity of 2,000 gallons.

WHAT MATERIAL IS THE KETTLE CONSTRUCTED FROM?
The vessel is constructed of 304 stainless steel.

DOES THE KETTLE HAVE A HEATING AND COOLING JACKET?
Yes. It has a three-zone jacket designed for both heating and cooling service.

WHAT ARE THE JACKET RATINGS?
The jacket is rated for heating service at 15 PSI at 250°F and cooling service at 100 PSI at 100°F.

WHAT TYPE OF AGITATION DOES THE UNIT HAVE?
The processor is equipped with scrape agitation driven by a 3 HP motor.

WHY IS SCRAPE AGITATION USEFUL?
Scrape agitation helps move product away from the vessel wall, which can improve heat transfer and reduce buildup when processing compatible viscous or heat-sensitive materials.

WHAT SIZE IS THE BOTTOM DISCHARGE?
The vessel has a 3" tri-clamp bottom discharge.

DOES THE KETTLE HAVE A MANWAY?
Yes. The top head includes a 19" hinged manway with a 4" sight glass.

WHAT POWER DOES THE AGITATOR REQUIRE?
The 3 HP agitator motor requires 230/460 VAC, 3-phase electrical service.

CAN THIS PROCESSOR BE USED FOR FOOD PRODUCTS?
Possible applications include compatible sauces, syrups, dairy products and other food-process materials. Final suitability should be confirmed based on sanitary and process requirements.

CAN THIS KETTLE HANDLE VISCOUS PRODUCTS?
The scrape-agitator configuration makes this type of equipment well suited for many compatible viscous or semi-viscous materials, depending on viscosity and batch conditions.

CAN AARON EQUIPMENT HELP DETERMINE IF THIS KETTLE WILL WORK FOR MY PRODUCT?
Yes. Aaron Equipment can help review your product viscosity, batch size, heating and cooling requirements, agitation needs and sanitary requirements to determine whether this Walker processor may be suitable for your application.
