USED US FILTER CT SERIES

MANUFACTURER INFORMATION
US Filter manufactured industrial water-treatment and purification systems used for filtration, adsorption and process-water applications. CT Series carbon purification vessels are designed to contain activated carbon media for removing compatible organic compounds, odors, colors and other adsorbable contaminants from liquid process streams.
This vessel was fabricated by Ross Engineering of Savannah, Georgia in 2002.
PRODUCT DESCRIPTION

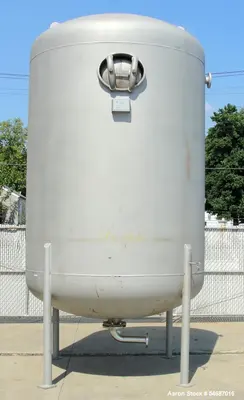

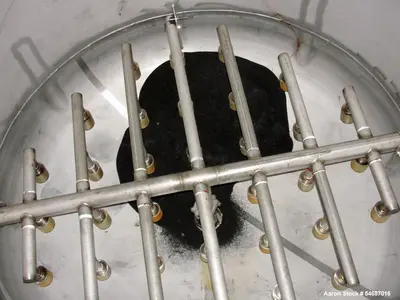

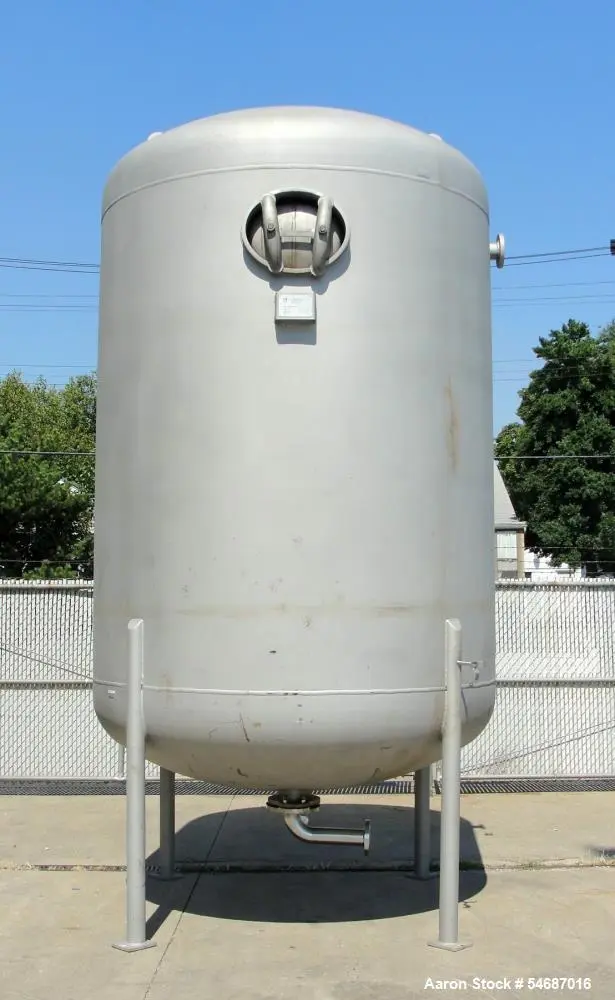

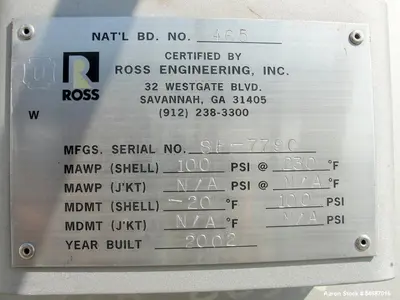

Used US Filter CT Series 304 stainless steel carbon purifier fabricated by Ross Engineering of Savannah, Georgia in 2002. National Board #465, Manufacturer Serial #SF-7790. The vessel shell is rated for a maximum allowable working pressure of 100 PSI at 230°F with an MDMT rating of 100 PSI at -20°F. Vessel dimensions are approximately 84" outside diameter x 99" straight side with an overall length of approximately 176". Access is provided through an 18" x 14" elliptical manway. Bottom connections include one 6" RFSO nozzle with blind flange and 3" pipe and one 2" RFSO nozzle with blind flange. Side connections include one 3" RFSO nozzle and one 2" RFSO nozzle with blind flange, with one additional 2" RFSO connection located on top of the vessel. The unit includes additional piping, valves and a control panel. Activated carbon is not currently charged in the vessel. Possible applications include activated-carbon treatment, liquid purification, adsorption, decolorization, odor removal and contaminant reduction in compatible water and process-liquid systems.
SPECIFICATIONS

Manufacturer: US Filter

Series: CT Series

Equipment Type: Carbon purifier / adsorption vessel

Fabricator: Ross Engineering, Savannah, GA

Year: 2002

Material of Construction: 304 stainless steel

National Board Number: 465

Manufacturer Serial Number: SF-7790

Shell MAWP: 100 PSI at 230°F

MDMT Rating: 100 PSI at -20°F

Vessel Outside Diameter: Approximately 84"

Straight Side: Approximately 99"

Overall Length: Approximately 176"

Manway: 18" x 14" elliptical

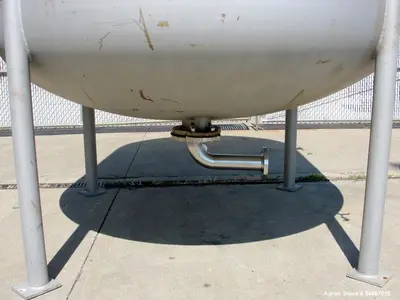

Bottom Connection: (1) 6" RFSO with blind flange and 3" pipe

Bottom Connection: (1) 2" RFSO with blind flange

Side Connection: (1) 3" RFSO

Side Connection: (1) 2" RFSO with blind flange

Top Connection: (1) 2" RFSO

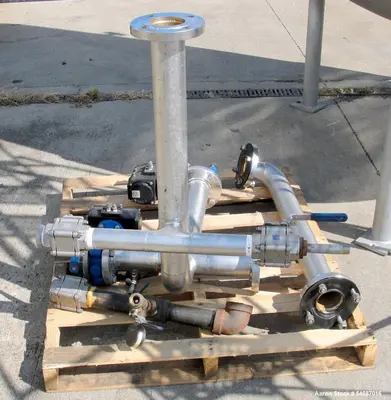

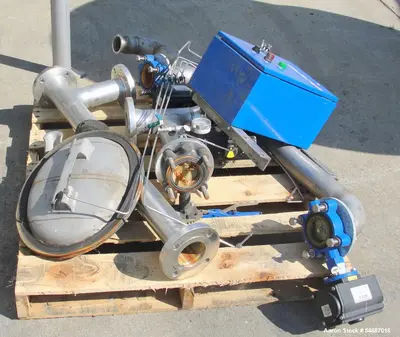

Additional Piping: Included

Valves: Included

Control Panel: Included

Carbon Charge: Not included / vessel currently empty

APPLICATIONS

Activated carbon filtration

Activated carbon adsorption

Process-water purification

Industrial water treatment

Organic contaminant removal

Odor reduction

Color removal

Dechlorination where suitable

Taste and odor treatment

Chemical process purification

Liquid polishing

Final-stage purification

Process-liquid treatment

Pretreatment prior to downstream processing

Adsorptive contaminant reduction

Carbon bed treatment systems

SUITABLE PRODUCTS / MATERIALS
Depending on carbon media selection, contaminant type, flow rate and process requirements, this vessel may be suitable for treatment of:

Process water

Industrial water

Utility water

Compatible aqueous solutions

Chemical process liquids

Food and beverage process liquids where appropriate

Pharmaceutical process water where equipment suitability is independently confirmed

Wastewater polishing streams

Dechlorination applications

Organic contaminant removal

Color-bearing liquids

Odorous process liquids

Compatible liquid streams requiring activated-carbon adsorption

Other suitable liquids compatible with 304 stainless steel and activated carbon media

FAQ

WHAT IS A US FILTER CT SERIES CARBON PURIFIER?
A CT Series carbon purifier is a pressure vessel designed to hold activated carbon media for adsorption and purification of compatible liquid process streams.

WHAT MATERIAL IS THIS VESSEL CONSTRUCTED FROM?
The vessel is constructed of 304 stainless steel.

WHAT IS THE PRESSURE RATING?
The shell is rated for 100 PSI maximum allowable working pressure at 230°F.

WHAT IS THE MINIMUM DESIGN METAL TEMPERATURE?
The MDMT is listed at -20°F at 100 PSI.

WHAT SIZE IS THE VESSEL?
The vessel measures approximately 84" outside diameter x 99" straight side with an overall length of approximately 176".

DOES THE VESSEL HAVE A MANWAY?
Yes. It includes an approximately 18" x 14" elliptical manway for access.

DOES THE UNIT INCLUDE CARBON MEDIA?
No. The vessel does not currently contain a carbon charge.

DOES IT INCLUDE PIPING AND CONTROLS?
Yes. The system includes additional piping, valves and a control panel.

WHAT IS ACTIVATED CARBON USED FOR IN THIS TYPE OF SYSTEM?
Activated carbon is commonly used to adsorb compatible organic compounds and help reduce odor, color and certain contaminants from liquid streams.

CAN THE VESSEL BE USED FOR WATER TREATMENT?
Yes. Possible applications include compatible industrial and process-water purification, provided the vessel, carbon media and operating conditions match the required treatment process.

CAN AARON EQUIPMENT HELP DETERMINE WHAT CARBON MEDIA IS NEEDED?
Yes. Aaron Equipment can help review the liquid stream, contaminants, flow rate and treatment objectives to assist with determining whether this vessel may be suitable and what additional process information is needed.

CAN AARON EQUIPMENT HELP DETERMINE IF THIS CARBON PURIFIER WILL WORK FOR MY PROCESS?
Yes. Aaron Equipment can help review your flow rate, pressure, liquid chemistry, contaminant load and adsorption requirements to determine whether this US Filter CT Series vessel may be suitable.

CAN AARON EQUIPMENT ARRANGE SHIPPING?
Yes. Aaron Equipment can assist with freight, loading and shipping coordination for domestic or international destinations. Contact Aaron Equipment with your delivery location for shipping assistance.
