USED BUHLER INC. 2GU41100

MANUFACTURER INFORMATION
Bühler manufactures industrial process equipment used for mixing, dispersing, grinding and formulation applications. Vacuum processing mixers combine controlled agitation, high-speed dispersion, vacuum capability and jacketed temperature control for products requiring blending, deaeration, heating, cooling or dispersion.
PRODUCT DESCRIPTION

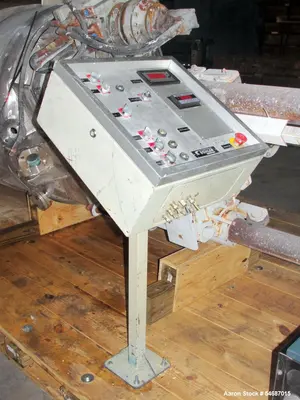

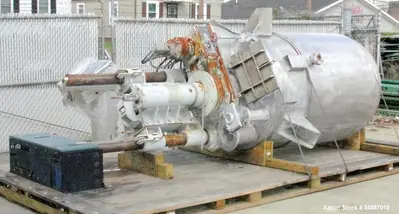

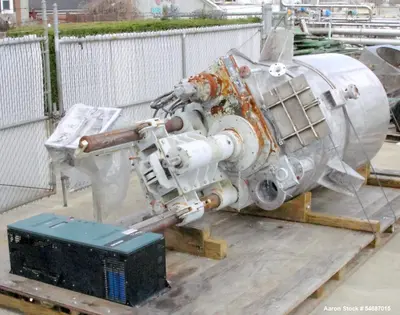

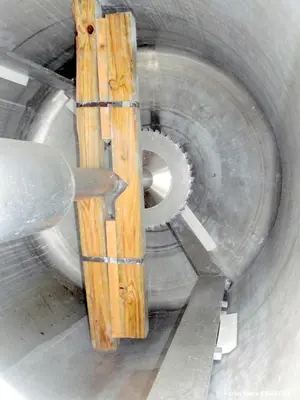

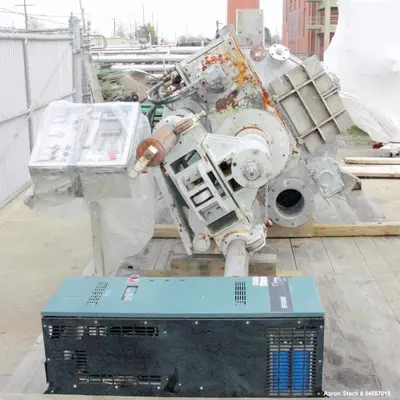

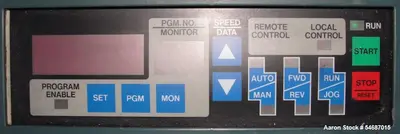

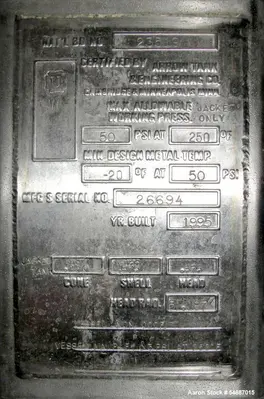

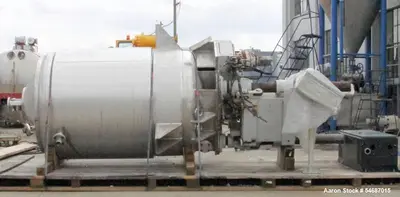

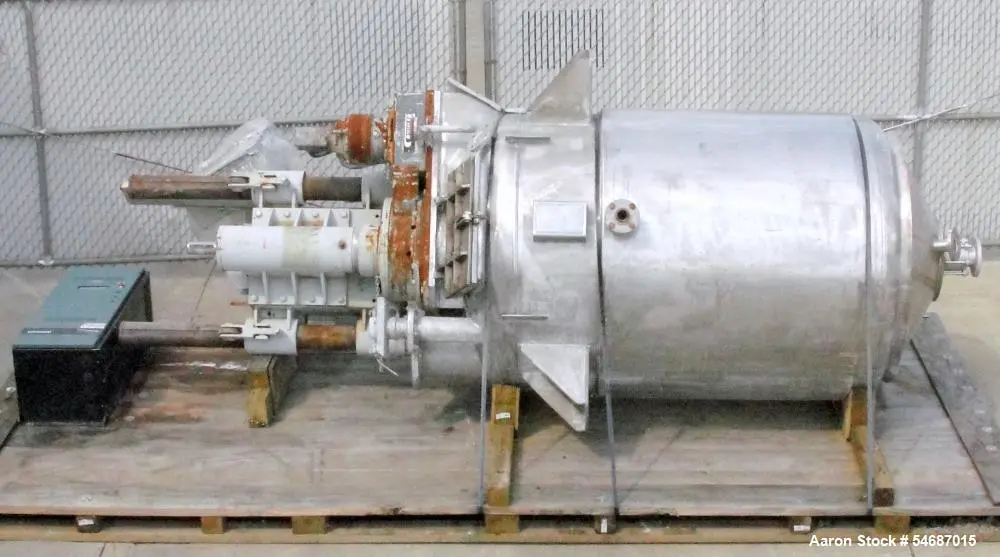

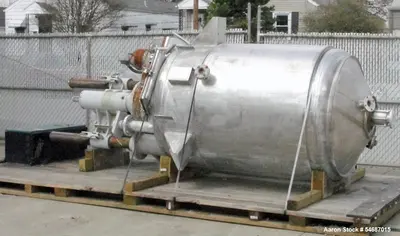

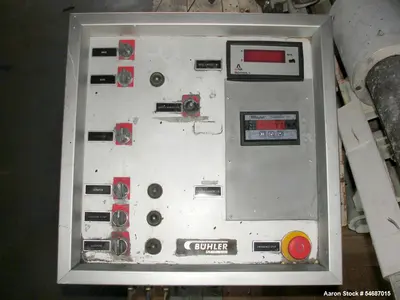

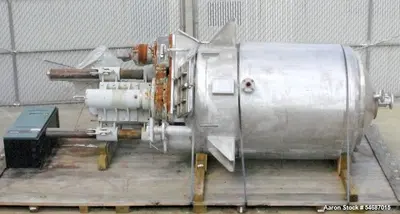

Used 1995 Bühler 1,500-liter / 400-gallon stainless steel jacketed vacuum processing mixer, Serial #26694, National Board #23519. The vessel is rated for full vacuum and 3 PSI at 250°F, with the jacket rated for 50 PSI at 250°F. Vessel interior measures approximately 51" diameter x 66" straight side with a 12" cone bottom and 10" dished top. The mixing system combines a hydraulic-motor-driven scrape agitator with a 12" high-speed disperser blade for processing compatible liquid and viscous formulations. The disperser assembly provides approximately 19" of vertical depth adjustment through a hydraulic lift system. The electric drive motor for the high-speed disperser is missing. Included controls consist of a control panel and Reliance Electric GP2000 VS Drive, Model 2GU41100, a variable-speed constant-torque AC controller designed for a 100 HP motor. The top head includes three 2" flanged fittings, one 1" flanged fitting, one 4" flanged fitting, one 8" flanged fitting and a 3" sight glass. Bottom discharge is through a 3" flanged center outlet connected to a ball valve, with 2" flanged jacket connections. The vessel was previously mezzanine mounted and includes three stainless steel mounting lugs. Approximate overall dimensions are 160" high x 54" wide. Unit is reported in good condition. Possible applications include vacuum processing, blending, dispersion, heating and cooling of compatible coatings, adhesives, inks, chemical formulations, cosmetics, personal-care products and other liquid or viscous materials.
SPECIFICATIONS

Manufacturer: Bühler

Equipment Type: Jacketed vacuum processing mixer

Serial Number: 26694

National Board Number: 23519

Year: 1995

Capacity: Approximately 1,500 liters / 400 gallons

Construction: Stainless steel

Vessel Rating: Full vacuum / 3 PSI at 250°F

Jacket Rating: 50 PSI at 250°F

Inside Diameter: Approximately 51"

Straight Side: Approximately 66"

Cone Bottom: Approximately 12"

Dished Top: Approximately 10"

Primary Agitation: Scrape agitator

Scrape Agitator Drive: Hydraulic motor

High-Speed Disperser Blade: Approximately 12"

Disperser Adjustment: Approximately 19" vertical travel

Disperser Lift: Hydraulic

Disperser Motor: Missing

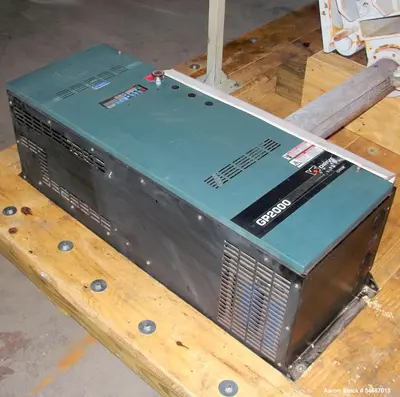

Included Drive Manufacturer: Reliance Electric

Drive Model: GP2000 VS / 2GU41100

Drive Type: Variable-speed constant-torque AC controller

Drive Rating: Designed for 100 HP motor

Top Connections: (3) 2" flanged

Additional Top Connections: (1) 1", (1) 4" and (1) 8" flanged

Sight Glass: 3"

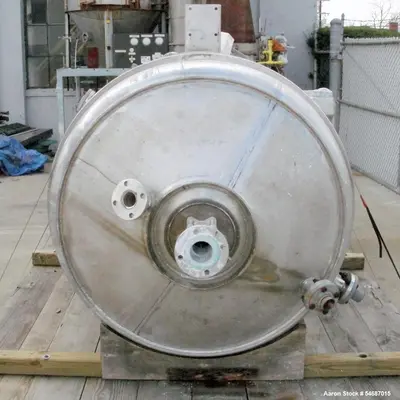

Bottom Discharge: 3" flanged center outlet

Discharge Valve: Ball valve

Jacket Connections: 2" flanged

Mounting: Previously mezzanine mounted

Mounting Lugs: (3) stainless steel

Approximate Overall Height: 160"

Approximate Overall Width: 54"

Condition: Good

APPLICATIONS

Vacuum process mixing

High-viscosity blending

High-speed dispersion

Scrape-wall agitation

Product deaeration

Heating under agitation

Cooling under agitation

Coatings production

Adhesive formulation

Ink manufacturing

Pigment dispersion

Chemical compounding

Cosmetic processing

Personal-care formulation

Resin blending

Emulsion production

Slurry processing

Batch formulation

Viscous liquid processing

Specialty chemical mixing

SUITABLE PRODUCTS / MATERIALS
Depending on viscosity, formulation and process requirements, this mixer may be suitable for materials such as:

Paints

Industrial coatings

Architectural coatings

Adhesives

Sealants

Printing inks

Pigment dispersions

Color concentrates

Resins

Polymer formulations

Specialty chemicals

Chemical concentrates

Cosmetics

Lotions

Creams

Gels

Personal-care formulations

Emulsions

Suspensions

Slurries

Pastes

Viscous liquids

Liquid compounds

Other compatible products requiring vacuum mixing or dispersion

FAQ

WHAT IS THE CAPACITY OF THIS BÜHLER PROCESSING MIXER?
The vessel has an approximate total capacity of 1,500 liters, or approximately 400 gallons.

IS THE MIXER RATED FOR FULL VACUUM?
Yes. The vessel is rated for full vacuum and 3 PSI at 250°F.

WHAT IS THE JACKET RATING?
The jacket is rated for 50 PSI at 250°F and may be used for compatible heating or cooling processes.

WHAT TYPE OF MIXING SYSTEM DOES THE UNIT HAVE?
The mixer combines a scrape agitator powered by a hydraulic motor with a separate high-speed disperser.

WHAT SIZE IS THE DISPERSER BLADE?
The high-speed disperser is equipped with an approximately 12" blade.

DOES THE DISPERSER MOVE VERTICALLY?
Yes. The disperser assembly has approximately 19" of vertical adjustment using a hydraulic lift system.

IS THE HIGH-SPEED DISPERSER MOTOR INCLUDED?
No. The electric drive motor for the high-speed disperser is missing.

WHAT DRIVE IS INCLUDED WITH THE DISPERSER SYSTEM?
The machine includes a Reliance Electric GP2000 VS Drive, Model 2GU41100, designed as a variable-speed constant-torque controller for a 100 HP motor.

WHAT SIZE IS THE PRODUCT DISCHARGE?
Product discharges through a 3" flanged center outlet fitted with a ball valve.

CAN THIS MIXER HANDLE VISCOUS MATERIALS?
The combination of scrape agitation and high-speed dispersion makes this type of equipment well suited for many compatible viscous liquid and formulated products. Suitability depends on viscosity, batch size and process requirements.

WHAT TYPES OF PRODUCTS ARE COMMONLY PROCESSED IN THIS STYLE OF MIXER?
Possible products include coatings, adhesives, inks, chemical formulations, cosmetics, personal-care products, emulsions, slurries and other compatible liquid or viscous materials.

CAN AARON EQUIPMENT HELP DETERMINE THE CORRECT REPLACEMENT MOTOR?
Yes. Aaron Equipment can help review the included Reliance drive, disperser assembly and required process duty to assist with identifying an appropriate replacement motor specification.

CAN AARON EQUIPMENT HELP DETERMINE IF THIS MIXER WILL WORK FOR MY PROCESS?
Yes. Aaron Equipment can help review batch size, viscosity, mixing requirements, vacuum level, heating or cooling needs and dispersion requirements to determine whether this Bühler mixer may be suitable for your application.

CAN AARON EQUIPMENT ARRANGE SHIPPING?
Yes. Aaron Equipment can assist with freight, loading and shipping coordination for domestic or international destinations. Contact Aaron Equipment with your delivery location for shipping assistance.
