USED KRAUSS MAFFEI MT 1/200

MANUFACTURER INFORMATION
Krauss Maffei manufactures industrial process equipment used for mixing, drying, separation and related chemical and pharmaceutical applications. Mixer vacuum dryers of this type use a jacketed vessel and gently moving internal screw to expose product surfaces while operating under vacuum, allowing moisture or solvents to be removed at reduced process temperatures.
PRODUCT DESCRIPTION

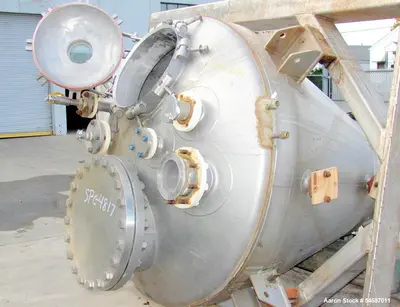

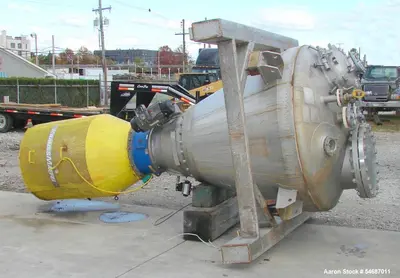

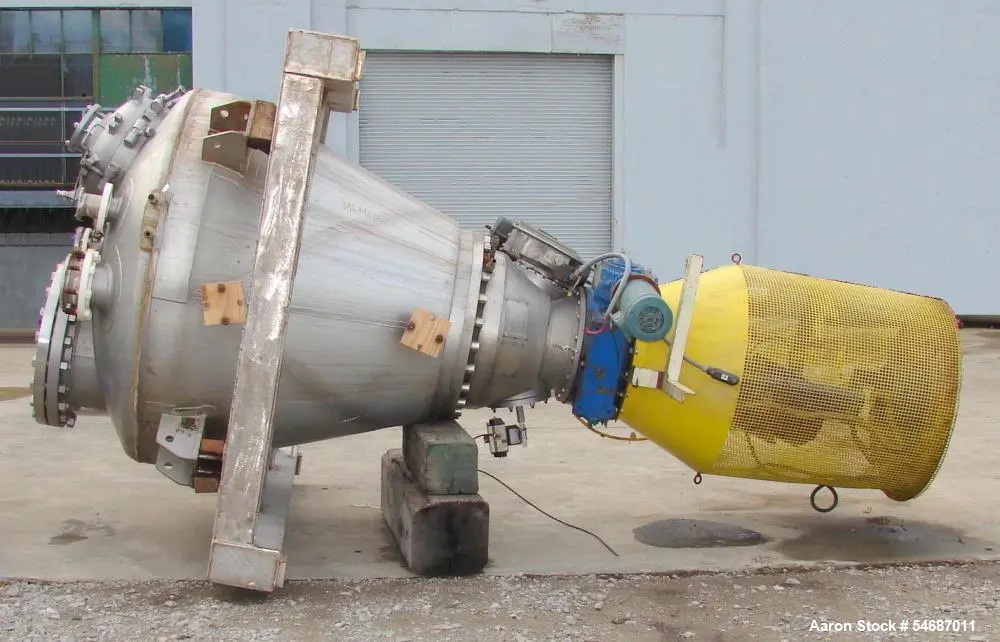

Used Krauss Maffei Mixer Vacuum Dryer MT, Model MT 1/200, Serial #7098, National Board #21424. Constructed of 316L stainless steel with polished interior product-contact surfaces. The conical vessel has a total capacity of approximately 49.43 cubic feet with approximately 35.3 cubic feet working volume. Product is gently agitated by an 8" diameter inclined orbiting screw driven by a 10 HP drive, supporting mixing and drying of compatible powders, granules and particles up to approximately 5 mm. The vessel interior and jacket are rated for full vacuum through 150 PSI at 450°F, with a stated maximum actual drying temperature of 302°F. The top head includes an 18" manway with 6" sight glass, 18" flanged connection, 4" sight glass, two 3" flanged connections, two 2" flanged connections, a 6" flanged connection and two 1" threaded jacket fittings. The vessel side includes two 2" flanged body-jacket connections. Bottom discharge is through a 10" flanged outlet equipped with a pneumatically operated flush-mount valve, with two additional 1" threaded fittings for the bottom jacket. Possible applications include vacuum drying, solvent removal, low-temperature drying and gentle mixing of compatible pharmaceutical, chemical, specialty chemical and other powder or granular products.
SPECIFICATIONS

Manufacturer: Krauss Maffei

Equipment Type: Mixer vacuum dryer

Model: MT 1/200

Serial Number: 7098

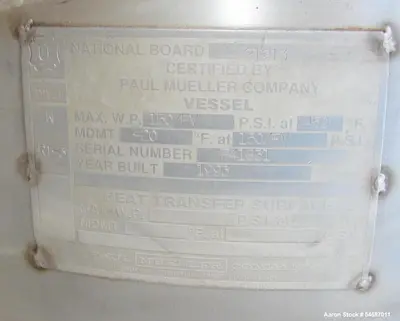

National Board Number: 21424

Vessel Configuration: Conical

Material of Construction: 316L stainless steel

Interior Finish: Polished

Total Capacity: Approximately 49.43 cubic feet

Working Volume: Approximately 35.3 cubic feet

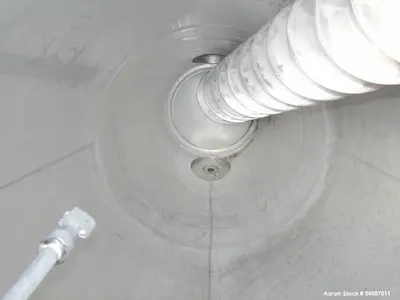

Agitator Type: Inclined orbiting screw

Screw Diameter: 8"

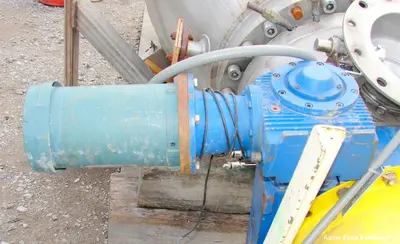

Screw Drive: 10 HP

Maximum Particle Size: Approximately 5 mm

Internal Pressure Rating: Full vacuum / 150 PSI at 450°F

Jacket Pressure Rating: Full vacuum / 150 PSI at 450°F

Maximum Actual Drying Temperature: Approximately 302°F

Top Manway: 18"

Manway Sight Glass: 6"

Additional Top Sight Glass: 4"

Top Process Connections: 18" flanged, 6" flanged, (2) 3" flanged and (2) 2" flanged

Top Jacket Connections: (2) 1" threaded

Body Jacket Connections: (2) 2" flanged

Bottom Discharge: 10" flanged

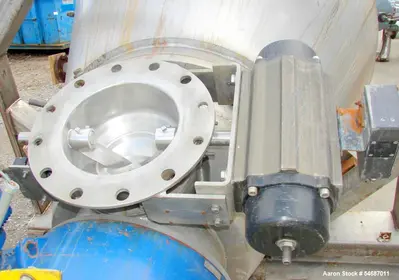

Discharge Valve: Pneumatically operated flush-mount valve

Bottom Jacket Connections: (2) 1" threaded

APPLICATIONS

Vacuum drying

Low-temperature drying

Solvent removal

Moisture removal

Gentle powder drying

Granule drying

Powder conditioning

Product mixing during drying

Pharmaceutical intermediate drying

Chemical intermediate drying

Specialty chemical processing

Fine chemical drying

Heat-sensitive product drying

Batch vacuum processing

Jacketed thermal processing

Drying under reduced pressure

Solvent recovery processes when connected to suitable downstream equipment

Final drying of compatible powders and granules

SUITABLE PRODUCTS / MATERIALS
Depending on particle size, solvent system, thermal sensitivity and process requirements, this equipment may be suitable for products such as:

Pharmaceutical intermediates

Active pharmaceutical ingredients where equipment suitability is independently confirmed

Excipients

Fine chemical powders

Specialty chemical powders

Chemical intermediates

Polymer powders

Resins

Granulated products

Crystalline products

Heat-sensitive powders

Solvent-wet solids

Moist filter cake where compatible with the agitator and process

Fine powders

Dry granules

Specialty materials requiring vacuum drying

Other compatible powders or particles up to approximately 5 mm

FAQ

WHAT IS THE CAPACITY OF THE KRAUSS MAFFEI MT 1/200?
The vessel has a total capacity of approximately 49.43 cubic feet and a working volume of approximately 35.3 cubic feet.

WHAT MATERIAL IS THE DRYER CONSTRUCTED FROM?
The vessel is constructed of 316L stainless steel with a polished interior surface.

HOW DOES THE MIXING SYSTEM WORK?
Product is gently moved by an 8" diameter inclined orbiting screw driven by a 10 HP drive. The screw helps circulate material through the vessel during the drying process.

CAN THIS DRYER OPERATE UNDER FULL VACUUM?
Yes. Both the vessel interior and jacket are rated for full vacuum through 150 PSI at 450°F.

WHAT IS THE MAXIMUM DRYING TEMPERATURE?
The stated maximum actual drying temperature is approximately 302°F.

WHAT SIZE PARTICLES CAN THE MACHINE HANDLE?
The dryer is specified for particles up to approximately 5 mm in size.

WHAT IS THE BOTTOM DISCHARGE SIZE?
The vessel has a 10" flanged bottom discharge.

DOES THE BOTTOM DISCHARGE HAVE AN AUTOMATIC VALVE?
The bottom outlet is equipped with a pneumatically operated flush-mount valve.

WHY USE A VACUUM MIXER DRYER?
Vacuum drying lowers the boiling point of moisture or compatible solvents, allowing drying at reduced temperatures. The internal screw continuously moves product to improve heat transfer and expose fresh product surfaces during processing.

IS THIS TYPE OF DRYER SUITABLE FOR HEAT-SENSITIVE PRODUCTS?
Vacuum dryers are often used for products that benefit from reduced-temperature drying. Final suitability depends on the product, solvent system, required residual moisture and process conditions.

CAN AARON EQUIPMENT HELP DETERMINE IF THIS DRYER WILL WORK FOR MY PROCESS?
Yes. Aaron Equipment can help review your product characteristics, batch size, particle size, solvent or moisture load, required vacuum level and drying temperature to determine whether this Krauss Maffei MT 1/200 may be suitable for your application.

CAN AARON EQUIPMENT ARRANGE SHIPPING?
Yes. Aaron Equipment can assist with freight, loading and shipping coordination for domestic or international destinations. Contact Aaron Equipment with your delivery location for shipping assistance.
