USED JWI 1450 MM

Manufacturer Information

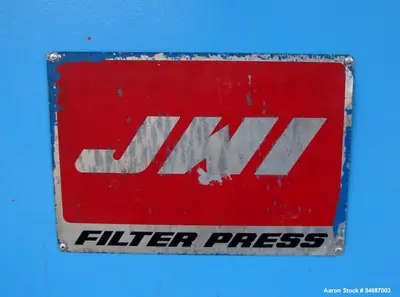

Manufacturer: JWI
Equipment Type: Recessed Plate Filter Press
Plate Size: 1450 mm
Condition: Used, good working condition
Hydraulic Cylinder: Rebuilt

Main Product Description

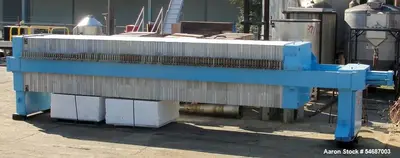

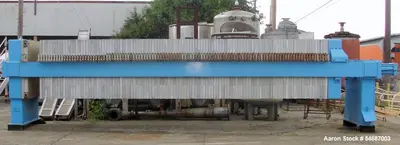

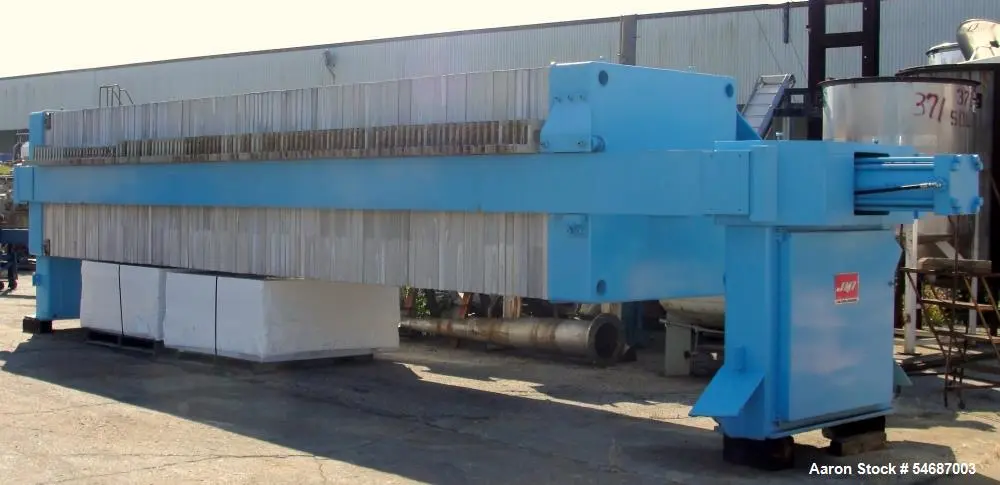

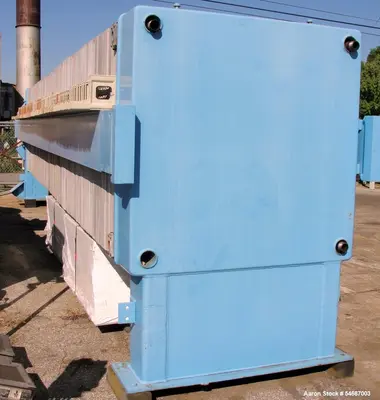

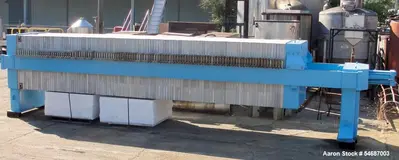

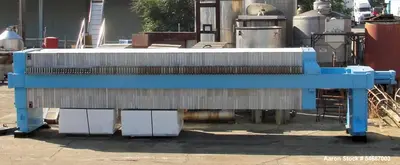

Used JWI 1450 mm recessed plate filter press equipped with 108 polypropylene recessed filter plates and approximately 194 cubic feet of total cake capacity. The plates are identified as Plate #4L78 and measure approximately 57 inches wide x 57 inches high x 2.5 inches thick, with a top center feed eye and four corner filtrate eyes. The press provides an estimated 3,784 square feet of filtration area with a 32 mm cake thickness and features a heavy-duty frame rated for 100 psi operating pressure. Overall dimensions are approximately 34 feet long x 5.5 feet wide x 8 feet high. The hydraulic cylinder has been rebuilt, and the unit is reported to be in good working condition. Suitable applications include liquid/solid separation, sludge dewatering, wastewater filtration, chemical processing, mining, plating, food processing, and filtration of other compatible industrial process slurries.

Specifications

• Manufacturer: JWI
• Equipment Type: Recessed Plate Filter Press
• Plate Size: 1450 mm
• Number of Plates: 108
• Plate Material: Polypropylene
• Plate Identification: #4L78

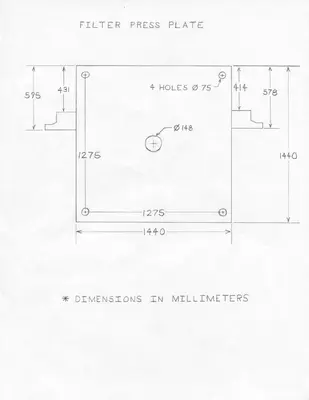

• Plate Width: Approximately 57"
• Plate Height: Approximately 57"
• Plate Thickness: Approximately 2.5"
• Feed Configuration: Top center feed eye
• Filtrate Configuration: Four corner filtrate eyes
• Estimated Filtration Area: Approximately 3,784 sq ft
• Total Cake Volume: Approximately 194 cu ft
• Cake Thickness: 32 mm
• Frame Pressure Rating: 100 psi

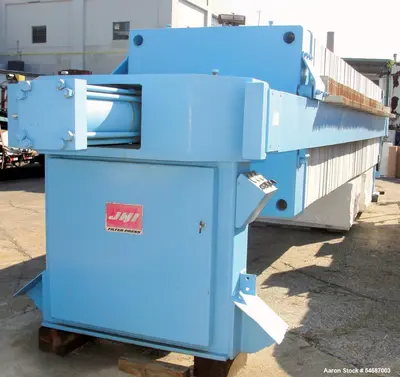

• Hydraulic Cylinder: Rebuilt
• Condition: Good working condition
• Overall Length: Approximately 34'
• Overall Width: Approximately 5.5'
• Overall Height: Approximately 8'

Applications

• Liquid/solid separation
• Sludge dewatering
• Wastewater filtration
• Industrial wastewater treatment
• Chemical slurry filtration
• Mining slurry dewatering
• Plating wastewater treatment
• Food processing filtration
• Industrial process slurry filtration
• Compatible solids recovery and dewatering applications

Suitable Products / Materials

• Wastewater sludge
• Industrial process slurries
• Chemical slurries
• Mining slurries
• Plating wastewater
• Compatible food processing slurries
• Liquid/solid process streams suitable for recessed plate filtration

FAQs

• What size plates are installed in this JWI filter press?
The press is equipped with 1450 mm polypropylene recessed filter plates measuring approximately 57 inches wide x 57 inches high x 2.5 inches thick.
• How many filter plates are included?
The filter press is equipped with 108 polypropylene recessed plates.
• What is the cake capacity of this JWI filter press?
The total estimated cake volume is approximately 194 cubic feet with a 32 mm cake thickness.
• What is the filtration area?
The press provides an estimated 3,784 square feet of filtration area.
• What pressure is the filter press frame rated for?
The heavy-duty frame is rated for 100 psi.
• What is the feed configuration?

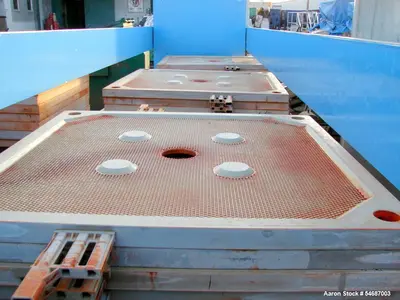

The plates have a top center feed eye with four corner filtrate eyes.

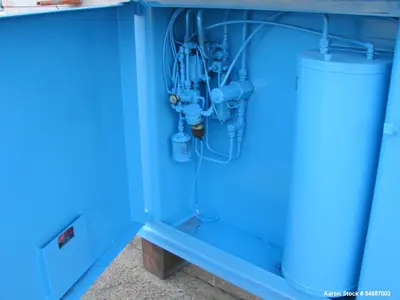

• Has the hydraulic system been serviced?
The hydraulic cylinder has been rebuilt.
• What condition is the filter press in?
The unit is reported to be in good working condition.
• What applications can this filter press be used for?
Possible applications include sludge dewatering, liquid/solid separation, wastewater treatment, chemical processing, mining, plating, food processing, and filtration of compatible industrial process slurries.
• Can Aaron Equipment help with shipping this JWI filter press?
Yes. Aaron Equipment can assist with coordinating freight and logistics for large industrial equipment. Because this press is approximately 34 feet long, shipping requirements should be evaluated based on the equipment location, destination, loading requirements, and selected carrier.
• How can Aaron Equipment help determine whether this filter press will work for my application?
Aaron Equipment can provide available equipment details and help buyers evaluate the press based on required filtration area, cake volume, plate size, operating pressure, slurry characteristics, and installation requirements. Final process suitability should be confirmed for the specific product or slurry being filtered.
