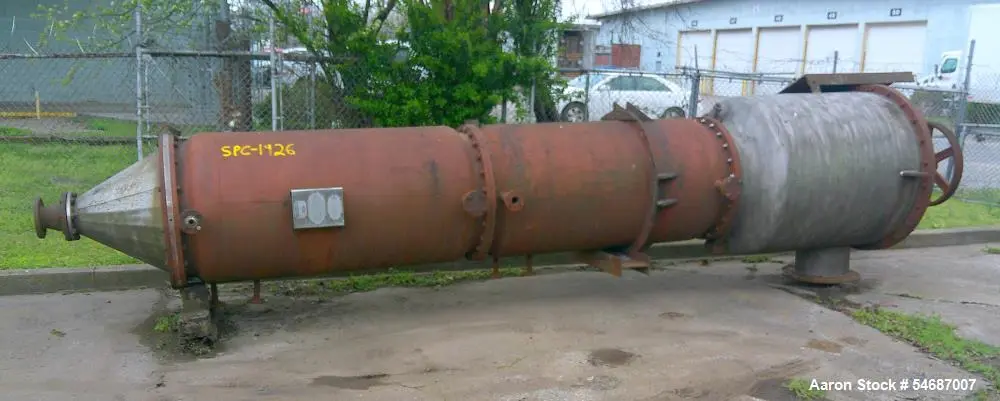

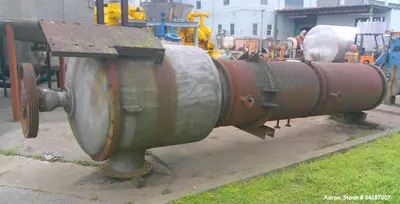

Used Rodney Hunt Turba-Film 97 Sq Ft Thin Film Evaporator

Manufacturer Information
Manufacturer: Rodney Hunt
Product Line: Turba-Film
Equipment Type: Thin Film Evaporator
Heat-Transfer Area: Approximately 97 sq ft
Material of Construction: 316 stainless steel

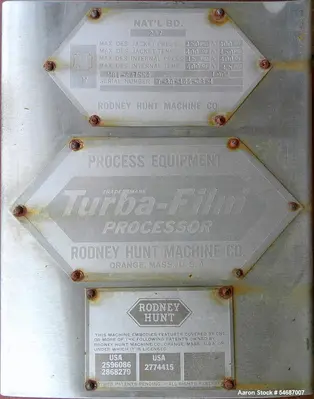

Serial Number: T-30-144-63-1
National Board Number: 287
Condition: Good condition
Main Product Description
Used Rodney Hunt Turba-Film thin film evaporator constructed of 316 stainless steel and providing approximately 97 square feet of heat-transfer surface area for evaporation, concentration, devolatilization, and removal of solvent or moisture from compatible process products. The jacket is rated for 150 psi at 400°F, while the internal process chamber is rated for 15 psi at 400°F. Process connections include a 3-inch flanged product inlet, 4-inch flanged conical positive discharge, and 15-inch flanged vapor discharge. Overall dimensions are approximately 4 feet in diameter x 22 feet long. Serial #T-30-144-63-1, National Board #287. The unit is in good condition and may be suitable for compatible chemical, food, pharmaceutical, resin, polymer, and other liquid or heat-sensitive products requiring thin film evaporation or concentration.
Specifications
• Manufacturer: Rodney Hunt
• Product Line: Turba-Film
• Equipment Type: Thin Film Evaporator
• Material of Construction: 316 stainless steel
• Heat-Transfer Surface Area: Approximately 97 sq ft
• Jacket Pressure Rating: 150 psi
• Jacket Temperature Rating: 400°F
• Internal Process Chamber Pressure Rating: 15 psi
• Internal Process Chamber Temperature Rating: 400°F
• Product Inlet: 3" flanged

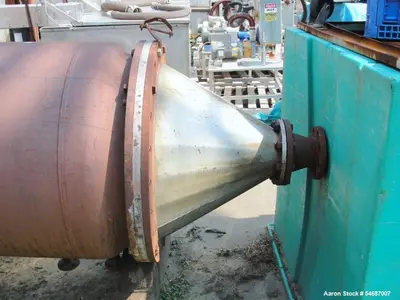

• Product Discharge: 4" flanged conical positive discharge
• Vapor Discharge: 15" flanged
• Overall Diameter: Approximately 4'
• Overall Length: Approximately 22'
• Serial Number: T-30-144-63-1
• National Board Number: 287
• Condition: Good condition
Applications
• Thin film evaporation
• Product concentration
• Solvent removal
• Moisture removal
• Devolatilization
• Chemical processing
• Pharmaceutical processing
• Food processing
• Resin processing
• Polymer processing
• Processing of compatible heat-sensitive liquids
• Concentration of compatible viscous process products
Suitable Products / Materials
• Compatible chemical liquids
• Pharmaceutical process liquids
• Food process liquids
• Resins
• Polymers
• Solvent-containing products
• Heat-sensitive liquids
• Compatible viscous process materials
• Products requiring concentration or volatile removal
• Liquid process streams suitable for thin film evaporation
FAQs
• What is the heat-transfer area of this Rodney Hunt evaporator?
The Turba-Film evaporator provides approximately 97 square feet of heat-transfer surface area.
• What is the evaporator constructed from?
The unit is listed as 316 stainless steel construction.
• What is the jacket pressure rating?
The jacket is rated for 150 psi at 400°F.
• What is the process chamber pressure rating?
The internal process chamber is rated for 15 psi at 400°F.
• What size is the product inlet?
The unit has a 3-inch flanged product inlet.
• What size is the product discharge?
The evaporator includes a 4-inch flanged conical positive discharge.
• What size is the vapor outlet?
The vapor discharge is 15 inches and flanged.
• What are the approximate overall dimensions?
The evaporator measures approximately 4 feet in diameter x 22 feet long.
• What is the National Board number?
The listed National Board number is 287.
• What applications can this Turba-Film evaporator be used for?
Possible applications include evaporation, concentration, devolatilization, solvent removal, and moisture removal from compatible chemical, food, pharmaceutical, resin, polymer, and other process products.
• Is a thin film evaporator suitable for heat-sensitive products?
Thin film evaporators can be used for compatible heat-sensitive products where the process benefits from spreading material into a thin film during evaporation. Final suitability depends on the specific product and operating conditions.
• Can Aaron Equipment help with shipping this Rodney Hunt evaporator?
Yes. Aaron Equipment can assist with coordinating freight and logistics for industrial process equipment. Shipping requirements can be evaluated based on the unit's approximately 4-foot diameter x 22-foot length, equipment location, destination, and loading requirements.
• How can Aaron Equipment help determine whether this evaporator fits my process?
Aaron Equipment can provide available equipment information and help buyers review the unit based on heat-transfer area, metallurgy, pressure and temperature ratings, process connections, physical dimensions, and application requirements. Final process suitability should be confirmed for the specific product and operating conditions.
