Used APV 24" x 28' Stainless Steel Desulphurizing Column

MANUFACTURER INFORMATION
APV manufactures sanitary process equipment and systems used throughout food, beverage, dairy and related liquid-processing industries. Process columns of this type can be used for controlled stripping or removal of volatile compounds from compatible liquid streams through staged vapor-liquid contact.
PRODUCT DESCRIPTION

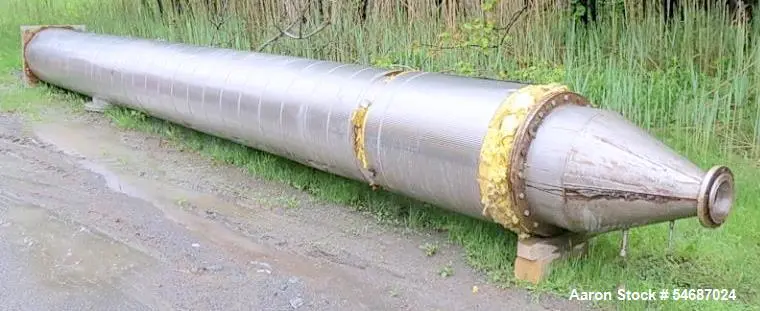

Used APV stainless steel desulphurizing column measuring approximately 24" diameter x 28' high and equipped with 15 valve trays. The system was designed for processing approximately 1,000 imperial gallons per hour of grape juice and was used to reduce sulphur dioxide concentration from approximately 1,550 ppm to 100 ppm. The valve-tray configuration provides multiple stages of vapor-liquid contact through the column during the desulphurization process. System includes a preheater shell-and-tube heat exchanger for conditioning the incoming process stream prior to treatment. Possible applications include sulphur dioxide removal and desulphurization of compatible grape juice and other suitable liquid food or beverage process streams.
SPECIFICATIONS

Manufacturer: APV

Equipment Type: Desulphurizing column

Construction: Stainless steel

Column Diameter: Approximately 24"

Column Height: Approximately 28'

Internal Trays: 15 valve trays

Original Process: Grape juice desulphurization

Original Design Capacity: Approximately 1,000 imperial gallons per hour

Inlet Sulphur Dioxide Concentration: Approximately 1,550 ppm

Outlet Sulphur Dioxide Concentration: Approximately 100 ppm

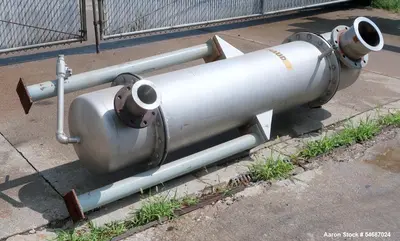

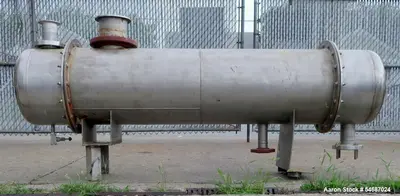

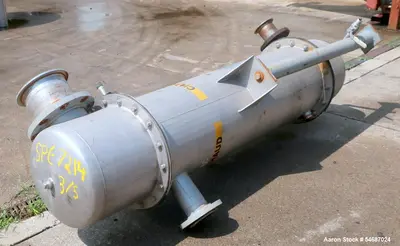

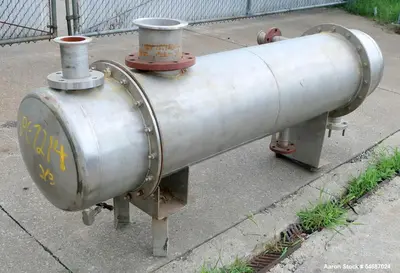

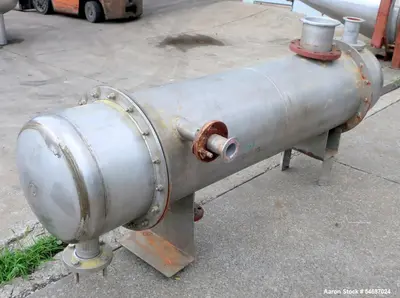

Included Preheater: Shell-and-tube heat exchanger

APPLICATIONS

Grape juice desulphurization

Sulphur dioxide removal

SO2 reduction

Beverage processing

Juice processing

Liquid-food treatment

Volatile compound stripping

Controlled vapor-liquid contacting

Process-stream conditioning

Food and beverage purification

Pre-treatment prior to downstream beverage processing

SUITABLE PRODUCTS / MATERIALS
Depending on product chemistry, temperature, flow rate and process requirements, this equipment may be suitable for:

Grape juice

Fruit juice

Juice concentrates

Beverage intermediates

Liquid food streams

Fermentation-related process liquids

Compatible aqueous food products

Other suitable liquid process streams requiring sulphur dioxide reduction or stripping

FAQ

WHAT IS THIS APV COLUMN USED FOR?
The system was designed for desulphurization and sulphur dioxide reduction of compatible liquid food and beverage streams.

WHAT WAS THE ORIGINAL PRODUCT?
The unit was used for processing grape juice.

WHAT WAS THE ORIGINAL PROCESS CAPACITY?
The system was designed for approximately 1,000 imperial gallons per hour.

HOW MUCH SULPHUR DIOXIDE WAS REMOVED?
The original process reduced sulphur dioxide concentration from approximately 1,550 ppm to approximately 100 ppm.

HOW MANY TRAYS ARE INSIDE THE COLUMN?
The column contains 15 valve trays.

WHAT SIZE IS THE COLUMN?
The column measures approximately 24" in diameter x 28' high.

WHAT DO THE VALVE TRAYS DO?
Valve trays provide multiple stages of vapor-liquid contact inside the column, helping promote transfer and removal of volatile compounds such as sulphur dioxide from the liquid stream.

DOES THE SYSTEM INCLUDE A PREHEATER?

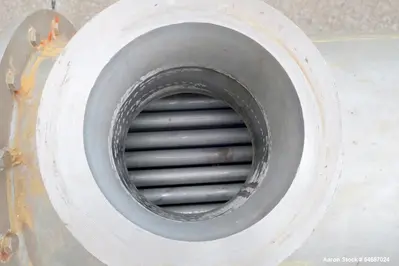

Yes. A shell-and-tube heat exchanger is included for preheating or conditioning the incoming process stream.

CAN THIS COLUMN BE USED FOR OTHER JUICE PRODUCTS?
It may be suitable for other compatible juice or beverage streams, depending on process chemistry, temperature, flow rate and required sulphur dioxide reduction.
