USED MIX SRL MXC2400

MANUFACTURER INFORMATION
Mix S.R.L. manufactures industrial mixing equipment for powders, granules and bulk solids, including horizontal plow mixers used in food, chemical, pharmaceutical and other process industries. Plow mixers use high-energy internal plows to move product through the mixing chamber, supporting rapid blending of compatible dry ingredients and bulk solids.
PRODUCT DESCRIPTION

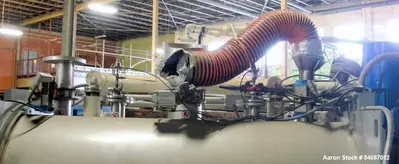

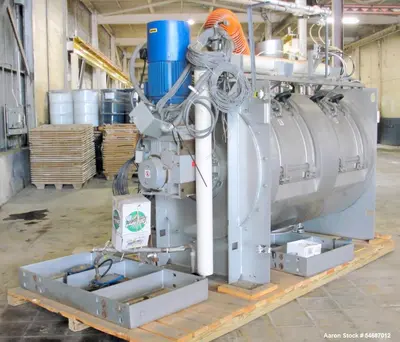

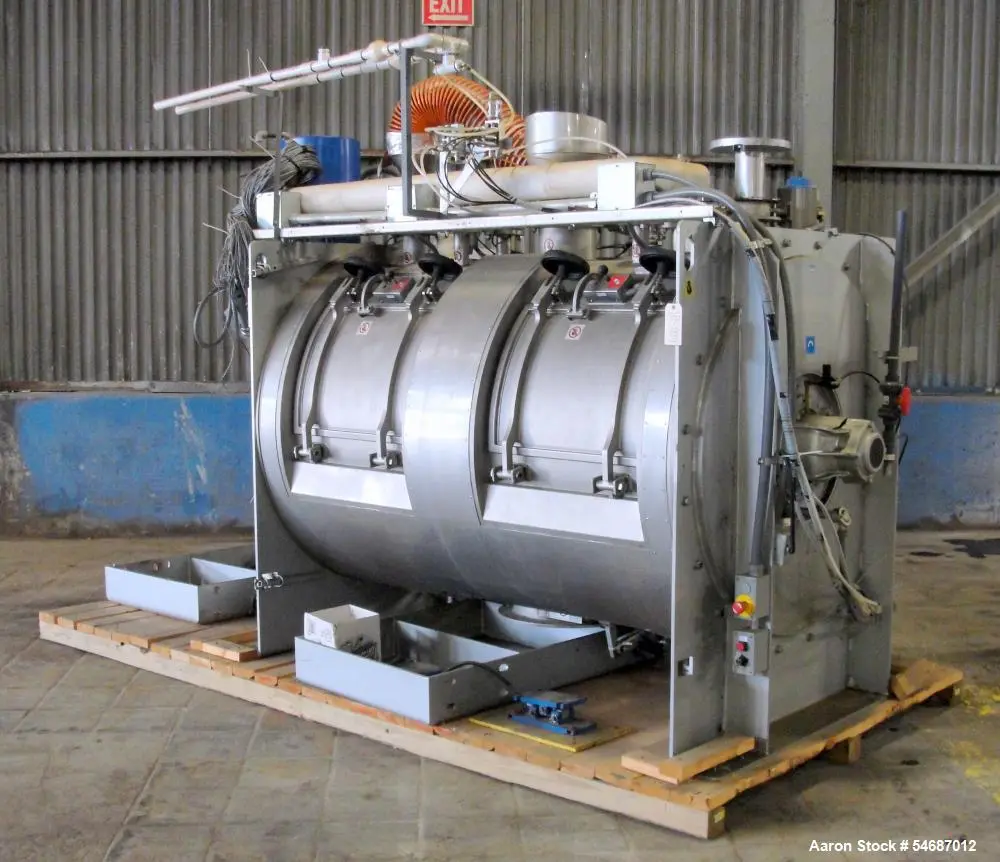

Used Mix S.R.L. Model MXC2400 horizontal plow mixer, Serial #C484, built 2006, with approximately 2,400-liter / 85 cu. ft. total capacity. Internal mixing chamber dimensions are approximately 47.24" ID x 80.71" long. Product-contact parts are stainless steel. The mixer is driven by a 30 HP motor rated 60 Hz, 480/830 VAC, 3-phase. This unit does not include choppers. The jacket is rated for 2 bar at approximately 4–38°C. The vessel includes two large side-access doors measuring approximately 23.62" x 19.68", a cylinder-operated 16" x 18" square bottom discharge, multiple sanitary and flanged process connections, and actuated butterfly valves serving filter connections. The mixer is mounted on four load cells for batch weighing. Bottom connections include two 2.5" tri-clamp nozzles and two 1" RFSP flanges. Additional connections include two 4" plate-flange nozzles with actuated butterfly valves, one 8" RFSO connection with actuated butterfly valve, four 2.5" RFSO top connections, one 1" RFSO top connection and two 2" RFSO connections on the back end. Possible applications include blending compatible powders, granules, dry ingredients and other bulk solid products.
SPECIFICATIONS

Manufacturer: Mix S.R.L.

Model: MXC2400

Equipment Type: Horizontal plow mixer

Serial Number: C484

Year: 2006

Total Capacity: Approximately 2,400 liters / 85 cu. ft.

Internal Diameter: Approximately 47.24"

Internal Length: Approximately 80.71"

Product-Contact Material: Stainless steel

Choppers: None

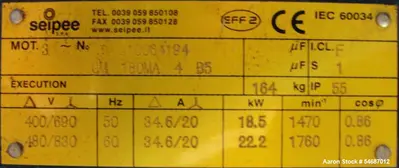

Drive Motor: 30 HP

Electrical: 480/830 VAC, 3-phase, 60 Hz

Jacket Rating: 2 bar

Jacket Temperature Range: Approximately 4–38°C

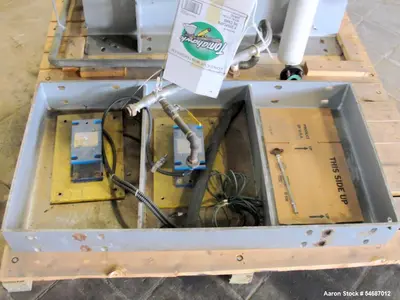

Load Cells: (4)

Side Access Doors: (2)

Side Door Size: Approximately 23.62" x 19.68"

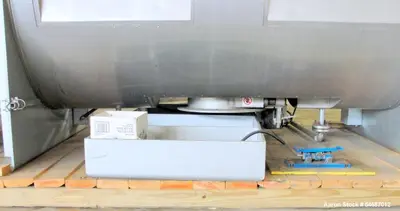

Bottom Discharge: Approximately 16" x 18" square

Discharge Operation: Cylinder actuated

Bottom Sanitary Connections: (2) 2.5" tri-clamp

Bottom Flanged Connections: (2) 1" RFSP

Filter Connections: (2) 4" plate-flange nozzles with actuated butterfly valves

Additional Middle Connection: (1) 8" RFSO with actuated butterfly valve

Top Connections: (4) 2.5" RFSO and (1) 1" RFSO

Rear Connections: (2) 2" RFSO

APPLICATIONS

Dry powder blending

Granule blending

Bulk solids mixing

Food ingredient blending

Chemical powder mixing

Pharmaceutical powder blending where equipment suitability is independently confirmed

Nutraceutical powder blending

Mineral blending

Dry premix production

Powder homogenization

Batch blending

Ingredient incorporation

Dry additive distribution

Bulk product conditioning

Blending processes requiring batch weight monitoring

Processes requiring jacketed temperature control

SUITABLE PRODUCTS / MATERIALS
Depending on bulk density, flowability, particle size and process requirements, this mixer may be suitable for products such as:

Food powders

Dry food ingredients

Seasoning blends

Flour-based mixes

Starches

Sugar-based blends

Salt blends

Nutraceutical powders

Vitamin blends

Mineral blends

Pharmaceutical powders where appropriate

Chemical powders

Specialty chemical blends

Detergent powders

Granulated products

Premixes

Dry additives

Fine powders

Free-flowing granules

Other compatible dry bulk solids

FAQ

WHAT IS THE CAPACITY OF THE MIX MXC2400?
The mixer has a stated total capacity of approximately 2,400 liters, equivalent to approximately 85 cubic feet.

WHAT ARE THE INTERNAL DIMENSIONS?
The internal mixing chamber measures approximately 47.24" inside diameter x 80.71" long.

WHAT MATERIAL ARE THE PRODUCT-CONTACT PARTS?
The product-contact parts are constructed of stainless steel.

DOES THE MIXER HAVE HIGH-SPEED CHOPPERS?
No. This MXC2400 is listed without choppers.

WHAT SIZE MOTOR DOES THE MIXER HAVE?
The mixer is driven by a 30 HP motor rated 480/830 VAC, 3-phase, 60 Hz.

IS THE MIXER JACKETED?
Yes. The vessel jacket is rated for approximately 2 bar at temperatures from 4–38°C.

DOES THE MACHINE HAVE LOAD CELLS?
Yes. The mixer is mounted on four load cells, which can support batch weighing when connected to an appropriate weighing system.

HOW DOES THE PRODUCT DISCHARGE?
The mixer has an approximately 16" x 18" square bottom discharge operated by a cylinder for opening and closing.

DOES THE MIXER HAVE ACCESS DOORS?
Yes. It has two large access doors measuring approximately 23.62" x 19.68".

WHAT ARE THE ACTUATED VALVES USED FOR?
The machine includes actuated butterfly valves on two 4" filter connections and one 8" RFSO connection. Exact process use should be confirmed from the original installation.

CAN AARON EQUIPMENT HELP DETERMINE IF THIS MIXER WILL WORK FOR MY PRODUCT?
Yes. Aaron Equipment can help review your product type, bulk density, batch size, mixing requirements, temperature-control needs and discharge requirements to determine whether this Mix S.R.L. MXC2400 may be suitable for your application.

CAN AARON EQUIPMENT ARRANGE SHIPPING?
Yes. Aaron Equipment can assist with freight, loading and shipping coordination for domestic or international destinations. Contact Aaron Equipment with your delivery location for shipping assistance.
