USED ALAR ENGINEERING 660

MANUFACTURER INFORMATION
Alar Engineering Corporation manufactures industrial wastewater treatment and solid/liquid separation equipment. Auto-Vac rotary vacuum drum filter systems are designed for continuous filtration, solids separation and dewatering of compatible wastewater, sludge, slurry and other water-based process streams.
PRODUCT DESCRIPTION

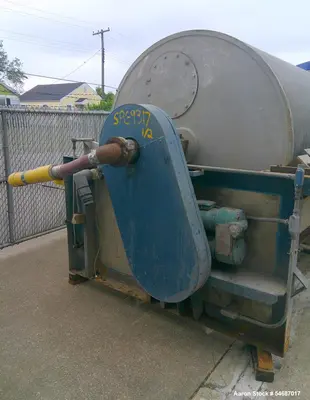

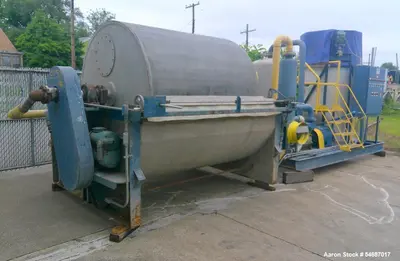

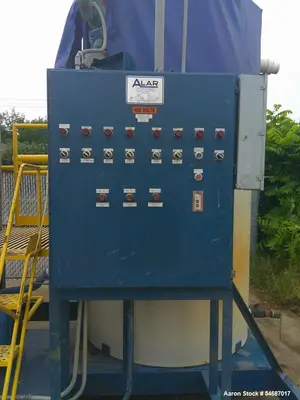

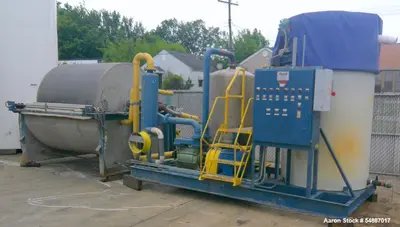

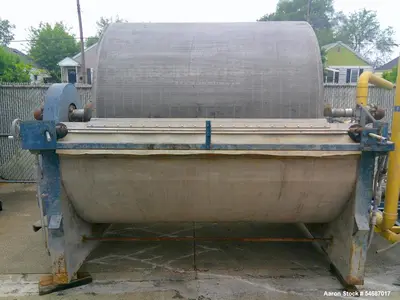

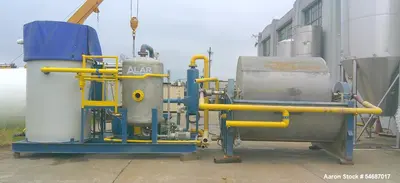

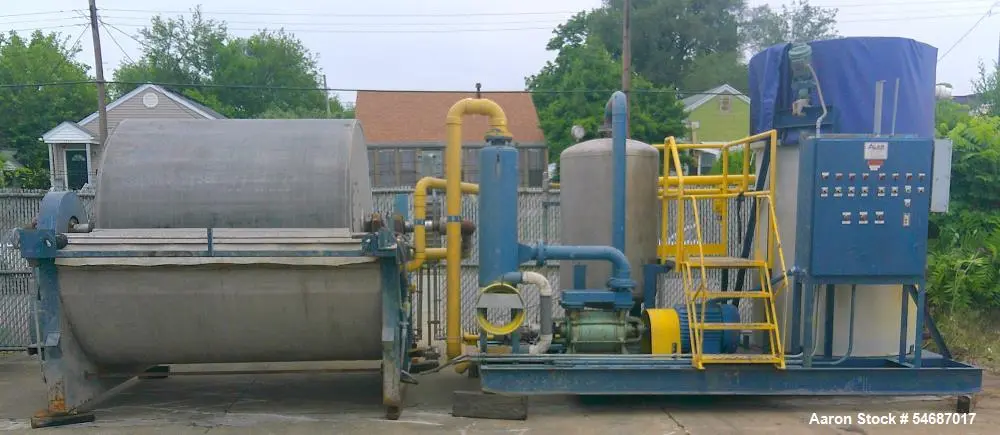

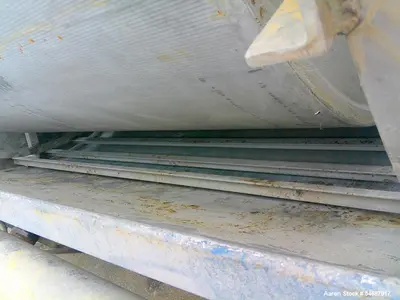

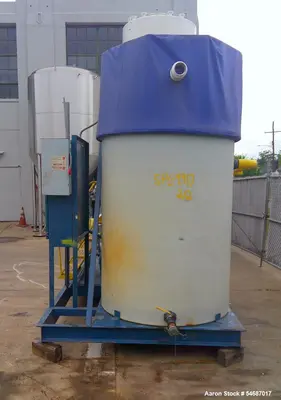

Used Alar Engineering Corporation Auto-Vac Model 660 rotary vacuum drum filter system, Serial #11667. The system is equipped with an approximately 6' diameter x 6' long stainless steel filter drum providing approximately 113 sq. ft. of filtration area. Actual drum dimensions are approximately 72" outside diameter x 75" long. The drum uses an automatic advancing knife discharge system for continuous removal of accumulated solids from the filter surface. Complete system includes receiver tank, pre-mix tank, 40 HP vacuum pump and control panel. Electrical requirements are 460 VAC, 3-phase and 120 VAC, 1-phase. Designed as an automatic self-cleaning filtration system for compatible water-based effluent streams, the Auto-Vac 660 may be suitable for industrial wastewater treatment, sludge dewatering, process-water clarification and continuous solid/liquid separation. Approximate filter drum skid dimensions are 118" wide x 152" long x 94" high. Approximate tank skid dimensions are 93" wide x 186" long x 112" high.
SPECIFICATIONS

Manufacturer: Alar Engineering Corporation

Series: Auto-Vac

Model: 660

Equipment Type: Rotary vacuum drum filter

Serial Number: 11667

Drum Construction: Stainless steel

Drum Diameter: Approximately 6' / 72"

Drum Length: Approximately 6' nominal / 75" actual

Filtration Area: Approximately 113 sq. ft.

Solids Discharge: Automatic advancing knife

Operation: Automatic / continuous

Cleaning: Self-cleaning filtration system

Vacuum Pump: 40 HP

Receiver Tank: Included

Pre-Mix Tank: Included

Control Panel: Included

Electrical Requirement: 460 VAC, 3-phase

Auxiliary Electrical Requirement: 120 VAC, 1-phase

Filter Skid Dimensions: Approximately 118" W x 152" L x 94" H

Tank Skid Dimensions: Approximately 93" W x 186" L x 112" H

Process Type: Solid/liquid separation

Intended Streams: Compatible water-based effluent streams

APPLICATIONS

Industrial wastewater treatment

Sludge dewatering

Process-water clarification

Solid/liquid separation

Continuous filtration

Wastewater solids removal

Slurry dewatering

Process effluent treatment

Suspended solids removal

Industrial water clarification

Pretreatment before downstream wastewater processing

Chemical process wastewater treatment

Food-process wastewater treatment where appropriate

Manufacturing effluent treatment

Water-based slurry filtration

SUITABLE PRODUCTS / MATERIALS
Depending on solids loading, particle size, chemistry and filter-media selection, this equipment may be suitable for processing streams such as:

Industrial wastewater

Process wastewater

Water-based sludge

Chemical sludge

Mineral slurries

Suspended-solids streams

Process-water solids

Food-processing wastewater where appropriate

Manufacturing effluent

Clarifier underflow

Precipitated solids

Water-based process slurries

Fine suspended solids

Other compatible liquid/solid mixtures requiring continuous filtration

FAQ

WHAT IS THE ALAR AUTO-VAC 660 USED FOR?
The Auto-Vac 660 is designed for continuous solid/liquid separation, wastewater filtration and sludge dewatering of compatible water-based effluent streams.

WHAT SIZE IS THE FILTER DRUM?
The drum is approximately 6' in diameter x 6' long, with actual dimensions of approximately 72" OD x 75" long.

HOW MUCH FILTRATION AREA DOES THE SYSTEM HAVE?
The drum provides approximately 113 square feet of filtration area.

HOW ARE SOLIDS REMOVED FROM THE DRUM?
The system uses an automatic advancing knife discharge mechanism to continuously remove accumulated solids from the filter surface.

DOES THE SYSTEM INCLUDE A VACUUM PUMP?

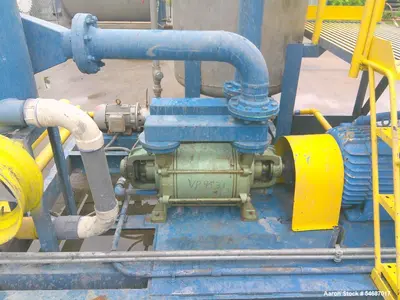

Yes. A 40 HP vacuum pump is included.

DOES IT INCLUDE TANKS?
Yes. The system includes a receiver tank and pre-mix tank.

IS THIS A CONTINUOUS FILTRATION SYSTEM?
Yes. The rotary drum and advancing knife arrangement are designed for continuous filtration and solids discharge.

WHAT POWER DOES THE SYSTEM REQUIRE?
The listed electrical requirements are 460 VAC, 3-phase and 120 VAC, 1-phase.

CAN THIS SYSTEM BE USED FOR SLUDGE DEWATERING?
Yes. Sludge dewatering is one of the potential applications, depending on solids characteristics, filter media and process conditions.

CAN IT BE USED FOR PROCESS-WATER CLARIFICATION?
Yes. The system may be suitable for clarification of compatible process-water streams containing suspended solids.

CAN AARON EQUIPMENT HELP DETERMINE IF THIS FILTER WILL WORK FOR MY WASTEWATER?
Yes. Aaron Equipment can help review your flow rate, solids concentration, particle size, slurry chemistry and dewatering objectives to determine whether this Alar Auto-Vac system may be suitable.

CAN AARON EQUIPMENT ARRANGE SHIPPING?
Yes. Aaron Equipment can assist with freight, loading and shipping coordination for domestic or international destinations. Contact Aaron Equipment with your delivery location for shipping assistance.
