Used Charlotte SD-40 40 HP 316 Stainless Steel Colloid Mill

MANUFACTURER INFORMATION
Chemicolloid Industries is known for Charlotte Colloid Mills used in food, pharmaceutical, cosmetic, chemical and other process applications. Charlotte colloid mills use high-speed rotor/stator action and an adjustable processing gap to generate intense shear for emulsification, homogenization, dispersion and particle-size reduction of compatible pumpable products.
PRODUCT DESCRIPTION

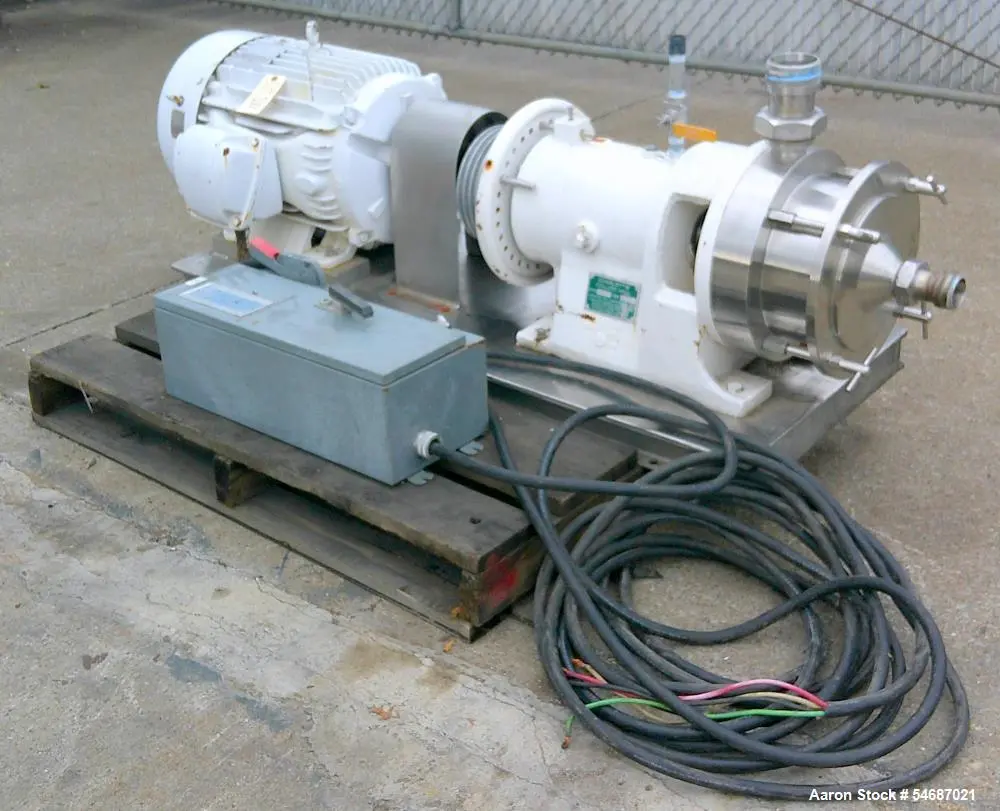

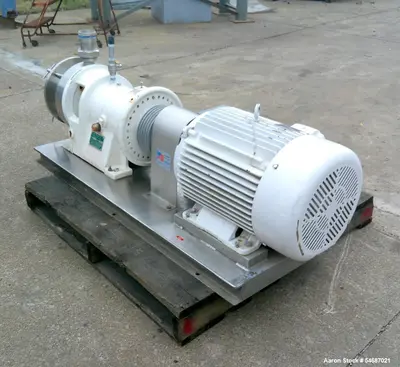

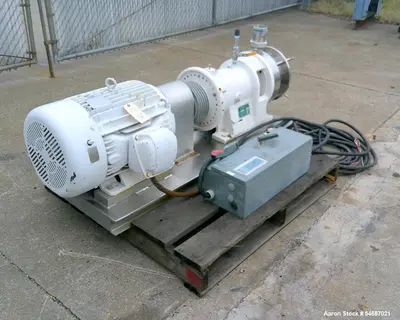

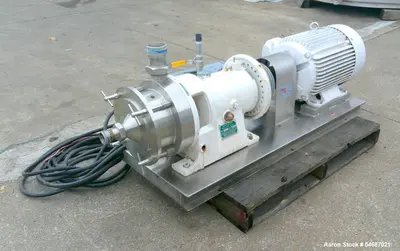

Used Chemicolloid Industries Charlotte Model SD-40 horizontal inline colloid mill, Serial #4211, constructed of Type 316 stainless steel for processing compatible pumpable slurry and liquid products. The unit is mounted on a common stainless steel base and driven by a 40 HP motor rated 230/460 VAC, 3-phase, 60 Hz at approximately 3,565 rpm. Rated production capacity is up to approximately 1,200 gallons per hour depending on product characteristics and processing conditions. The mill is equipped with an adjustable-gap rotor system for controlled high-shear processing and can provide partial particle-size reduction down to approximately 3–5 microns depending on the material, formulation and machine setup. Process connections are approximately 3" OD / 2" ID threaded fittings. Includes motor starter. Last used in the food industry. Possible applications include emulsification, homogenization, dispersion and particle-size reduction of compatible sauces, dressings, mayonnaise, syrups, purees, creams, lotions, suspensions, slurries and other pumpable food, cosmetic, pharmaceutical and chemical products.
SPECIFICATIONS

Manufacturer: Chemicolloid Industries

Brand / Product Line: Charlotte

Model: SD-40

Equipment Type: Horizontal inline colloid mill

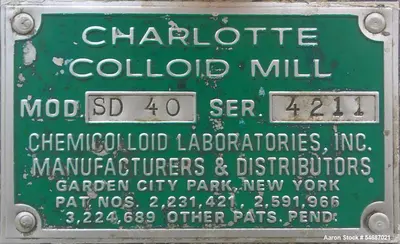

Serial Number: 4211

Material of Construction: Type 316 stainless steel

Processing Style: Inline high shear

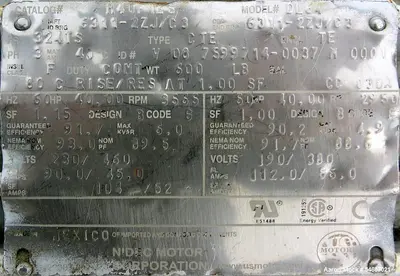

Drive Motor: 40 HP

Electrical Requirements: 230/460 VAC, 3-phase, 60 Hz

Motor Speed: Approximately 3,565 rpm

Maximum Published Production Rate: Up to approximately 1,200 gallons per hour

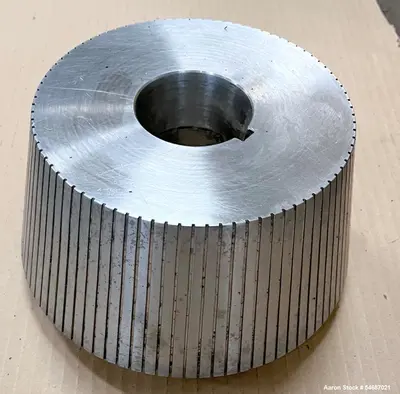

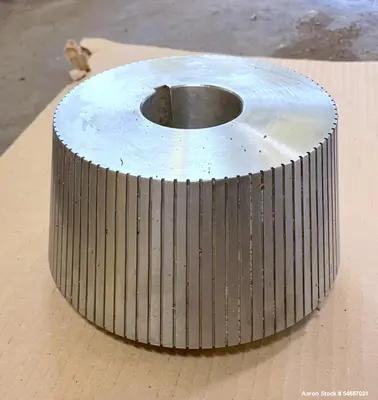

Rotor Configuration: Adjustable gap

Particle-Size Reduction: Partial reduction down to approximately 3–5 microns depending on product and setup

Process Connections: Approximately 3" OD / 2" ID threaded

Base: Stainless steel

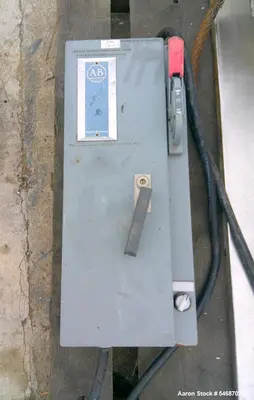

Motor Starter: Included

Previous Use: Food industry

APPLICATIONS

Emulsification

Homogenization

Dispersion

Particle-size reduction

High-shear inline mixing

Sauce processing

Dressing processing

Mayonnaise production

Syrup processing

Puree processing

Cream and lotion processing

Slurry conditioning

Suspension processing

Chemical dispersion

Pharmaceutical liquid processing

Cosmetic formulation

Food-processing applications

Continuous inline processing

SUITABLE PRODUCTS / MATERIALS
Depending on viscosity, particle size and process requirements, this mill may be suitable for products such as:

Sauces

Salad dressings

Mayonnaise

Mustard

Ketchup

Syrups

Purees

Food emulsions

Dairy-based products

Creams

Lotions

Cosmetic formulations

Pharmaceutical suspensions

Chemical suspensions

Slurries

Emulsions

Liquid concentrates

Pumpable pastes

Dispersions

Other compatible pumpable products requiring high-shear processing

FAQ

WHAT IS THE CHARLOTTE SD-40 USED FOR?
The SD-40 is a horizontal inline colloid mill designed for high-shear emulsification, homogenization, dispersion and particle-size reduction of compatible pumpable products.

WHAT MATERIAL IS THE MILL CONSTRUCTED FROM?
The unit is constructed of Type 316 stainless steel.

WHAT SIZE MOTOR DOES THE MILL HAVE?
The machine is driven by a 40 HP motor.

WHAT ELECTRICAL SERVICE DOES IT REQUIRE?
The motor requires 230/460 VAC, 3-phase, 60 Hz service.

HOW MUCH PRODUCT CAN THE MILL PROCESS?
The stated production rate is up to approximately 1,200 gallons per hour, depending on the product and operating conditions.

HOW FINE CAN THE PRODUCT BE REDUCED?
Depending on the material, process conditions and machine configuration, the mill can provide partial particle-size reduction down to approximately 3–5 microns.

HOW IS THE PARTICLE SIZE CONTROLLED?

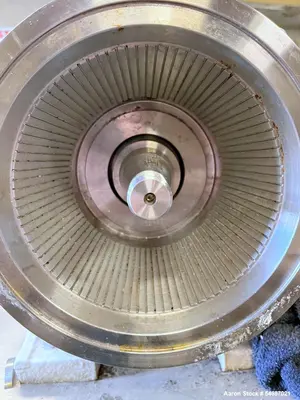

The mill uses an adjustable-gap rotor system that allows the processing gap to be set for the desired shear and product characteristics.

WHAT SIZE ARE THE PROCESS CONNECTIONS?
The process connections are approximately 3" OD / 2" ID threaded fittings.

WAS THE MILL USED IN A FOOD APPLICATION?
Yes. The unit was last used in the food industry.

DOES THE UNIT INCLUDE A MOTOR STARTER?
Yes. A motor starter is included.

CAN AARON EQUIPMENT HELP DETERMINE IF THIS COLLOID MILL WILL WORK FOR MY PRODUCT?
Yes. Aaron Equipment can help review your product viscosity, feed particle size, required finished particle size and desired throughput to determine whether this Charlotte SD-40 may be suitable for your application.

CAN AARON EQUIPMENT ARRANGE SHIPPING?
Yes. Aaron Equipment can assist with freight, loading and shipping coordination for domestic or international destinations. Contact Aaron Equipment with your delivery location for shipping assistance.
