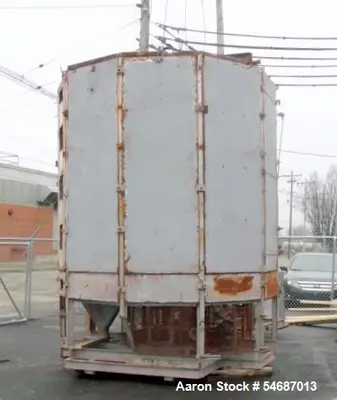

Used Wyssmont Turbo-Dryer 78" Rotary Tray Dryer

MANUFACTURER INFORMATION
Wyssmont manufactures industrial drying equipment including the Turbo-Dryer, a continuous vertical tray drying system used for controlled thermal processing of powders, granules, crystals, flakes, pellets and other compatible materials. Turbo-Dryers use vertically stacked rotating trays and stationary wipers to progressively move product downward through the dryer while heated air or gas circulates through the drying chamber.
PRODUCT DESCRIPTION
Used Wyssmont Turbo-Dryer rotary tray dryer equipped with 17 rows of 78" diameter rotating trays and stationary wipers for continuous product transfer through the drying chamber. The trays are approximately 19.25" wide and constructed of stainless steel and carbon steel, including some carbon steel replacement trays. The dryer is natural gas fired and includes the gas train and burner. Product enters through an approximately 15" x 4.75" top inlet and progressively moves from tray to tray before discharging through an approximately 5" x 15" bottom outlet with reducer. The dryer also has an approximately 21" x 33" exhaust outlet. The tray system is driven by a 3/4 HP, 1,750 rpm, 90 VDC motor with reducer. Approximate discharge height is 24" and overall dryer height is 155". System includes a cleated belt feed conveyor, natural gas train and burner. Possible applications include continuous controlled drying of compatible powders, crystals, granules, pellets, flakes and other suitable free-flowing or process materials.
SPECIFICATIONS

Manufacturer: Wyssmont

Equipment Type: Turbo-Dryer rotary tray dryer

Drying Configuration: Continuous vertical rotary tray

Number of Tray Rows: 17

Tray Diameter: Approximately 78"

Tray Width: Approximately 19.25"

Tray Construction: Stainless steel and carbon steel

Replacement Trays: Some carbon steel replacements

Product Transfer: Rotating trays with stationary wipers

Heat Source: Natural gas

Gas Train: Included

Burner: Included

Product Inlet: Approximately 15" x 4.75"

Bottom Discharge: Approximately 5" x 15" with reducer

Exhaust Outlet: Approximately 21" x 33"

Tray Drive Motor: 3/4 HP

Motor Speed: 1,750 rpm

Motor Voltage: 90 VDC

Drive: Motor with reducer

Approximate Discharge Height: 24"

Approximate Overall Height: 155"

Feed Conveyor: Cleated belt conveyor included

APPLICATIONS

Continuous thermal drying

Powder drying

Granule drying

Crystal drying

Pellet drying

Flake drying

Bulk solids drying

Controlled residence-time drying

Chemical product drying

Specialty chemical drying

Mineral drying

Food ingredient drying where materials and process are suitable

Drying of free-flowing solids

Moisture reduction of granular materials

Multi-stage vertical drying

Continuous process drying

Gentle product transfer during drying

SUITABLE PRODUCTS / MATERIALS
Depending on moisture content, particle size, thermal sensitivity, airflow requirements and tray configuration, this dryer may be suitable for products such as:

Chemical powders

Specialty chemicals

Crystals

Granules

Pellets

Flakes

Mineral products

Fine bulk solids

Free-flowing powders

Granulated materials

Drying intermediates

Specialty process materials

Food ingredients where equipment suitability is confirmed

Agricultural or feed materials where appropriate

Other compatible free-flowing solids requiring controlled continuous drying

FAQ

WHAT TYPE OF DRYER IS THE WYSSMONT TURBO-DRYER?
The Wyssmont Turbo-Dryer is a continuous vertical rotary tray dryer that uses stacked rotating trays and stationary wipers to progressively move product through the drying chamber.

HOW MANY TRAY LEVELS DOES THIS DRYER HAVE?
This unit is equipped with 17 rows of rotating trays.

WHAT SIZE ARE THE TRAYS?
The trays are approximately 78" in diameter and 19.25" wide.

WHAT ARE THE TRAYS MADE FROM?
The trays are constructed of stainless steel and carbon steel, with some carbon steel replacement trays.

HOW DOES PRODUCT MOVE THROUGH THE DRYER?
Product is deposited onto the upper rotating tray and is progressively moved by stationary wipers from one tray level to the next as it travels downward through the dryer.

WHAT IS THE HEAT SOURCE?
The dryer is natural gas fired and includes a gas train and burner.

WHAT SIZE IS THE PRODUCT INLET?
The top product inlet measures approximately 15" x 4.75".

WHAT SIZE IS THE PRODUCT DISCHARGE?
The bottom discharge measures approximately 5" x 15" and includes a reducer.

DOES THE SYSTEM INCLUDE A FEED CONVEYOR?
Yes. A cleated belt feed conveyor is included.

WHAT TYPES OF PRODUCTS CAN A ROTARY TRAY DRYER HANDLE?
Depending on process requirements, rotary tray dryers may be used for compatible powders, crystals, granules, pellets, flakes and other free-flowing or process materials.

CAN AARON EQUIPMENT HELP DETERMINE IF THIS DRYER WILL WORK FOR MY PRODUCT?
Yes. Aaron Equipment can help review your product characteristics, feed rate, inlet moisture, desired final moisture, thermal sensitivity and drying requirements to determine whether this Wyssmont Turbo-Dryer may be suitable for your process.

CAN AARON EQUIPMENT ARRANGE SHIPPING?
Yes. Aaron Equipment can assist with freight, loading and shipping coordination for domestic or international destinations. Contact Aaron Equipment with your delivery location for shipping assistance.
